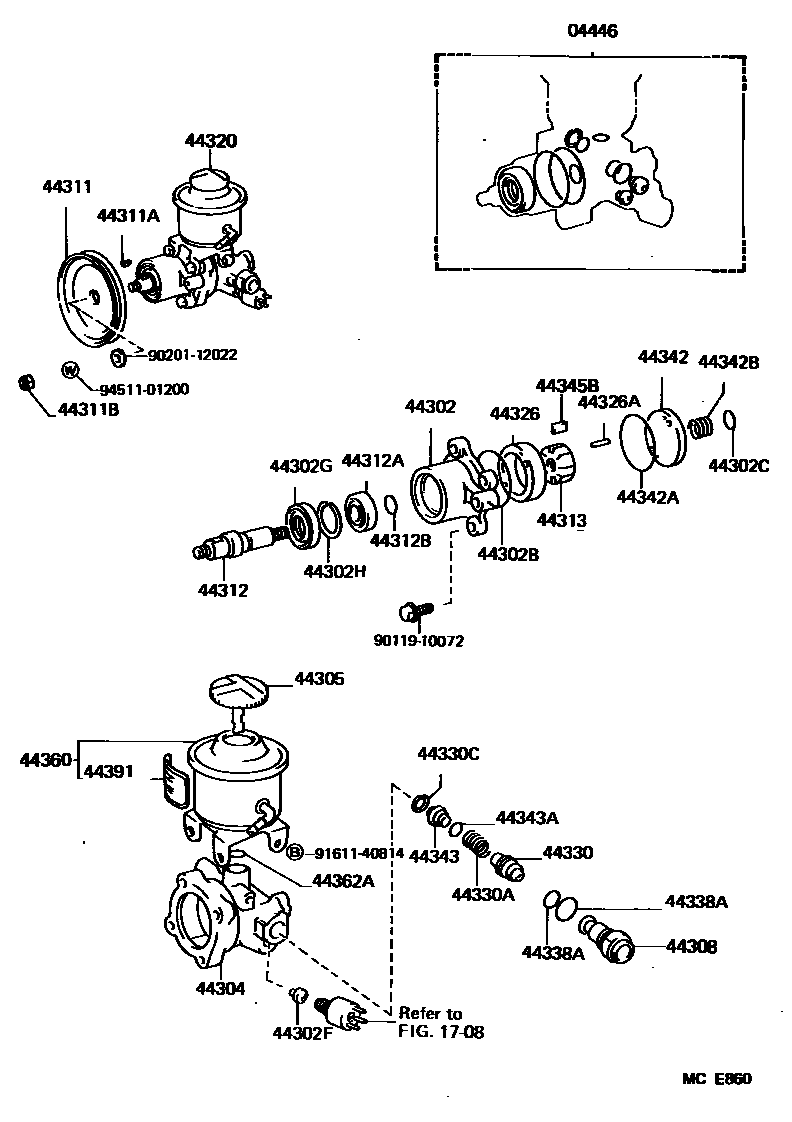

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-14010iYH50,52,6#..03S198708-198908

sub04446-14040

main04446-30030iLH51,61..03S198708-198908

1708

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-14010iYH50,52,6#..03S198708-198908

main44302-22020iLH51,61..03S198708-198908

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iLH51,61,YH50,52,6#..03S198708-198908

44302CRING, O, NO.2(FOR VANE PUMP HOUSING)

main96711-19016iLH51,61,YH50,52,6#..03S198708-198908

44302FSEAT, UNION(FOR VANE PUMP HOUSING)

main90410-05035iYH50,52,6#..03S198708-198908

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-24001iLH51,61,YH50,52,6#..03S198708-198908

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-44002iLH51,61,YH50,52,6#..03S198708-198908

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-28012iYH50,52,6#..03S198708-198908

main44304-30051iLH51,61..03S198708-198908

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iLH51,61,YH50,52,6#..03S198708-198908

sub44305-22040

44308UNION SUB-ASSY, PRESSURE PORT

main44308-26011iLH51,61,YH50,52,6#..03S198708-198908

44311PULLEY, VANE PUMP

main44311-12010iYH50,52,6#..03S198708-198908

main44311-30040iLH51,61..03S198708-198908

44311AKEY, VANE PUMP PULLEY

main90280-05008iLH51,61,YH50,52,6#..03S198708-198908

44311BNUT(FOR VANE PUMP PULLEY)

main90170-12011iLH51,61,YH50,52,6#..03S198708-198908

44312SHAFT, VANE PUMP

main44312-12010iLH51,61,YH50,52,6#..03S198708-198908

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17004iLH51,61,YH50,52,6#..03S198708-198908

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-15001iLH51,61,YH50,52,6#..03S198708-198908

44313ROTOR, VANE PUMP

main44313-12010iLH51,61,YH50,52,6#..03S198708-198810

sub44313-22040

main44313-12020iLH51,61,YH50,52,6#..03S198708-198810

sub44313-22050

main44313-12030iLH51,61,YH50,52,6#..03S198708-198810

sub44313-22060

main44313-12040iLH51,61,YH50,52,6#..03S198708-198810

sub44313-22070

main44313-12050iLH51,61,YH50,52,6#..03S198708-198810

sub44313-22080

main44313-22040iLH51,61,YH50,52,6#..03S198810-198908

main44313-22050iLH51,61,YH50,52,6#..03S198810-198908

main44313-22060iLH51,61,YH50,52,6#..03S198810-198908

main44313-22070iLH51,61,YH50,52,6#..03S198810-198908

main44313-22080iLH51,61,YH50,52,6#..03S198810-198908

44320PUMP ASSY, VANE

main44320-26011iYH50,52,6#..03S198708-198908

main44320-26040iLH51,61..03S198708-198908

main44320-26050iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

44326RING, CAM(FOR VANE PUMP)

main44325-12010iLH51,61,YH50,52,6#..03S198708-198908

main44325-12020iLH51,61,YH50,52,6#..03S198708-198908

main44325-12030iLH51,61,YH50,52,6#..03S198708-198908

main44325-12040iLH51,61,YH50,52,6#..03S198708-198908

main44325-12050iLH51,61,YH50,52,6#..03S198708-198908

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-05008iLH51,61,YH50,52,6#..03S198708-198908

44330VALVE ASSY, FLOW CONTROL

main44330-12130iLH51,61..03S198708-198908

sub44330-12131

main44330-12140iLH51,61..03S198708-198908

sub44330-12141

main44330-12150iLH51,61..03S198708-198908

sub44330-12151

main44330-12160iLH51,61..03S198708-198908

sub44330-12161

main44330-12170iLH51,61..03S198708-198908

sub44330-12171

main44330-12180iLH51,61..03S198708-198908

sub44330-12181

main44330-14010iYH50,52,6#..03S198708-198908

sub44330-20010

main44330-14020iYH50,52,6#..03S198708-198908

sub44330-20020

main44330-14030iYH50,52,6#..03S198708-198908

sub44330-20030

main44330-14040iYH50,52,6#..03S198708-198908

sub44330-20040

main44330-14050iYH50,52,6#..03S198708-198908

sub44330-20050

main44330-14060iYH50,52,6#..03S198708-198908

sub44330-20060

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iLH51,61,YH50,52,6#..03S198708-198908

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iLH51,61,YH50,52,6#..03S198708-198908

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-22001iLH51,61,YH50,52,6#..03S198708-198908

main96711-19014iLH51,61,YH50,52,6#..03S198708-198908

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iLH51,61,YH50,52,6#..03S198708-198908

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-53002iLH51,61,YH50,52,6#..03S198708-198908

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-23014iLH51,61,YH50,52,6#..03S198708-198908

44343SEAT, FLOW CONTROL SPRING

main44343-12010iLH51,61..03S198708-198908

main44343-12040iYH50,52,6#..03S198708-198908

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iLH51,61,YH50,52,6#..03S198708-198908

44345BPLATE, VANE PUMP

main44345-12010iLH51,61,YH50,52,6#..03S198708-198908

main44345-12020iLH51,61,YH50,52,6#..03S198708-198908

main44345-12030iLH51,61,YH50,52,6#..03S198708-198908

main44345-12040iLH51,61,YH50,52,6#..03S198708-198908

main44345-12050iLH51,61,YH50,52,6#..03S198708-198908

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-26010iYH50,52,6#..03S198708-198908

main44360-26011iLH51,61,71..CTM,DX,GL,SCL,SCM,SGL198708-198908

main44360-26040iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main96711-19013iLH51,61,YH50,52,6#..03S198708-198908

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-12010iLH51,61..03S198708-198908

main44391-14010iYH50,52,6#..03S198708-198908

9011910072

main90119-10072

9020112022

main90201-12022

9161140814

main91611-40814

9451101200

main94511-01200

38 parts on this diagram · 3 diagrams in section
