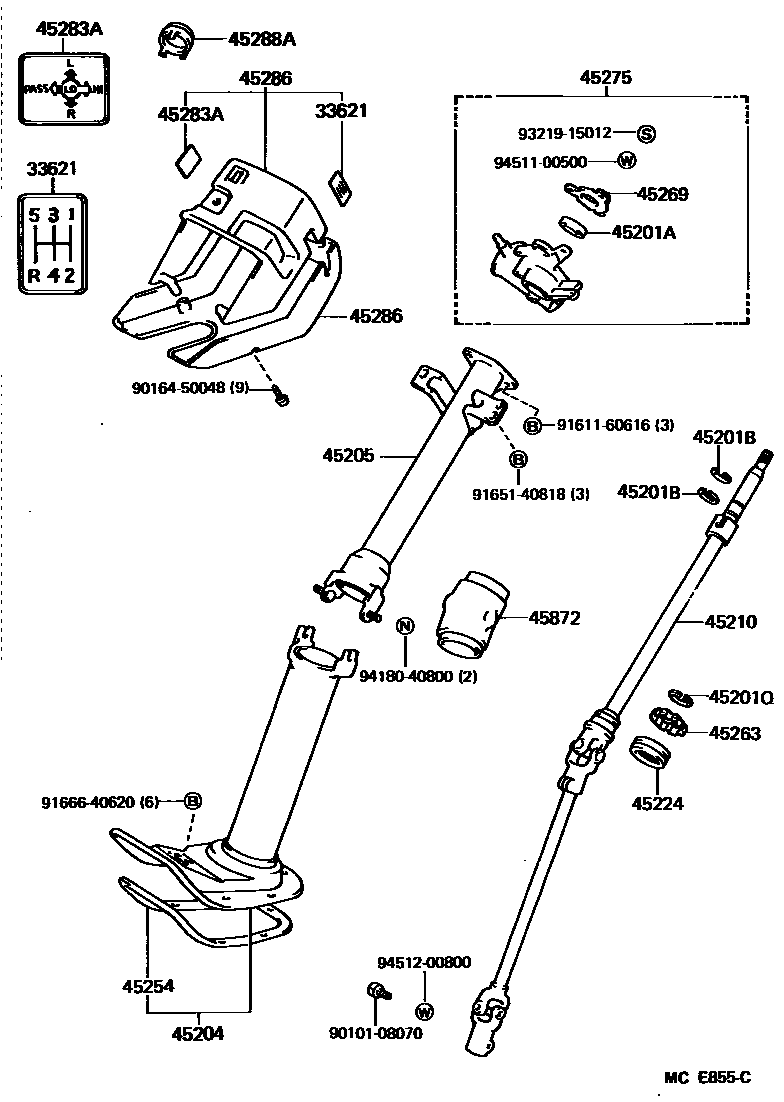

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36020iLH51,61,71,YH50,51,52,6#,71..5H198708-198908

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90520-17269iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

45201QRING(FOR STEERING COLUMN RING)

main96152-00300iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-26010iLH66..DX..08S;LH5#,6#,71,YH50,51,61..(DX,GL)..(05S,10S)198708-198908

main45204-26020iLH51,61,71,YH50,51,52,6#,71..4HC,5H198708-198908

main45204-26041iLH51,6#,YH51,57..SCL,SCM,SGL198708-198908

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-26081iLH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S)198708-198908

main45205-26100iLH51,6#,YH51,57..SCL,SCM,SGL198708-198908

45210SHAFT ASSY, STEERING MAIN

main45210-26010iLH51,61,YH50,52,6#..03S198708-198908

main45210-26020iLH51,61,YH50,52,6#..03S198708-198908

main45210-26040iLH56,YH57;LH66..05S;LH66..(DX,SGL)..08S198708-198908

45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)

main45225-26010iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

45254SHIELD, STEERING COLUMN HOLE

main45254-26050iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

45263RING, STEERING COLUMN, NO.1

main45263-32010iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

45269RETAINER, MAIN SHAFT BEARING

main45269-35010iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

45275BRACKET, STEERING COLUMN, UPPER

main45307-26071iYH61,71..10S,15S;YH51,52,57,62..03S,08S,09S198708-198908

sub45307-26100

main45307-26071iLH66..V4D..DX..05S198708-198908

sub45307-26100

main45307-26081iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71..CD,CTM,DX,GL,SCM,SGL198708-198908

main45307-26100iLH51,YH51..07S198708-198908

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

45286COVER, STEERING COLUMN

main45023-26142-04iLH51,61,YH51,61..5H..(CTM,GL)198708-198908

sub45023-26142

main45023-26142-06iLH61,YH61..5H..(CD,DX);LH51,71,YH50,51,52,62,71..5H..(CD,DX,GL)198708-198908

sub45023-26142

main45286-26152-04iLH51,YH51..4HC..09S198708-198908

main45286-26152-06iLH51,61,YH61..4HC..06S198708-198908

main45286-26181-04iLH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..(GL,SCM,SGL)..(05S,08S)198708-198908

main45286-26181-06iLH5#,6#,71,YH51,57,61..(4FC,5F)..(DX,SCL,SCM)198708-198908

main45287-26091-14iLH51,61,YH51,61..(CTM,GL)..09S198708-198908

sub45287-26091

main45287-26091-16iLH61,YH61..(4HC,5H)..(CD,DX);LH51,71,YH50,51,52,62,71..(4HC,5H)..(CD,DX,GL)198708-198908

sub45287-26091

main45287-26111-04iLH66..SGL..08S;LH61,YH61..05S,10S;LH66..(GL,SGL)..05S;LH5#,YH50,51,57..GL,SCM,SGL198708-198908

sub45287-26111

main45287-26111-06iLH5#,6#,71,YH51,57,61..(4FC,5F)..(DX,SCL,SCM)198708-198908

sub45287-26111

45288ASPACER, COLUMN COVER

main45288-32020iLH66..DX..08S;LH5#,6#,71,YH50,51,61..(DX,GL)..(05S,10S)198708-198908

45872COVER, STEERING COLUMN TUBE

main45872-26010iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

9010108070

main90101-08070

9016450048

main90164-50048

9161160616

main91611-60616

9165140818

main91651-40818

9166640620

main91666-40620

9321915012

main93219-15012

9418040800

main94180-40800

9451100500

main94511-00500

9451200800

main94512-00800

25 parts on this diagram · 5 diagrams in section
