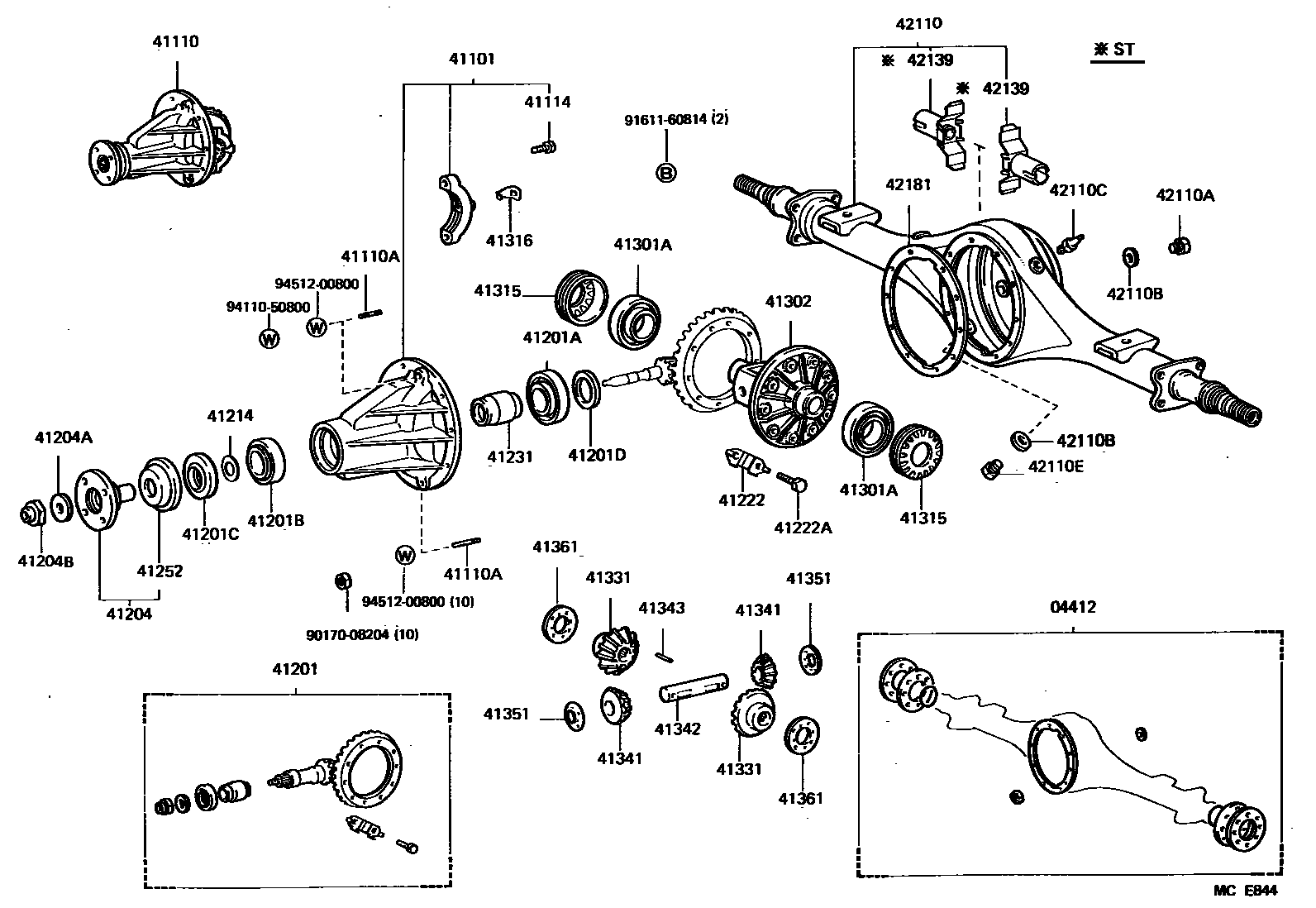

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-25060iLH56,YH57;LH66..05S;LH66..(DX,SGL)..08S198708-198908

main04412-26010iLH51,61,71,YH50,51,52,6#,71..ST198708-198908

main04412-26020iLH61,YH61..WT198708-198908

sub04412-26021

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-35030iYH51..WG;YH50,52,6#,71..4HC,5F,5H198708-198905

sub90116-08329

main41101-35031iYH51..WG;LH61..4HC..WT;YH61..4HC,5F,5H;LH51,61,71,YH50,52,62,71..MTM198905-198908

main41101-35040iLH51..ATM198708-198905

sub90116-08329

main41101-35041iLH56,66,YH51..05S;LH51,61,YH61..ATM..ST;LH66,YH57..(DX,SCM,SGL)..08S198905-198908

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-25082iLH61..5H..WT198708-198905

sub90116-08329

sub90116-08334

main41110-25083iLH61..5H..WT198905-198908

sub41110-35411

main41110-25130iYH61..5H..WT198708-198905

sub90116-08329

sub90116-08334

main41110-25131iYH61..5H..WT198905-198908

sub41110-35481

main41110-26071iYH57198708-198905

sub90116-08329

sub90116-08334

main41110-26072iYH57198905-198908

sub41110-35332

main41110-26100iLH56198708-198905

sub90116-08329

sub90116-08334

main41110-26101iLH56,66..05S;LH66..(DX,SGL)..08S198905-198908

sub41110-26650

main41110-26110iLH56198708-198905

sub90116-08329

sub90116-08334

main41110-26111iLH56,66..05S;LH66..(DX,SGL)..08S198905-198908

sub41110-35B00

main41110-35044iLH51,61..ATM..ST..DSL198708-198905

sub90116-08329

sub90116-08334

main41110-35045iLH51,61..ATM..ST..DSL198905-198908

main41110-35083iYH57;LH51..ATM..TD;YH51,61..4FC..05S198708-198905

sub41110-35084

sub90116-08329

main41110-35162iYH51..MTM;YH61..(4HC,5F)..DX198905-198908

sub41110-35202

main41110-35172iLH51,61,71..WG..MTM;YH52,6#,71..(COM,V)..MTM..ST198905-198908

sub41110-35212

main41110-35182iLH61..4HC..WT;YH51..WG..ATM;LH51,61,71,YH50..(COM,V)..MTM..ST198905-198908

sub41110-35222

main41110-35192iYH57;LH51..ATM..TD;YH51,61..4FC..05S198905-198908

sub41110-35084

main41110-35201iYH61..4HC198708-198905

sub41110-35202

sub90116-08329

main41110-35211iLH51,61,71..WG..MTM;YH52,6#,71..(COM,V)..MTM..ST198708-198905

sub41110-35212

sub90116-08329

main41110-35221iLH61..4HC..WT;YH51..WG..ATM;LH51,61,71,YH50..(COM,V)..MTM..ST198708-198905

sub41110-35222

sub90116-08329

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08179×8iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198808

main90116-08180×2iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90116-08285×8iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198808-198908

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053×4iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29675iYH61..5H..WT198708-198908

sub41201-29655

main41201-29735iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

sub41201-29736

sub41204-35081

sub41214-26011

main41201-29775iLH61..5H..WT198708-198908

sub41201-29517

sub41204-35081

sub41214-26011

main41201-29785iYH51..MTM;YH61..(4HC,5F)..DX198708-198908

sub41201-39677

sub41204-35081

sub41214-26011

main41201-29795iYH50..06S198708-198808

sub41201-29796

sub41204-35081

sub41214-26011

main41201-29805iLH61..4HC..WT;YH51..WG..ATM;LH51,61,71,YH50..(COM,V)..MTM..ST198708-198908

sub41201-29537

sub41204-35081

sub41214-26011

main41201-29815iYH57;LH51..ATM..TD;YH51,61..4FC..05S198708-198908

sub41201-29816

main41201-29825iLH51,61..ATM..ST..DSL198708-198908

sub41201-29826

sub41204-35081

sub41214-26011

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35044iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

sub90366-30078

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38133iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35498iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35499iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35500iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35501iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35502iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35503iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35504iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35505iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35506iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35507iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35508iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35509iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35510iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35511iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35512iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35513iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35514iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35515iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35516iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35517iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90201-35518iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35040iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-20005iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

41204BNUT (FOR REAR DRIVE PINION)

main90179-20001iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020×5iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353×10iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-40011iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-35010iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

sub41252-35020

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-45066×2iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90368-50024×2iYH57198708-198908

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-35010iYH57198708-198908

sub41302-35040

main41311-40020iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

sub41311-40021

sub90105-11063

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-35010×2iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010×2iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-35011×2iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main41331-35030×2iYH57198708-198908

sub41039-34070

41341PINION, REAR DIFFERENTIAL

main41341-30020×4iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

sub41341-30050

main41341-35010×4iYH57198708-198908

sub41341-14041

main41341-35020×2iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-39610iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06085iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30052×2iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main41351-30060×4iYH57198708-198908

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-40021×2iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main41362-40021×2iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main41363-40021×2iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main90564-50001iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

main90564-50002iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

main90564-50003iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

main90564-50004iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

main90564-50005iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

42110HOUSING ASSY, REAR AXLE

main42110-26151iLH61,71,YH61..ST;LH51,YH50,51,52,62,71..COM,V198708-198908

main42110-26161iLH66..V4D..DX..05S198708-198908

main42110-26171iLH61,YH61..WT198708-198908

main42110-26182iLH51,YH51,57..WG198708-198908

main42110-26220iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010×2iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42139-40010×2iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..ST198708-198908

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-60020iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

9017008204

main90170-08204

9161160814

main91611-60814

9411050800

main94110-50800

9451200800

main94512-00800

39 parts on this diagram · 2 diagrams in section
