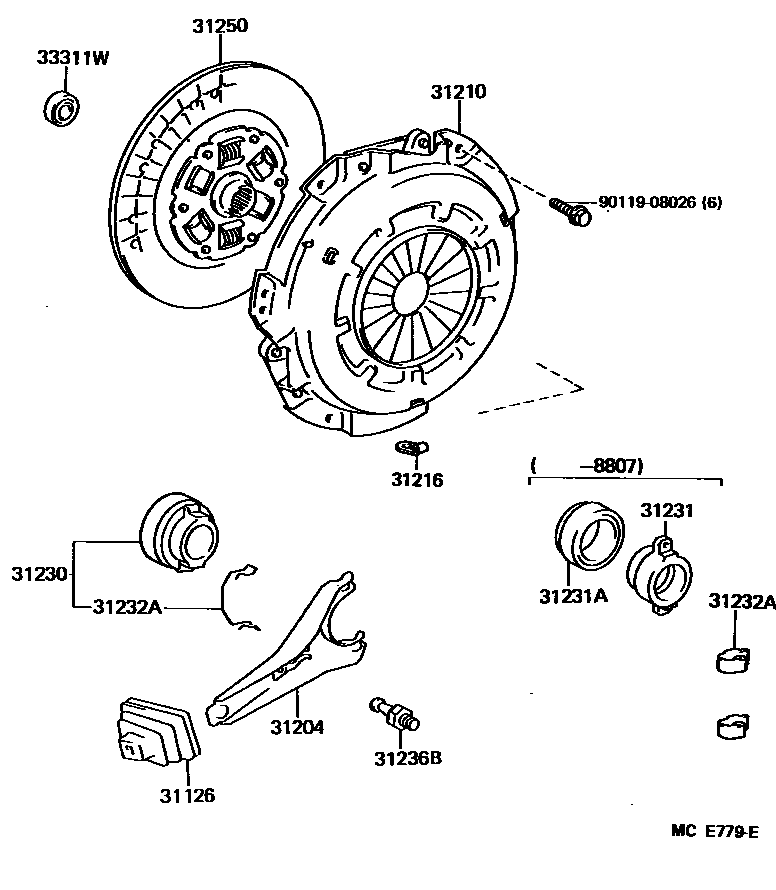

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iLH66..05S;LH66..(DX,SGL)..08S;LH56,YH5#,6#,71..MTM198708-198908

main31126-20070iLH51,61,71..MTM198708-198908

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iYH50,51,52,6#,71..MTM198708-198908

main31204-20090iLH51,61,71..MTM198708-198807

main31204-35030iLH56,YH57;LH66..05S;LH66..(DX,SGL)..08S198708-198805

main31204-35031iLH56,YH57;LH66..05S;LH66..(DX,SGL)..08S198806-198908

main31204-35050iLH51,61,71..MTM198807-198908

31210COVER ASSY, CLUTCH

main31210-14130iLH66..05S;LH66,YH61..(DX,SGL)..(08S,10S);LH5#,61,71,YH51,57..MTM..(CBR,DSL)198708-198808

main31210-22120iYH50198812-198908

sub31210-22121

main31210-24010iLH51..5F..TD198708-198808

sub31210-24011

main31210-26050iYH52,6#,71..(COM,V)..MTM198708-198908

sub31210-30231

main31210-26070iYH50198708-198808

sub31210-22121

main31210-35080iYH50198808-198812

main31210-35090iLH66..05S;LH66,YH61..(DX,SGL)..(08S,10S);LH5#,61,71,YH51,57..MTM..(CBR,DSL)198808-198908

sub31210-22100

main31210-35100iLH51..5F..TD198808-198908

sub31210-35101

31216SPRING, CLUTCH RETRACTING

main31216-14010×3iYH50..06S198708-198808

main31216-30010×3iLH66..05S;LH5#,61,71,YH50,51,57..MTM;LH66,YH61..(DX,SGL)..(08S,10S)198708-198908

31230BEARING ASSY, CLUTCH RELEASE

main31230-35070iLH56,YH57;LH66..05S;LH66..(DX,SGL)..08S198803-198807

sub31230-35071

main31230-35090iYH50,51,52,6#,71..MTM198807-198908

sub31230-35091

31231HUB, CLUTCH RELEASE BEARING

main31231-20090iLH51,61,71..MTM198708-198807

main31231-35030iLH56,YH57;LH66..05S;LH66..(DX,SGL)..08S198708-198803

main31231-36070iYH50,51,52,6#,71..MTM198708-198807

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iLH51,61,71,YH50,51,52,6#,71..MTM198803-198807

31232ACLIP, RELEASE BEARING HUB

main31232-22010×2iLH51,61,71,YH50,51,52,6#,71..MTM198708-198807

main31232-35010iLH56,YH57;LH66..05S;LH66..(DX,SGL)..08S198708-198803

main31232-35020iLH56,YH57;LH66..05S;LH66..(DX,SGL)..08S198803-198908

NSK BEARING

main31232-35030iLH51,61,71..MTM198807-198908

NACHI BEARING

31236BSUPPORT, RELEASE FORK

main31236-30060iLH51,61,71,YH50,51,52,6#,71..MTM198708-198908

main31236-35030iLH56,YH57;LH66..05S;LH66..(DX,SGL)..08S198708-198908

31250DISC ASSY, CLUTCH

main31250-25122iYH61..10S;YH50,51..MTM198708-198908

sub31250-20240

main31250-26051iLH51,61,71..MTM..DSL198708-198801

main31250-26052iLH51,61,71..MTM..DSL198801-198908

sub31250-26053

main31250-26062iYH52,6#,71..(COM,V)..MTM198708-198908

sub31250-30381

main31250-26101iLH51..5F..TD198708-198712

main31250-26102iLH51..5F..TD198712-198805

main31250-26103iLH51..5F..TD198805-198908

sub31250-26104

main31250-26130iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

sub31250-26131

main31250-26140iYH57198708-198908

sub31250-14171

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM198708-198908

sub90363-12024

9011908026

main90119-08026

12 parts on this diagram · 2 diagrams in section
