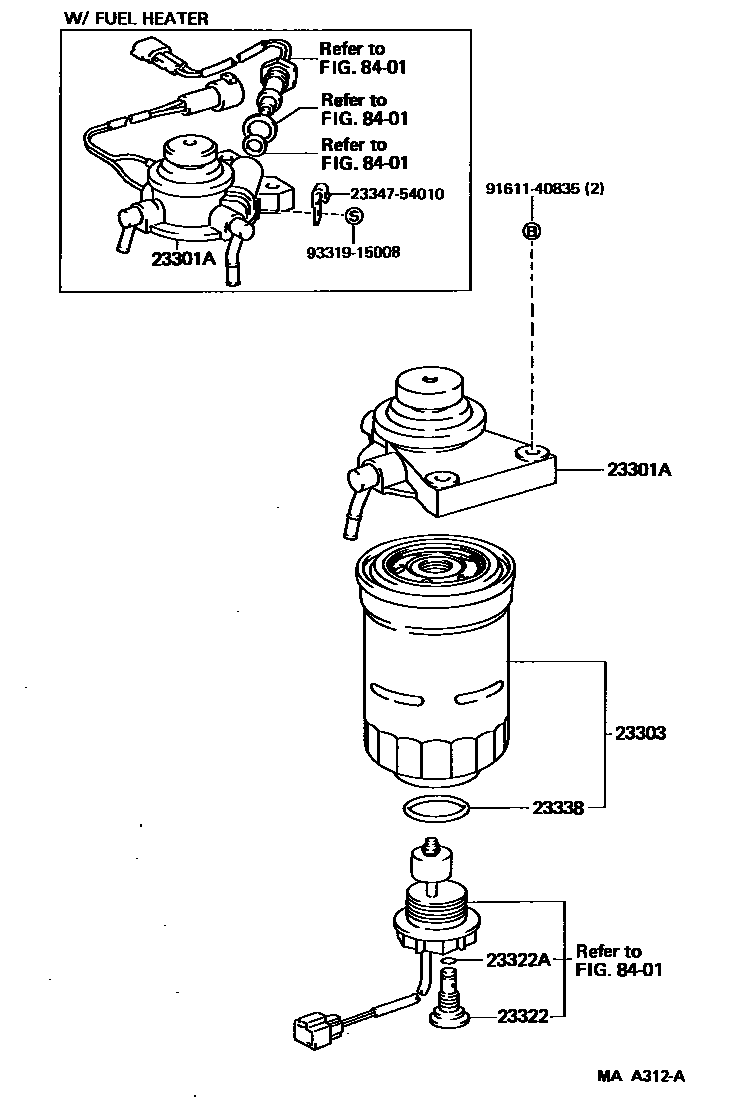

FUEL FILTER

0001 1 0002 1

23301ACAP ASSY, FUEL FILTER

main23301-54190i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

main23301-54250i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

8401

2334754010CLIP, CORD

main23347-54010

9161140835

main91611-40835

9331915008

main93319-15008

9 parts on this diagram · 2 diagrams in section
