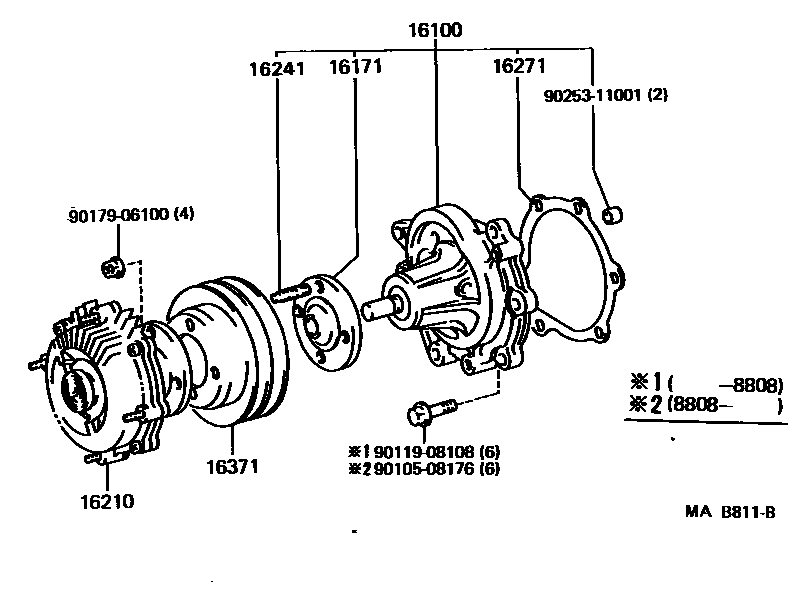

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-59137i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

sub16100-59138

main16100-79036i2Y,3Y#..YH5#,6#,71198708-198908

sub16100-79037

16171SEAT, WATER PUMP PULLEY

main16171-54011i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

16210COUPLING ASSY, FLUID

main16210-31010i2Y,3Y#..YH5#,6#,71198708-198908

main16210-54070i2L..LH66..(DX,SGL)..08S;2L..LH56,66,71..05S,06S,09S,10S,15S198708-198908

main16210-54080i2L..LH51..4HC..09S198708-198801

sub16210-54090

main16210-54090i2L..LH51..4HC..09S198708-198908

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-13020i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

main16193-71010i2Y,3Y#..YH5#,6#,71198708-198908

16271GASKET, WATER PUMP

main16271-54012i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

sub16271-54013

16371PULLEY, FAN

main16371-54020i2L..LH66..05S;2L..LH66..(DX,SGL)..08S;2L#..LH5#,61,71..CD,CTM,DX,GL,SCL,SCM198708-198908

main16371-73011i2Y,3Y#..YH5#,6#,71198708-198908

9010508176

main90105-08176

9011908108

main90119-08108

9017906100

main90179-06100

9025311001

main90253-11001

10 parts on this diagram · 2 diagrams in section
