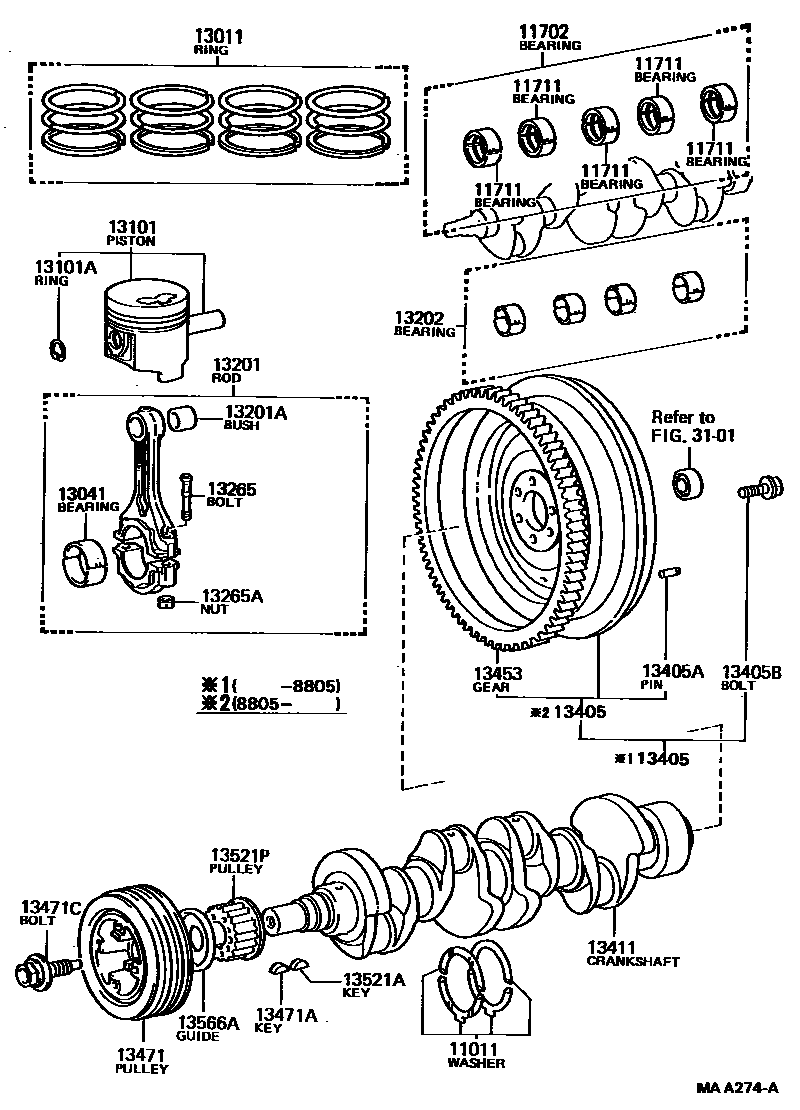

CRANKSHAFT & PISTON

0001 1 0002 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-25010i2Y,3Y#..YH5#,6#,71198708-198908

main11011-54010i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198808

main11011-54020i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198808-198908

main11012-54010i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198808

main11012-54020i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198808-198908

main11013-54010i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198808

main11013-54020i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198808-198908

11702BEARING SET, CRANKSHAFT

main11704-54060i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198803

main11704-54061i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198803-198908

sub11704-54080

main11704-71020i2Y,3Y#..YH5#,6#,71198708-198908

main11705-54060i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198803

main11705-54061i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198803-198908

sub11705-54080

11711BEARING, CRANKSHAFT

main11701-54060-01×5i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198803

MARK 1

main11701-54060-02×5i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198803

MARK 2

main11701-54060-03×5i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198803

MARK 3

main11701-54061-01×5i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198803-198908

MARK 1

sub11701-54080

main11701-54061-02×5i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198803-198908

MARK 2

sub11701-54080

main11701-54061-03×5i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198803-198908

MARK 3

sub11701-54080

main11701-71020-01×5i2Y,3Y#..YH5#,6#,71198708-198908

MARK 1

main11701-71020-02×5i2Y,3Y#..YH5#,6#,71198708-198908

MARK 2

main11701-71020-03×5i2Y,3Y#..YH5#,6#,71198708-198908

MARK 3

13011RING SET, PISTON

main13011-54061i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198711

main13011-54062i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198711-198908

main13011-71021i2Y,3Y#..YH5#,6#,71198708-198908

sub13011-71012

main13013-54061i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198711

main13013-54062i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198711-198908

main13013-71021i2Y,3Y#..YH5#,6#,71198708-198908

main13014-71021i2Y,3Y#..YH5#,6#,71198708-198908

main13015-71021i2Y,3Y#..YH5#,6#,71198708-198908

13041BEARING, CONNECTING ROD

main13041-54013-01×4i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198808

MARK 1

main13041-54013-02×4i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198808

MARK 2

main13041-54013-03×4i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198808

MARK 3

main13041-54024-01×4i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198808-198908

MARK 1

main13041-54024-02×4i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198808-198908

MARK 2

main13041-54024-03×4i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198808-198908

MARK 3

main13041-54040-01×4i2LT..LH51198708-198803

MARK 1

main13041-54040-02×4i2LT..LH51198708-198803

MARK 2

main13041-54040-03×4i2LT..LH51198708-198803

MARK 3

main13041-54041-01×4i2LT..LH51198803-198908

MARK 1

sub13041-54042

main13041-54041-02×4i2LT..LH51198803-198908

MARK 2

sub13041-54042

main13041-54041-03×4i2LT..LH51198803-198908

MARK 3

sub13041-54042

main13041-71011-06×4i2Y,3Y#..YH5#,6#,71198808-198908

MARK 6

sub13041-73010

main13041-71011-07×4i2Y,3Y#..YH5#,6#,71198808-198908

MARK 7

sub13041-73010

main13041-71011-08×4i2Y,3Y#..YH5#,6#,71198808-198908

MARK 8

sub13041-73010

main13041-71021-06×4i2Y,3Y#..YH5#,6#,71198708-198808

MARK 6

main13041-71021-07×4i2Y,3Y#..YH5#,6#,71198708-198808

MARK 7

main13041-71021-08×4i2Y,3Y#..YH5#,6#,71198708-198808

MARK 8

13101PISTON SUB-ASSY, W/PIN

main13101-54030×4i2LT..LH51198708-198801

main13101-54030-01×4i2LT..LH51198801-198908

main13101-54030-02×4i2LT..LH51198801-198908

main13101-54030-03×4i2LT..LH51198801-198908

main13101-54060×4i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198801

main13101-54060-01×4i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198801-198908

main13101-54060-02×4i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198801-198908

main13101-54060-03×4i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198801-198908

main13101-72010×4i2Y..YH50198708-198802

main13101-72010-01×4i2Y..YH50198802-198908

main13101-72010-02×4i2Y..YH50198802-198908

main13101-72010-03×4i2Y..YH50198802-198908

main13101-73010×4i2Y..YH50..06S198708-198802

main13101-73010-01×4i2Y..YH50..06S198802-198808

main13101-73010-02×4i2Y..YH50..06S198802-198808

main13101-73010-03×4i2Y..YH50..06S198802-198808

main13103-54030×4i2LT..LH51198708-198908

main13103-54060×4i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

main13103-72010×4i2Y..YH50198708-198908

main13103-73010×4i2Y..YH50..06S198708-198808

main13104-72010×4i2Y..YH50198708-198908

main13104-73010×4i2Y..YH50..06S198708-198808

main13105-72010×4i2Y..YH50198708-198908

main13105-73010×4i2Y..YH50..06S198708-198808

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-29003×8i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

main90521-31001×8i2LT..LH51198708-198908

13201ROD SUB-ASSY, CONNECTING

main13201-59016×4i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198807

main13201-59017×4i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198807-198908

main13201-59026i2LT..LH51198708-198807

main13201-59027i2LT..LH51198807-198908

main13201-71011×4i2Y..YH50198708-198908

main13201-79045×4i2Y..YH50..06S198708-198808

sub13201-79046

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73083i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198807

main90999-73094i2LT..LH51198708-198807

main90999-73117×4i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198807-198908

main90999-73118×4i2LT..LH51198807-198908

13202BEARING SET, CONNECTING ROD

main13204-54013i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198808

main13204-54024i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198808-198908

main13204-54040i2LT..LH51198708-198803

main13204-54041i2LT..LH51198803-198908

sub13204-54042

main13204-71011i2Y,3Y#..YH5#,6#,71198808-198908

sub13204-73010

main13204-71021i2Y,3Y#..YH5#,6#,71198708-198808

main13205-54013i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198808

main13205-54024i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198808-198908

main13205-54040i2LT..LH51198708-198803

main13205-54041i2LT..LH51198803-198908

sub13205-54042

13265BOLT, CONNECTING ROD

main13265-29025×8i2Y..YH50..06S198708-198808

main13265-54011×8i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198807

main13265-54020×8i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198807-198908

sub13265-54021

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90170-09001×8i2Y,3Y#..YH5#,6#,71198708-198908

main90170-10005×8i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198807

main90179-10123×8i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198807-198908

13405FLYWHEEL SUB-ASSY

main13405-54011i2L..LH51,61,71..(COM,V)..MTM198805-198908

main13405-54060i2L..LH61..10S;2L..LH56,66,71..05S,10S;2L#..LH51,66..MTM..(CTM,DX,SCM,SGL)..(08S,09S)198805-198908

main13405-59035i2L..LH51,61,71..(COM,V)..MTM198708-198805

sub13405-54013

main13405-59066i2L..LH61..10S;2L..LH56,66,71..05S,10S;2L#..LH51,66..MTM..(CTM,DX,SCM,SGL)..(08S,09S)198708-198805

main13405-71011i2Y..YH50198708-198903

main13405-72011i3YU..YH51,57,61..MTM198903-198908

main13405-79045i3YU..YH51,57,61..MTM198708-198903

main13405-79065i3Y,3YJ..YH52,6#,71..MTM198708-198908

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054×3i2L..LH66..05S;2L#..LH5#,61,71..MTM;2L..LH66..(DX,SGL)..08S198708-198908

13405BBOLT, FLYWHEEL SETTING

main90105-10042×6i2Y,3Y#..YH5#,6#,71..MTM198708-198908

main90105-12109×8i2L..LH66..05S;2L#..LH5#,61,71..MTM;2L..LH66..(DX,SGL)..08S198805-198908

13411CRANKSHAFT

main13401-54021i2LT..LH51198708-198805

main13401-54023i2LT..LH51198805-198904

main13401-54030i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198805

main13401-54031i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198805-198908

main13411-72010i2Y..YH50198708-198908

sub13411-72900

main13411-73010i2Y..YH50..06S198708-198808

sub13411-73900

13453GEAR, FLYWHEEL RING

main13453-20010i2Y,3Y#..YH5#,6#,71..MTM198708-198908

main13453-54010i2L..LH66..05S;2L#..LH5#,61,71..MTM;2L..LH66..(DX,SGL)..08S198708-198908

13471PULLEY, CRANKSHAFT

main13408-54020i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

main13408-73010i2Y,3Y#..YH5#,6#,71198708-198908

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05010i2Y,3Y#..YH5#,6#,71198708-198908

main95161-20622i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

sub95161-30622

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-14013i2Y,3Y#..YH5#,6#,71198708-198901

main90105-14069i2Y,3Y#..YH5#,6#,71198901-198908

main90119-14005i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-33010i2Y,3Y#..YH5#,6#,71198708-198908

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05010i2Y,3Y#..YH5#,6#,71198708-198908

main95161-20622i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

sub95161-30622

13521PPULLEY, CRANKSHAFT TIMING

main13521-54020i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

13566AGUIDE, TIMING BELT

main13566-54010i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198808

main13566-54040i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198808-198908
