MIRROR

0001 1 0002 1 0003 1 0004 1

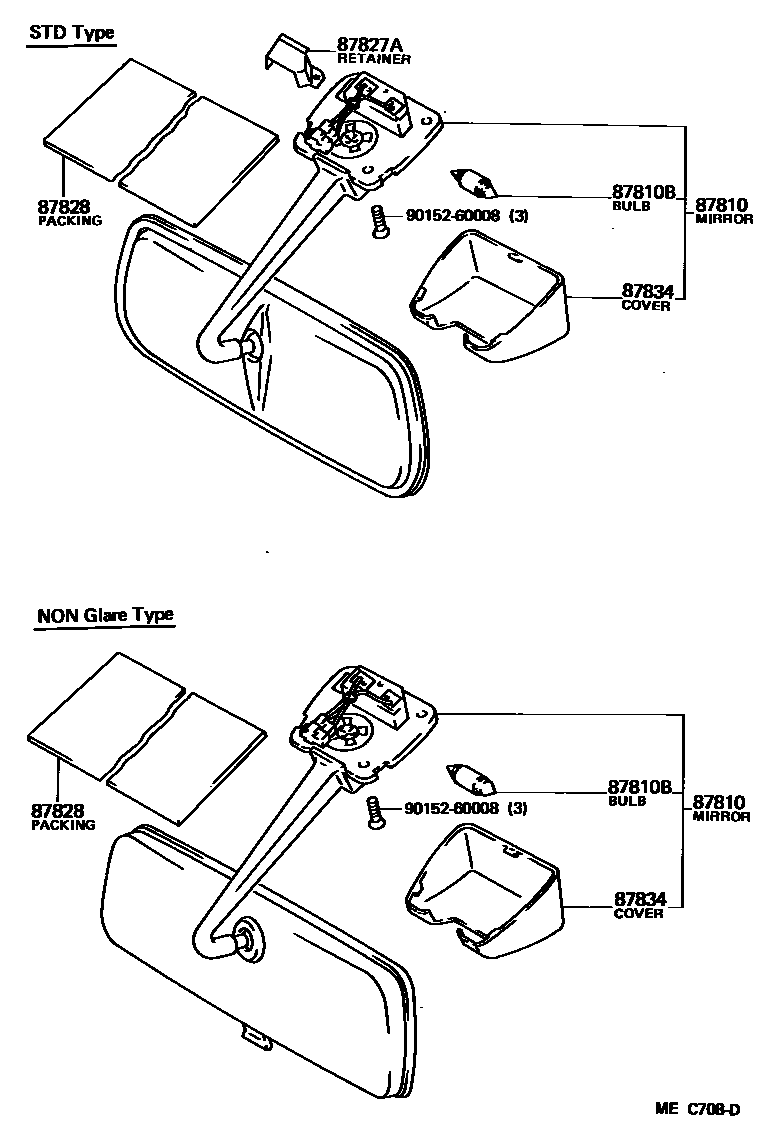

87810MIRROR ASSY, INNER REAR VIEW

main87810-95704iLH5#,6#,7#,YH5#,6#,71..DLX,STD198212-198508

STD TYPE

main87810-95705iLH5#,6#,7#,YH50,61..GL198212-198508

NON GLARE TYPE,W/O CLOCK

main87810-95J00iLH5#,6#,7#,YH5#,6#,71..CTD,DLX198212-198708

STD TYPE,W/CLOCK

main87810-95J01iLH5#,61,71,YH5#,6#,71..DLX198401-198508

NON GLARE TYPE,W/CLOCK

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11027iLH5#,6#,7#,YH5#,6#,71198212-198708

87827ARETAINER, INNER REAR VIEW MIRROR

main81218-90C00iLH7#,YH71..VSG198212-198708

STD TYPE

87828PACKING, REAR VIEW INSIDE MIRROR SUPPORT

main87839-95J00iLH5#,6#,YH5#,6#..SRF..(CTD,DLX,GL)198212-198708

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81243-95701iYH61..10S198508-198708

main81243-95J00iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCL,SCM198212-198708

W/CLOCK

9015260008

main90152-60008

6 parts on this diagram · 4 diagrams in section
