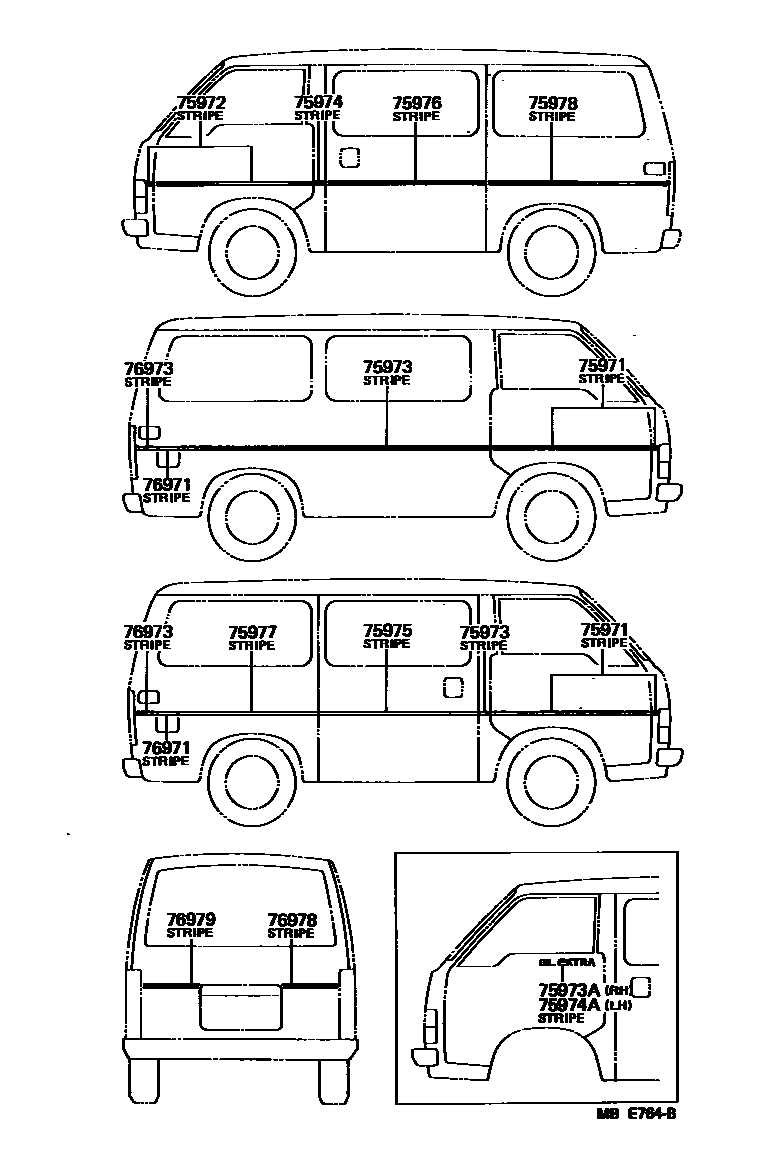

BODY STRIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1LIVING SALOON EX 0012 1LIVING SALOON EX 0013 1WHITE SPECIAL

75971STRIPE, SIDE, RH NO.1

main75985-95J00iLH6#,YH61..V..SRF198212-198508

main75985-95J01iLH50,YH51..CTM198212-198401

main75985-95J02-04iLH5#,YH51..08S198212-198508

BLUE,BLUE/ORANGE

sub75985-95J02

main75985-95J07iLH61,YH61..GL198410-198410

GL EXTRA

main75985-95J08-03iLH51,61,YH5#,61..GL198508-198708

GRAY,SILVER/RED

sub75985-95J08

sub75985-95J29

main75985-95J10-06iLH51,YH51..07S198508-198708

BROWN,SEPIA

sub75985-95J10

main75985-95J12-04iLH51,YH51..08S198508-198708

BLUE,BLUE

sub75985-95J12

main75985-95J12-06iLH51,YH51..08S198508-198708

BROWN,GOLD

sub75985-95J12

main75985-95J13iLH51,YH51..08S198502-198502

EVENT

main75985-95J16iLH56,66..DLX198608-198708

main75985-95J17iLH56,66..GL198608-198708

main75985-95J18iYH51..MRF..4FC..08S198605-198701

LIVING SALOON EX

main75985-95J19iLH66..V4D..GL198609-198708

WHITE SPECIAL

main75985-95J28iYH51..MRF..4FC..08S198701-198708

LIVING SALOON EX

75972STRIPE, SIDE, LH NO.1

main75986-95J00iLH6#,YH61..V..SRF198212-198508

main75986-95J01iLH50,YH51..CTM198212-198401

main75986-95J02-04iLH5#,YH51..08S198212-198508

BLUE,BLUE/ORANGE

sub75986-95J02

main75986-95J07iLH61,YH61..GL198410-198410

GL EXTRA

main75986-95J08-03iLH51,61,YH5#,61..GL198508-198708

GRAY,SILVER/RED

sub75986-95J08

sub75986-95J29

main75986-95J10-06iLH51,YH51..07S198508-198708

BROWN,SEPIA

sub75986-95J10

main75986-95J12-04iLH51,YH51..08S198508-198708

BLUE,BLUE

sub75986-95J12

main75986-95J12-06iLH51,YH51..08S198508-198708

BROWN,GOLD

sub75986-95J12

main75986-95J13iLH51,YH51..08S198502-198502

EVENT

main75986-95J16iLH56,66..DLX198608-198708

main75986-95J17iLH56,66..GL198608-198708

main75986-95J18iLH51..08S..TD198605-198701

LIVING SALOON EX

main75986-95J19iLH66..V4D..GL198609-198708

WHITE SPECIAL

main75986-95J28iLH51..08S..TD198701-198708

LIVING SALOON EX

75973STRIPE, SIDE, RH NO.2

main75941-95J00iLH6#,YH61..SRF..V5D198212-198508

main75941-95J06iLH61,YH61..GL198410-198410

GL EXTRA

main75941-95J07-03iLH51,61,YH51,61..V5D..05S198508-198708

GRAY,SILVER/RED

sub75941-95J07

sub75941-95J27

main75941-95J14iLH56,66..V5D..DLX198608-198708

main75941-95J15iLH56,66..V5D..GL198608-198708

main75994-95J00iLH6#,YH61..SRF..V4D198212-198508

main75994-95J01iLH50,YH51..CTM198212-198401

main75994-95J02iLH5#,YH51..08S198212-198508

main75994-95J06-03iLH61,YH61..V4D..GL198508-198708

GRAY,SILVER/RED

sub75994-95J06

sub75994-95J44

main75994-95J07-06iYH51..07S198508-198708

BROWN,SEPIA

sub75994-95J07

main75994-95J08-06iLH51..07S198508-198708

BROWN,SEPIA

sub75994-95J08

main75994-95J09-04iLH51,YH51..08S..(CBR,DSL)198508-198708

BLUE,BLUE

sub75994-95J09

main75994-95J09-06iLH51,YH51..08S..(CBR,DSL)198508-198708

BROWN,GOLD

sub75994-95J09

main75994-95J10iLH51,YH51..08S198502-198502

EVENT

main75994-95J11-04iLH51..08S..TD198508-198708

BLUE,BLUE

sub75994-95J11

main75994-95J11-06iLH51..08S..TD198508-198708

BROWN,GOLD

sub75994-95J11

main75994-95J14-03iLH51,YH50..V4D..05S198508-198708

GRAY,SILVER/RED

sub75994-95J14

sub75994-95J45

main75994-95J18iLH56..V4D..DLX198608-198708

main75994-95J19iLH66..V4D..DLX198608-198708

main75994-95J20iLH56..V4D..GL198608-198708

main75994-95J21iLH66..V4D..GL198608-198708

main75994-95J22iLH51..08S..TD198605-198701

LIVING SALOON EX

main75994-95J23iLH66..V4D..GL198609-198708

WHITE SPECIAL

main75994-95J42iLH51..08S..TD198701-198708

LIVING SALOON EX

75973ASTRIPE, SIDE, RH NO.2 (FOR UPPER)

main75993-95J02iLH51,YH51..08S198405-198406

LIVING SALOON EX

main75993-95J04iLH51,YH51..08S198410-198410

LIVING SALOON EX

main75993-95J17iLH51..08S..TD198601-198603

LIVING SALOON EX

main75995-95J01iLH61,YH61..GL198410-198410

GL EXTRA

main76973-95J00iLH5#,YH51..08S198212-198508

75974STRIPE, CENTER PILLAR, LH NO.2

main75941-95J00iLH6#,YH61..V..SRF198212-198508

main75941-95J01iLH50,YH51..CTM198212-198401

main75941-95J02-04iLH5#,YH51..08S198212-198508

BLUE,BLUE/ORANGE

sub75941-95J02

main75941-95J04iLH51,YH51..08S198405-198406

LIVING SALOON EX

main75941-95J05iLH51,YH51..08S198410-198410

LIVING SALOON EX

main75941-95J06iLH61,YH61..GL198410-198410

GL EXTRA

main75941-95J07-03iLH51,61,YH5#,61..GL198508-198708

GRAY,SILVER/RED

sub75941-95J07

sub75941-95J27

main75941-95J09-06iLH51,YH51..07S198508-198708

BROWN,SEPIA

sub75941-95J09

main75941-95J11-04iLH51,YH51..08S198508-198708

BLUE,BLUE

sub75941-95J11

main75941-95J11-06iLH51,YH51..08S198508-198708

BROWN,GOLD

sub75941-95J11

main75941-95J12iLH51,YH51..08S198502-198502

EVENT

main75941-95J13iLH51..08S..TD198601-198603

LIVING SALOON EX

main75941-95J14iLH56,66..DLX198608-198708

main75941-95J15iLH56,66..GL198608-198708

main75941-95J16iLH51..08S..TD198605-198701

LIVING SALOON EX

main75941-95J17iLH66..V4D..GL198609-198708

WHITE SPECIAL

main75941-95J26iYH51..MRF..4FC..08S198701-198708

LIVING SALOON EX

75974ASTRIPE, SIDE, LH NO.2(FOR UPPER)

main75995-95J01iLH61,YH61..GL198410-198410

GL EXTRA

main76974-95J00iLH5#,YH51..08S198212-198508

75975STRIPE, SIDE, RH UPR NO.3

main75983-95J00iLH6#,YH61..SRF..V5D198212-198508

main75983-95J07iLH61,YH61..GL198410-198410

GL EXTRA

main75983-95J08-03iLH51,61,YH5#,61..V5D..05S198508-198708

GRAY,SILVER/RED

sub75983-95J08

sub75983-95J29

main75983-95J16iLH56,66..V5D..DLX198608-198708

main75983-95J17iLH56,66..V5D..GL198608-198708

main76993-95J02iLH51,YH51..08S198405-198406

LIVING SALOON EX

main76993-95J03iLH51,YH51..08S198410-198410

LIVING SALOON EX

main76993-95J13iLH51..08S..TD198601-198603

LIVING SALOON EX

main76993-95J16iLH51..08S..TD198605-198701

LIVING SALOON EX

main76993-95J26iYH51..MRF..4FC..08S198701-198708

LIVING SALOON EX

75976STRIPE, SIDE, LH UPR

main75983-95J00iLH6#,YH61..V..SRF198212-198508

main75983-95J01iLH50,YH51..CTM198212-198401

main75983-95J02-04iLH5#,YH51..08S198212-198508

BLUE,BLUE/ORANGE

sub75983-95J02

main75983-95J07iLH61,YH61..GL198410-198410

GL EXTRA

main75983-95J08-03iLH51,61,YH5#,61..GL198508-198708

GRAY,SILVER/RED

sub75983-95J08

sub75983-95J29

main75983-95J10-06iLH51,YH51..07S198508-198708

BROWN,SEPIA

sub75983-95J10

main75983-95J12-04iLH51,YH51..08S198508-198708

BLUE,BLUE

sub75983-95J12

main75983-95J12-06iLH51,YH51..08S198508-198708

BROWN,GOLD

sub75983-95J12

main75983-95J13iLH51,YH51..08S198502-198502

EVENT

main75983-95J16iLH56,66..DLX198608-198708

main75983-95J17iLH56,66..GL198608-198708

main75983-95J18iLH51..08S..TD198605-198701

LIVING SALOON EX

main75983-95J19iLH66..V4D..GL198609-198708

WHITE SPECIAL

main75983-95J28iLH51..08S..TD198701-198708

LIVING SALOON EX

75977STRIPE, SIDE, RH NO.4

main75991-95J00iLH6#,YH61..SRF..V5D198212-198508

main75991-95J03iLH61,YH61..GL198410-198410

GL EXTRA

main75991-95J04-03iLH61,YH61..V5D..05S198508-198708

GRAY,SILVER/RED

sub75991-95J04

sub75991-95J16

main75991-95J05-03iLH51,YH5#..V5D..05S198508-198708

GRAY,SILVER/RED

sub75991-95J05

sub75991-95J17

main75991-95J06iLH56..V5D..DLX198608-198708

main75991-95J07iLH66..V5D..DLX198608-198708

main75991-95J08iLH56..V5D..GL198608-198708

main75991-95J09iLH66..V5D..GL198608-198708

75978STRIPE, SIDE, LH NO.4

main75992-95J00iLH6#,YH61..V..SRF198212-198508

main75992-95J01iLH50,YH51..CTM198212-198401

main75992-95J02iLH5#,YH51..08S198212-198508

main75992-95J07iLH61,YH61..GL198410-198410

GL EXTRA

main75992-95J08-03iLH61,YH61..GL198508-198708

GRAY,SILVER/RED

sub75992-95J08

sub75992-95J51

main75992-95J10-06iYH51..07S198508-198708

BROWN,SEPIA

sub75992-95J10

main75992-95J11-06iLH51..07S198508-198708

BROWN,SEPIA

sub75992-95J11

main75992-95J12-04iLH51,YH51..08S..(CBR,DSL)198508-198708

BLUE,BLUE

sub75992-95J12

main75992-95J12-06iLH51,YH51..08S..(CBR,DSL)198508-198708

BROWN,GOLD

sub75992-95J12

main75992-95J13iLH51,YH51..08S198502-198502

EVENT

main75992-95J14-04iLH51..08S..TD198508-198708

BLUE,BLUE

sub75992-95J14

main75992-95J14-06iLH51..08S..TD198508-198708

BROWN,GOLD

sub75992-95J14

main75992-95J20-03iLH51,YH5#..05S198508-198704

GRAY,SILVER/RED

sub75992-95J20

sub75992-95J52

main75992-95J24iLH56..DLX198608-198708

main75992-95J25iLH66..DLX198608-198708

main75992-95J26iLH56..GL198608-198708

main75992-95J27iLH66..GL198608-198708

main75992-95J28iYH51..MRF..4FC..08S198605-198701

LIVING SALOON EX

main75992-95J29iLH66..V4D..GL198609-198708

WHITE SPECIAL

main75992-95J47iYH51..MRF..4FC..08S198701-198708

LIVING SALOON EX

main75992-95J52-03iLH51,YH5#..05S198704-198708

GRAY,SILVER/RED

76971STRIPE, SIDE, RH NO.5

main75993-95J23iYH51..MRF..4FC..08S198605-198701

LIVING SALOON EX

main75993-95J38iYH51..MRF..4FC..08S198701-198708

LIVING SALOON EX

main75994-95J04iLH51,YH51..08S198405-198406

LIVING SALOON EX

main75994-95J05iLH51,YH51..08S198410-198410

LIVING SALOON EX

main75994-95J17iYH51..MRF..4FC..08S198601-198603

LIVING SALOON EX

main76993-95J00iLH6#,YH61..V..SRF198212-198508

main76993-95J01iLH5#,YH51..08S198212-198508

main76993-95J04iLH61,YH61..GL198410-198410

GL EXTRA

main76993-95J05-03iLH51,61,YH5#,61..GL198508-198708

GRAY,SILVER/RED

sub76993-95J05

sub76993-95J28

main76993-95J07-06iLH51,YH51..07S198508-198708

BROWN,SEPIA

sub76993-95J07

main76993-95J09-04iLH51,YH51..08S198508-198708

BLUE,BLUE

sub76993-95J09

main76993-95J09-06iLH51,YH51..08S198508-198708

BROWN,GOLD

sub76993-95J09

main76993-95J10iLH51,YH51..08S198502-198502

EVENT

main76993-95J14iLH56,66..DLX198608-198708

main76993-95J15iLH56,66..GL198608-198708

main76993-95J17iLH66..V4D..GL198609-198708

WHITE SPECIAL

76973STRIPE, SIDE, RH NO.6

main75993-95J00iLH6#,YH61..V..SRF198212-198508

main75993-95J01-04iLH5#,YH51..08S198212-198508

BLUE,BLUE/ORANGE

sub75993-95J01

main75993-95J06iLH61,YH61..GL198410-198410

GL EXTRA

main75993-95J07-03iLH61,YH61..GL198508-198708

GRAY,SILVER/RED

sub75993-95J07

sub75993-95J39

main75993-95J09-06iLH51,YH51..07S198508-198708

BROWN,SEPIA

sub75993-95J09

main75993-95J11-04iLH51,YH51..08S198508-198708

BLUE,BLUE

sub75993-95J11

main75993-95J11-06iLH51,YH51..08S198508-198708

BROWN,GOLD

sub75993-95J11

main75993-95J12iLH51,YH51..08S198502-198502

EVENT

main75993-95J16-03iLH51,YH5#..05S198508-198708

GRAY,SILVER/RED

sub75993-95J16

sub75993-95J40

main75993-95J19iLH56..DLX198608-198708

main75993-95J20iLH66..DLX198608-198708

main75993-95J21iLH56..GL198608-198708

main75993-95J22iLH66..GL198608-198708

main75993-95J24iLH66..V4D..GL198609-198708

WHITE SPECIAL

main75998-95J00iLH51,YH51..08S198405-198406

LIVING SALOON EX

main75998-95J01iLH51,YH51..08S198410-198410

LIVING SALOON EX

main75998-95J02iLH51..08S..TD198601-198603

LIVING SALOON EX

76978STRIPE, REAR BODY BACK, RH

main75946-95J00iLH6#,YH61..V..SRF198212-198508

main75946-95J01-04iLH5#,YH51..08S198212-198508

BLUE,BLUE/ORANGE

sub75946-95J01

main75946-95J02iLH51,YH51..08S198405-198406

LIVING SALOON EX,UPR

main75946-95J03iLH51,YH51..08S198405-198406

LIVING SALOON EX,LWR

main75946-95J04iLH51,YH51..08S198410-198410

LIVING SALOON EX,UPR

main75946-95J05iLH51,YH51..08S198410-198410

LIVING SALOON EX,LWR

main75946-95J06iLH61,YH61..GL198410-198410

GL EXTRA

main75946-95J07-03iLH51,61,YH5#,61..GL198508-198708

GRAY,SILVER/RED

sub75946-95J07

sub75946-95J25

main75946-95J09-06iLH51,YH51..07S198508-198708

BROWN,SEPIA

sub75946-95J09

main75946-95J11iLH51,YH51..08S198502-198502

EVENT

main75946-95J12-04iLH51,YH51..08S198508-198708

BLUE,BLUE

main75946-95J12-06iLH51,YH51..08S198508-198708

BROWN,GOLD

main75946-95J13iLH51..08S..TD198601-198603

LIVING SALOON EX

main75946-95J14iLH56,66..GL198608-198708

main75946-95J15iYH51..MRF..4FC..08S198605-198701

LIVING SALOON EX

main75946-95J16iLH66..V4D..GL198609-198708

WHITE SPECIAL

main75946-95J24iYH51..MRF..4FC..08S198701-198708

LIVING SALOON EX

main75946-95J25-03iLH61,YH61..V..SRF198704-198708

SILVER & RED,SILVER/RED

76979STRIPE, REAR BODY BACK, LH

main75947-95J00iLH6#,YH61..V..SRF198212-198508

main75947-95J01-04iLH5#,YH51..08S198212-198508

BLUE,BLUE/ORANGE

sub75947-95J01

main75947-95J02iLH51,YH51..08S198405-198406

LIVING SALOON EX,UPR

main75947-95J03iLH51,YH51..08S198405-198406

LIVING SALOON EX,LWR

main75947-95J04iLH51,YH51..08S198410-198410

LIVING SALOON EX,UPR

main75947-95J05iLH51,YH51..08S198410-198410

LIVING SALOON EX,LWR

main75947-95J06iLH61,YH61..GL198410-198410

GL EXTRA

main75947-95J07-03iLH51,61,YH5#,61..GL198508-198708

GRAY,SILVER/RED

sub75947-95J07

sub75947-95J25

main75947-95J09-06iLH51,YH51..07S198508-198708

BROWN,SEPIA

sub75947-95J09

main75947-95J11iLH51,YH51..08S198502-198502

EVENT

main75947-95J12-04iLH51,YH51..08S198508-198708

BLUE,BLUE

main75947-95J12-06iLH51,YH51..08S198508-198708

BROWN,GOLD

main75947-95J13iYH51..MRF..4FC..08S198601-198603

LIVING SALOON EX

main75947-95J14iLH56,66..GL198608-198708

main75947-95J15iYH51..MRF..4FC..08S198605-198701

LIVING SALOON EX

main75947-95J16iLH66..V4D..GL198609-198708

WHITE SPECIAL

main75947-95J24iYH51..MRF..4FC..08S198701-198708

LIVING SALOON EX

14 parts on this diagram · 13 diagrams in section
