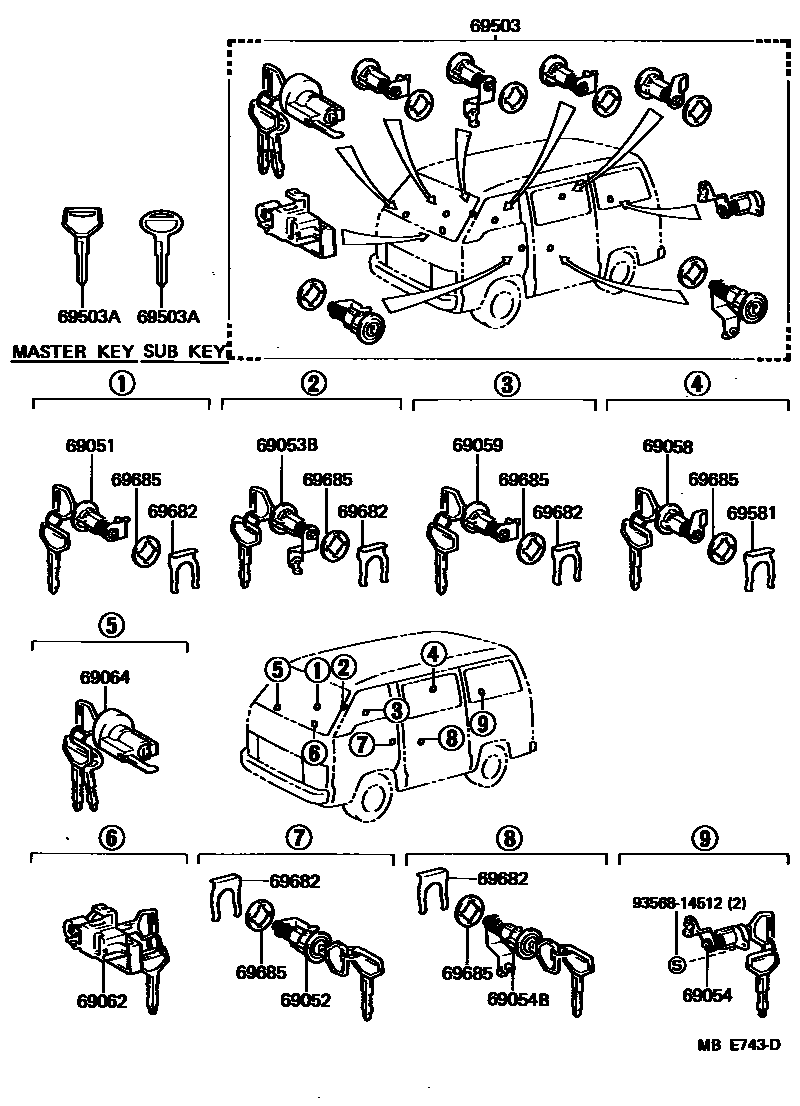

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-95J00iLH5#,6#,7#,YH5#,6#,71198212-198708

sub69051-95J03

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-95J00iLH5#,6#,7#,YH5#,6#,71198212-198708

sub69052-95J03

69053BCYLINDER & KEY SET, SLIDE DOOR LOCK, RH

main69053-95J00iLH5#,6#,YH50,51,61..V5D198212-198708

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-95J00iLH5#,6#,7#,YH5#,6#,71198212-198708

sub69055-95J04

69054BCYLINDER & KEY SET, SLIDE DOOR LOCK, LH

main69054-95J00iLH5#,6#,7#,YH5#,6#,71198212-198708

sub69054-95708

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-95J00iLH50,60,70,YH5#,61,71198212-198708

sub69058-95J01

main69058-95J03iLH51,YH51..08S198401-198508

69059CYLINDER & KEY SET, BATTERY SERVICE OPENING LID

main69508-95J01iLH50,51,60,61,YH61..VSP198311-198708

COOLING VAN

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-95J00-04iLH51,YH51..08S198401-198508

LIGHT BLUE,BLUE

sub69056-95J00

main69056-95J00-06iLH51,YH51..08S198401-198508

LIGHT BROWN,BROWN

sub69056-95J00

main69056-95J00-14iLH50,YH51..08S198212-198401

LIGHT BLUE,BLUE

sub69056-95J00

main69056-95J00-16iLH50,YH51..08S198212-198401

LIGHT BROWN,BROWN

sub69056-95J00

main69056-95J00-24iLH51,YH51..08S198508-198708

BLUE,BLUE

sub69056-95J00

main69056-95J00-26iLH51,YH51..07S,08S198508-198708

BROWN,BROWN

sub69056-95J00

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-95J00iLH5#,6#,7#,YH5#,6#,71198212-198704

sub69057-95J02

main69057-95J12iLH5#,6#,71,YH5#,6#,71198704-198708

sub69057-20042

69503CYLINDER SET, LOCK

main69503-95J02-14iLH50,YH51..08S198212-198401

LIGHT BLUE,BLUE

main69503-95J02-16iLH50,YH51..08S198212-198401

LIGHT BROWN,BROWN

main69503-95J03iLH50,60,YH61..WG..(09S,10S)198212-198704

main69503-95J04iLH5#,6#,YH50,51,61..V5D198212-198704

main69503-95J16-04iLH51,YH51..08S198401-198508

LIGHT BLUE,BLUE

main69503-95J16-06iLH51,YH51..08S198401-198508

LIGHT BROWN,BROWN

main69503-95J17iLH50,51,60,61,YH61..VSP198311-198704

COOLING VAN

main69503-95J19-04iLH51,YH51..08S198508-198704

BLUE,BLUE

main69503-95J19-06iLH51,YH51..07S,08S198508-198704

BROWN,BROWN

main69503-95J37iLH51,61,YH51,61..WG..(09S,10S)198704-198708

main69503-95J38iLH5#,6#,YH5#,61..V5D198704-198708

main69503-95J39-04iLH51,YH51..08S198704-198708

BLUE,BLUE

main69503-95J39-06iLH51,YH51..07S,08S198704-198708

BROWN,BROWN

main69503-95J40iLH61,YH61..VSP198704-198708

COOLING VAN

69503AKEY, BLANK

main90999-00066iLH5#,6#,71,YH5#,6#,71198401-198708

sub90999-00085

main90999-00066iLH50,60,70,YH5#,61,71198212-198401

sub90999-00085

main90999-00068iLH51,YH51..07S,08S198401-198708

sub90999-00094

69581RETAINER, FUEL FILLER LID CYLINDER

main69512-87001iLH5#,6#,7#,YH5#,6#,71198212-198708

69682RETAINER, LOCK CYLINDER

main69511-32010iLH5#,6#,7#,YH5#,6#,71198212-198708

69685PAD, LOCK CYLINDER

main69513-32010iLH5#,6#,7#,YH5#,6#,71198212-198708

9356814512

main93568-14512

15 parts on this diagram · 1 diagram in section
