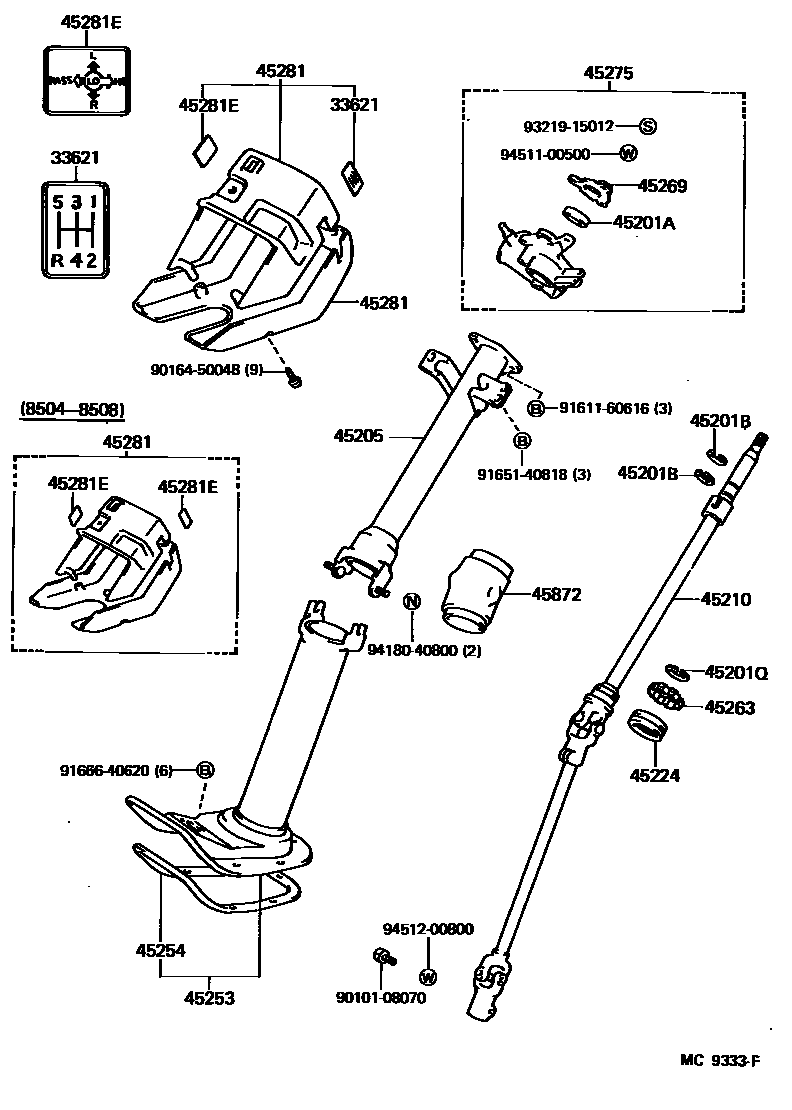

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36020iLH50,51,60,61,7#,YH50,51,6#,71..5H198212-198708

main33621-36040iYH50,52,6#,71..4H198212-198708

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iLH5#,6#,7#,YH5#,6#,71198212-198708

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iLH5#,6#,7#,YH5#,6#,71198212-198708

main90520-17269iLH5#,6#,7#,YH5#,6#,71198212-198708

45201QRING(FOR STEERING COLUMN RING)

main96152-00300iLH5#,6#,7#,YH5#,6#,71198212-198708

LWR

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-26080iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD198212-198601

main45205-26081iLH5#,6#,71,YH5#,6#,71..CTD,CTM,DLX,GL198601-198708

main45205-26100iLH50,51,YH51..07S,08S198212-198708

45210SHAFT ASSY, STEERING MAIN

main45210-26010iLH50,51,60,61,7#,YH5#,6#,71..CTD,DLX,STD198212-198708

main45210-26020iLH50,51,60,61,7#,YH5#,6#,71198212-198708

W/POWER STEERING

main45210-26040iLH56,66198608-198708

45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)

main45225-26010iLH5#,6#,7#,YH5#,6#,71198212-198708

45253COVER, STEERING COLUMN HOLE

main45204-26010iLH56,66198608-198708

main45204-26020iLH50,51,60,61,7#,YH5#,6#,71..03S,06S,09S,10S,15S198212-198708

main45204-26040iLH5#,YH51..07S,08S198212-198601

main45204-26041iLH51,YH51..07S,08S198601-198708

45254SHIELD, STEERING COLUMN HOLE

main45254-26050iLH5#,6#,7#,YH5#,6#,71..CTM,DLX,GL,STD198212-198508

45263RING, STEERING COLUMN, NO.1

main45263-26010iLH5#,6#,7#,YH5#,6#,71198212-198508

main45263-32010iLH5#,6#,71,YH5#,6#,71198508-198708

45269RETAINER, MAIN SHAFT BEARING

main45269-35010iLH5#,6#,7#,YH5#,6#,71198212-198708

45275BRACKET, STEERING COLUMN, UPPER

main45307-26070iYH52,62198212-198704

main45307-26071iYH62198704-198708

sub45307-26100

main45307-26080iLH56,66,YH50,51,61,71..V198212-198704

main45307-26081iLH51,61,71198704-198708

45281HOUSING, STEERING COLUMN

main45023-26130-04iYH50,52,6#,71..4H198212-198504

UPR,BLUE GRAY,BLUE

main45023-26130-05iYH50,52,6#,71..4H198212-198504

UPR,BEIGE,BEIGE

main45023-26140-04iLH5#,6#,7#,YH51,61..5H198212-198504

UPR,BLUE GRAY,BLUE

main45023-26140-05iLH5#,6#,7#,YH51,61..5H..(DLX,GL,STD)198212-198504

UPR,BEIGE,BEIGE

main45023-26140-06iLH5#,YH51..5H..CTM198212-198504

UPR,BROWN,BROWN

main45023-26141-14iLH61,YH61..GL..09S198508-198708

UPR,BLUE,BLUE

main45023-26141-16iLH71..GL198508-198708

UPR,BROWN,BROWN

main45023-26150-04iLH5#,YH51..4HC198212-198504

UPR,BLUE,BLUE

main45023-26150-05iYH61..4HC198212-198504

UPR,BEIGE,BEIGE

main45023-26150-06iLH5#,YH51..4HC198212-198504

UPR,BROWN,BROWN

main45023-26151-14iLH51,YH51..4HC..09S198508-198708

UPR,BLUE,BLUE

main45023-26151-16iLH51,61,YH61..4HC..06S198508-198708

UPR,BROWN,BROWN

main45023-26190-04iLH5#,YH51..08S198212-198508

UPR,BLUE GRAY,BLUE

sub45023-26H00

main45023-26190-06iLH5#,YH51..08S198212-198508

UPR,BROWN,BROWN

sub45023-26H00

main45023-26190-14iLH5#,6#,YH5#,61..(GL,SCM)..(05S,08S)198508-198708

UPR,BLUE,BLUE

sub45023-26H00

main45023-26190-16iLH56,66198608-198708

UPR,BROWN,BROWN

sub45023-26H00

main45023-29015-04iYH50,52,6#,71..4H198504-198508

BLUE GRAY,BLUE

main45023-29015-05iYH50,52,6#,71..4H198504-198508

BEIGE,BEIGE

main45023-29025-04iLH5#,61,71,YH51,61..5H..(DLX,GL,STD)198504-198508

BLUE,BLUE

main45023-29025-05iLH5#,61,71,YH51,61..5H198504-198508

BEIGE,BEIGE

main45023-29025-06iLH51,YH51..5H..CTM198504-198508

BROWN,BROWN

main45023-29055-04iLH51,61,YH51,61..ATM..(06S,09S)198504-198508

BLUE GRAY,BLUE

main45023-29055-05iYH61..4HC198504-198508

BEIGE,BEIGE

main45023-29055-06iLH51,61,YH51..ATM..(06S,09S)198504-198508

BROWN,BROWN

main45024-26010-04iLH5#,YH51..08S198212-198508

LWR,BLUE GRAY,BLUE

sub45023-26H00

main45024-26010-06iLH5#,YH51..08S198212-198508

LWR,BROWN,BROWN

sub45023-26H00

main45024-26010-14iLH51,61,YH5#,61..05S,08S198508-198708

LWR,BLUE,BLUE

sub45023-26H00

main45024-26010-16iLH51,YH51..07S,08S198508-198708

LWR,BROWN,BROWN

sub45023-26H00

main45287-26090-04iLH5#,6#,7#,YH5#,6#,71..CTM,DLX,GL,STD198212-198504

LWR,BLUE GRAY,BLUE

sub45286-29015

sub45023-29035

sub45023-29045

main45287-26090-05iLH5#,6#,7#,YH5#,6#,71..DLX,GL,STD198212-198504

LWR,BEIGE,BEIGE

sub45286-29015

sub45023-29035

sub45023-29045

main45287-26090-06iLH5#,YH51..CTM198212-198504

LWR,BROWN,BROWN

sub45286-29015

sub45023-29035

sub45023-29045

main45287-26091-14iLH61,YH61..GL..09S198508-198708

LWR,BLUE,BLUE

main45287-26091-16iLH51,61,71,YH5#,6#,71..(4HC,5H)..(CTD,DLX,GL)198508-198708

LWR,BROWN,BROWN

main45287-26110-14iLH56,66..GL198608-198708

LWR,BLUE,BLUE

sub45023-26H00

main45287-26110-16iLH56,66198608-198708

LWR,BROWN,BROWN

sub45023-26H00

45281EPLATE, SAFETY CAUTION

main45283-22010iLH5#,6#,7#,YH5#,6#,71198212-198708

45872COVER, STEERING COLUMN TUBE

main45872-26010iLH5#,6#,7#,YH5#,6#,71198212-198708

9010108070

main90101-08070

9016450048

main90164-50048

9161160616

main91611-60616

9165140818

main91651-40818

9166640620

main91666-40620

9321915012

main93219-15012

9418040800

main94180-40800

9451100500

main94511-00500

9451200800

main94512-00800

24 parts on this diagram · 4 diagrams in section
