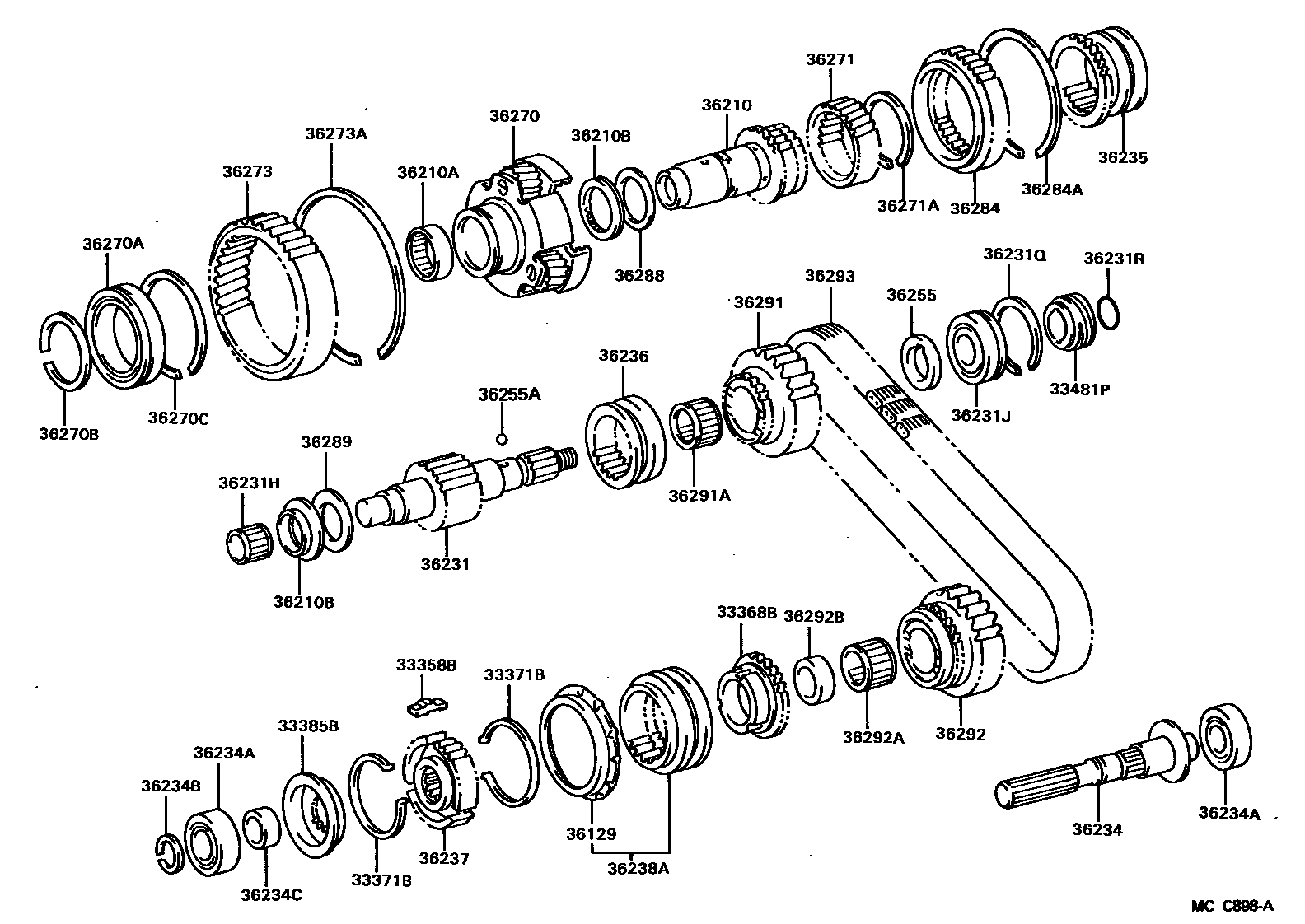

TRANSFER GEAR
33358BKEY, SYNCHROMESH SHIFTING (FOR TRANSFER FR DRIVE CLUTCH)
33368BRING, SYNCHRONIZER (FOR TRANSFER FRONT DRIVE CLUTCH)
33371BSPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER)
33385BRETAINER, SHIFTING KEY (FOR TRANSFER FRONT DRIVE CLUTCH)
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
�������U�C�}�[�N�@�P
36129PLATE, TRANSFER OIL SUPPLY
36210SHAFT ASSY, TRANSFER INPUT
36210ABEARING (FOR TRANSFER INPUT SHAFT)
36210BBEARING, THRUST (FOR TRANSFER INPUT SHAFT)
RR
FR
36231SHAFT, TRANSFER OUTPUT, REAR
36231HBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT)
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36231QRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT REAR BEARING)
36231RRING, O (FOR TRANSFER OUTPUT SHAFT)
36234SHAFT, TRANSFER OUTPUT, FRONT
36234ABEARING (FOR TRANSFER OUTPUT FRONT SHAFT)
RR
36234BRING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
�������P�D�X�T�C�}�[�N�@�P,T=1.95
�������Q�D�O�O�C�}�[�N�@�Q,T=2.00
�������Q�D�O�T�C�}�[�N�@�R,T=2.05
�������Q�D�P�O�C�}�[�N�@�S,T=2.10
�������Q�D�P�T�C�}�[�N�@�T,T=2.15
�������Q�D�Q�O�C�}�[�N�@�U,T=2.20
�������Q�D�Q�T�C�}�[�N�@�V,T=2.25
�������Q�D�R�O�C�}�[�N�@�W,T=2.30
�������Q�D�R�T�C�}�[�N�@�X,T=2.35
�������Q�D�S�O�C�}�[�N�@�P�O,T=2.40
�������Q�D�S�T�C�}�[�N�@�P�P,T=2.45
�������Q�D�T�O�C�}�[�N�@�P�Q,T=2.50
36234CSPACER (FOR TRANSFER OUTPUT FRONT SHAFT)
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36236SLEEVE, FRONT DRIVE CLUTCH
36237HUB, TRANSFER CLUTCH
36238ASLEEVE, TRANSFER FRONT DRIVE CLUTCH, NO.2
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
36255ABALL (FOR TRANSFER OUTPUT SHAFT SPACER)
36270GEAR ASSY, TRANSFER LOW PLANETARY
36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)
36270BRING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)
�������P�D�S�T�C�}�[�N�@�P,T=1.45
�������P�D�T�O�C�}�[�N�@�Q,T=1.50
�������P�D�T�T�C�}�[�N�@�R,T=1.55
�������P�D�U�O�C�}�[�N�@�S,T=1.60
�������P�D�U�T�C�}�[�N�@�T,T=1.65
36270CRING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)
36271GEAR, TRANSFER LOW PLANETARY SUN
36271ARING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY SUN GEAR)
36273GEAR, TRANSFER LOW PLANETARY RING
36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)
36284PIECE, TRANSFER LOW PLANETARY GEAR SPLINE
36284ARING, HOLE SNAP(FOR TRANSFER SPLINE PIECE)
36288RACE, TRANSFER THRUST BEARING, NO.1
36289RACE, TRANSFER THRUST BEARING, NO.2
36291SPROCKET, TRANSFER DRIVE
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
36292SPROCKET, TRANSFER DRIVEN
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
36292BSPACER (FOR TRANSFER DRIVEN SPROCKET)
36293CHAIN, TRANSFER FRONT DRIVE
42 parts on this diagram · 1 diagram in section
