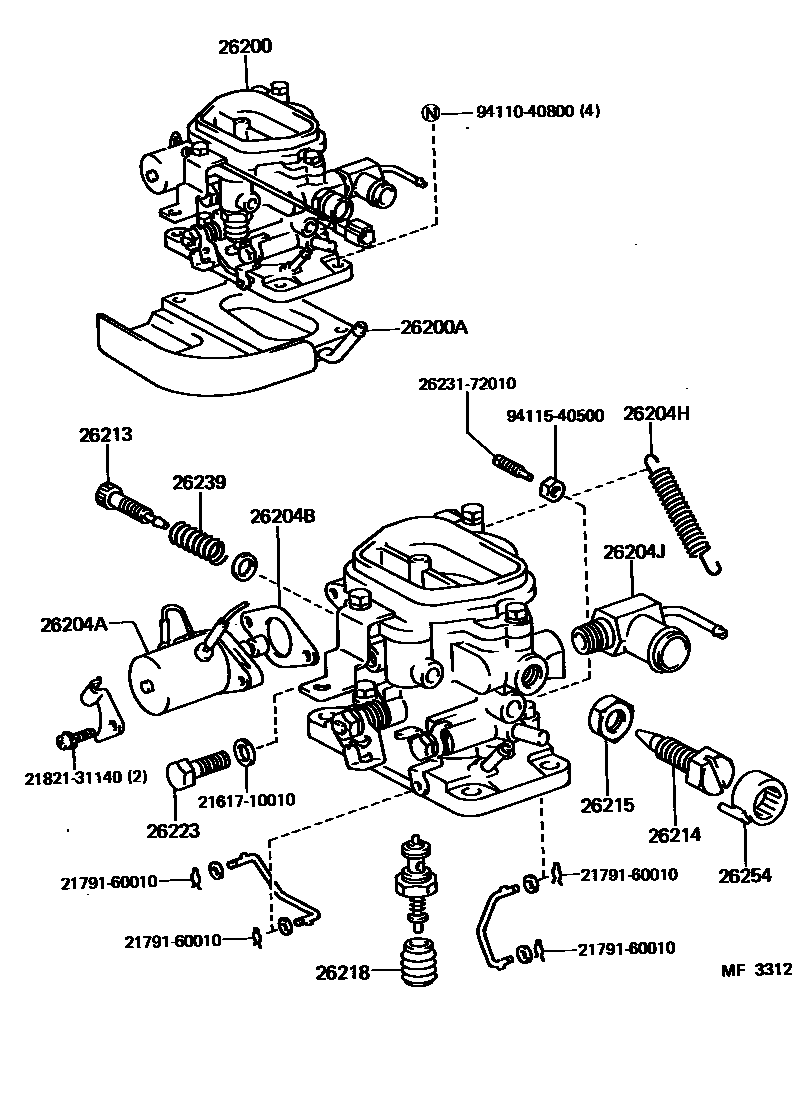

LPG CARBURETOR
26200CARBURETOR ASSY, LPG
LPG PACKAGE
26200AINSULATOR, LPG CARBURETOR HEAT
LPG PACKAGE
26204AVALVE, THROTTLE SOLENOID(FOR LPG)
26204BGASKET, SOLENOID VALVE(FOR LPG)
LPG PACKAGE
26204HSPRING, THROTTLE RETURN(FOR LPG)
LPG PACKAGE
26204JUNION, NO.2 FUEL HOSE(FOR LPG)
LPG PACKAGE
26213SCREW, ADJUST
26214SCREW, POWER ADJUST
26215NUT, POWER ADJUST
LPG PACKAGE
26218BOOT(FOR POWER VALVE)
LPG PACKAGE
26223SCREW, SET(FOR POWER VALVE CAM)
LPG PACKAGE
26239SPRING
LPG PACKAGE
26254CAP, POWER SCREW LIMIT
LPG PACKAGE
2161710010GASKET, MAIN PASSAGE PLUG
main21617-10010
2179160010RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-60010
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2623172010SCREW(FOR LPG CARBURETOR)
main26231-72010
9411040800
main94110-40800
9411540500
main94115-40500
19 parts on this diagram · 1 diagram in section
