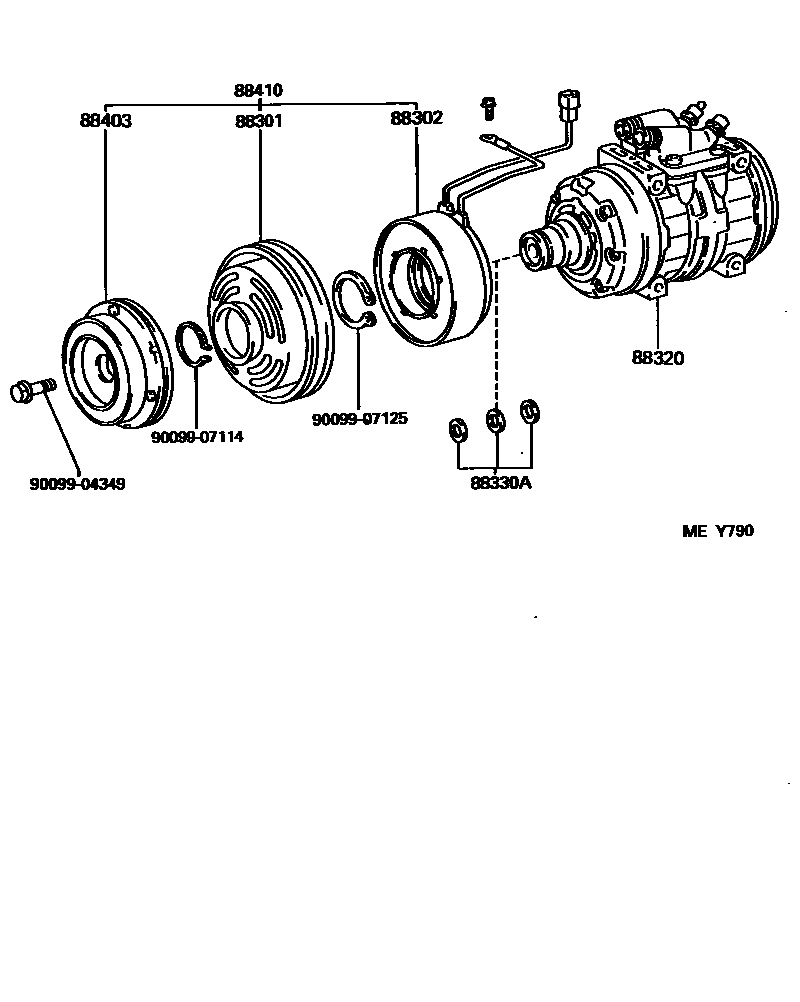

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1������ 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22240iYY101199505-199610

main88412-30430iLY101,111,151,161199505-199610

sub88412-2A060

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22280iLY101,111,151,161199505-199610

main88411-22300iYY101199505-199610

88320COMPRESSOR ASSY, COOLER

main88320-25060iLY101..MTM..IV199505-199610

sub88320-27H90

main88320-26470iYY101199505-199610

sub88320-27H91

main88320-26480iLY101..CBU;LY111,151,161;LY101..ATM..IV199505-199610

sub88320-35H92

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iLY101,111,151,161199505-199610

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iYY101199505-199610

main88403-30290iLY101,111,151,161199505-199610

88410CLUTCH ASSY, MAGNET

main88410-22470iYY101199505-199610

main88410-25080iLY101..MTM..IV199505-199610

main88410-25090iLY101..CBU;LY111,151,161;LY101..ATM..IV199505-199610

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

9 parts on this diagram · 3 diagrams in section
