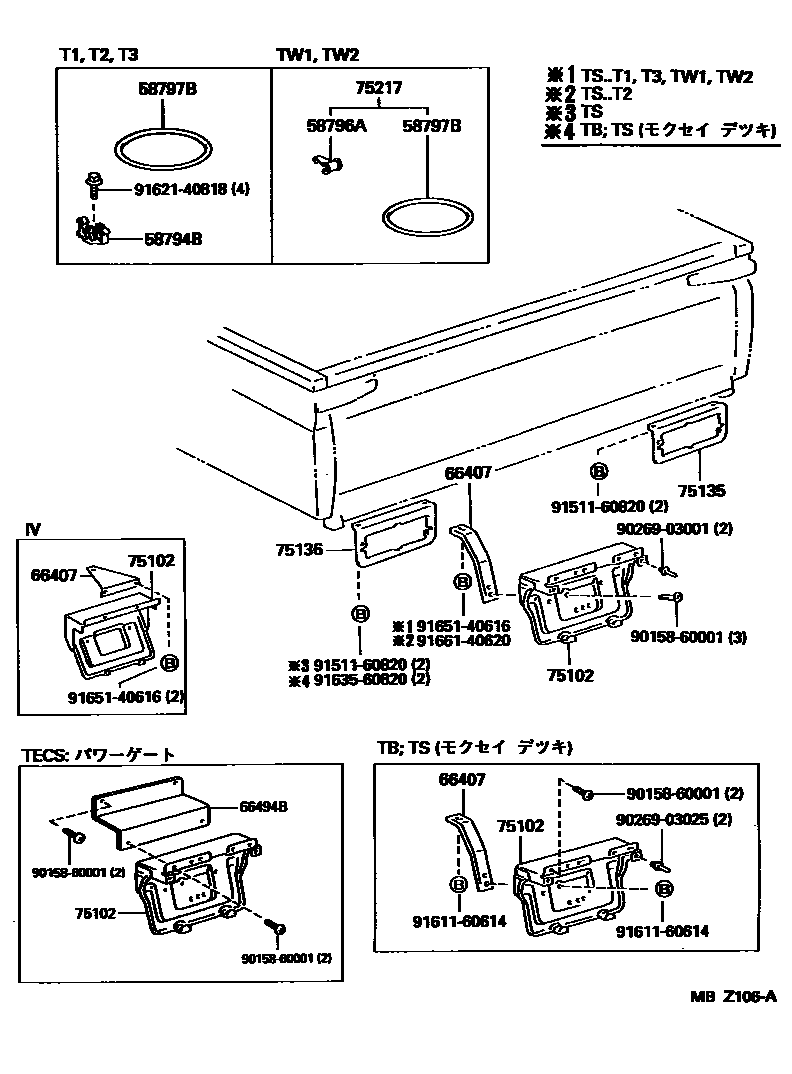

TOOL BOX & LICENSE PLATE BRACKET

58794BSUPPORT, JACK HANDLE

main58794-37020×2iLY101,111,151,161,YY101..T1,T2,T3199505-199610

58796AHOOK, JACK CLAMP

main58796-20012iLY101,111,151,161,YY101..TW1,TW2199505-199610

58797BBAND, JACK CLAMP

main58705-95A01iLY101,111,151,161,YY101..TW1,TW2199505-199610

main58797-37020iLY101,111,151,161,YY101..T1,T2,T3199505-199610

66407STAY SUB-ASSY, LICENSE PLATE BRACKET

main66407-95017iLY101,151,YY101..T1,TW2199505-199610

sub66407-25050

main66407-95020iLY101,111,151,161,YY101..T2..TS..CBU199505-199610

main66407-95A02iLY101,111,151,161,YY101..(T3,TW1)..TS..CBU199505-199610

sub66407-25040

main66493-25020iLY101,111..TB199505-199610

main66493-25030iLY151..TB199505-199610

main66495-25010iLY101,111,151,161,YY101..IV199505-199610

sub66495-25011

66494BPLATE, LICENSE BRACKET

main66494-25020iLY111..T2..TB199508-199610

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main66490-95019iLY151..TB;LY101,111..T3..TB;LY151..(T2,TW2)..TS;LY101,111,161,YY101..T1,T2,TW2;LY101,111,151,161,YY101..T3..IV199505-199610

sub66490-25030

main66490-95A06iLY101,111,151,161,YY101..(T3,TW1)..TS..CBU199505-199610

sub66490-25040

75135BRACKET, COMBINATION REAR LAMP, RH

main75135-25040iYY101..T2..IV;LY101..T2..ATM..IV199505-199610

sub75136-25030

main75135-95A02iLY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU199505-199610

sub75136-25010

75136BRACKET, COMBINATION REAR LAMP, LH

main75135-25040iYY101..T2..IV;LY101..T2..ATM..IV199505-199610

sub75136-25030

main75135-95A02iLY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU199505-199610

sub75136-25010

75217BAND, TOOL BAG

main58705-95A01iLY101,111,151,161,YY101..TW1,TW2199505-199610

9015860001

main90158-60001

9026903001

main90269-03001

9026903025

main90269-03025

9151160820

main91511-60820

9161160614

main91611-60614

9162140818

main91621-40818

9163560820

main91635-60820

9165140616

main91651-40616

9166140620

main91661-40620

18 parts on this diagram · 1 diagram in section
