ARMREST & VISOR

61169ASPACER, ANTENNA HOLDER

main61169-95400iLY101,111,151,161,YY101199505-199610

63273DRETAINER, ROOF WINDOW HINGE

main63273-95701iLY101,111,151,161,YY101199505-199610

63787APAD, ROOF AIR DEFLECTOR, NO.1

main63787-95400iLY101,111,151,161,YY101199505-199610

69285BHANDLE, PULL

main69285-95700-B0iLY101,111,151,161,YY101..TW1,TW2199505-199610

GRAY,TRIM1#

sub69285-95404

sub69285-95700

74035FRONT VISOR SET

main74035-95402iLY101,111,151,161,YY101199505-199610

***

74306SUPPORT, SUB-ASSY, FRONT VISOR

main74306-95400iLY101,111,151,161,YY101199505-199610

74310VISOR ASSY, RH

main74310-25010-B0iLY101,111,151,161,YY101199505-199610

LT. GRAY,TRIM1#

74318COVER, VISOR BRACKET, LH

main74318-25010-B0iLY101,111,151,161,YY101199505-199610

LT.GRAY,TRIM1#

sub74318-25010

74320VISOR ASSY, LH

main74320-25010-B0iLY101,111,151,161,YY101..T1,T2,T3199505-199610

LT. GRAY,TRIM1#

74321AVISOR, FRONT

main74321-95402iLY101,111,151,161,YY101199505-199610

74325ASUPPORT, FRONT VISOR, NO.1

main74325-95401iLY101,111,151,161,YY101199505-199610

74326ASUPPORT, FRONT VISOR, NO.2

main74326-95400iLY101,111,151,161,YY101199505-199610

74327PAD, FRONT VISOR, NO.1

main74327-95400iLY101,111,151,161,YY101199505-199610

74329PAD, FRONT VISOR, NO.3

main74329-95400iLY101,111,151,161,YY101199505-199610

74348HOLDER, VISOR

main74348-25010-B0iLY101,111,151,161,YY101199505-199610

LT.GRAY,TRIM1#

main74348-25010-B0iLY101,111,151,161,YY101199505-199610

74356COVER, VISOR HOLDER HOLE

main74356-25010-B0iLY101,111,151,161,YY101199505-199610

LT.GRAY,TRIM1#

74610AGRIP SUB-ASSY, ASSIST

main74610-95404-B0iLY101,111,151,161,YY101199505-199610

GRAY,TRIM1#

sub74610-95404

sub74610-95405

74611BGRIP, ASSIST

main74611-92601-B0iLY101,111,151,161,YY101..T1,T2,T3199505-199610

GRAY,TRIM1#

sub74611-92601

74617APLUG, ASSIST GRIP

main74617-95J00-B0iLY101,111,151,161,YY101199505-199610

GRAY,TRIM1#

sub74617-95J00

74631CHOOK, COAT

main74348-12010-B0iLY101,111,151,161,YY101..T1,T2,T3199505-199610

GRAY,TRIM1#

sub74348-12010

sub74348-30010

74811BHANDLE, DOOR PULL

main74811-87001-B0iLY101,111,151,161,YY101199505-199610

GRAY,TRIM1#

sub74811-87001

9015260005

main90152-60005

9015480007

main90154-80007

9015960162

main90159-60162

9015960243

main90159-60243

9016750032

main90167-50032

9038511005

main90385-11005

9324056012

main93240-56012

9356054012

main93560-54012

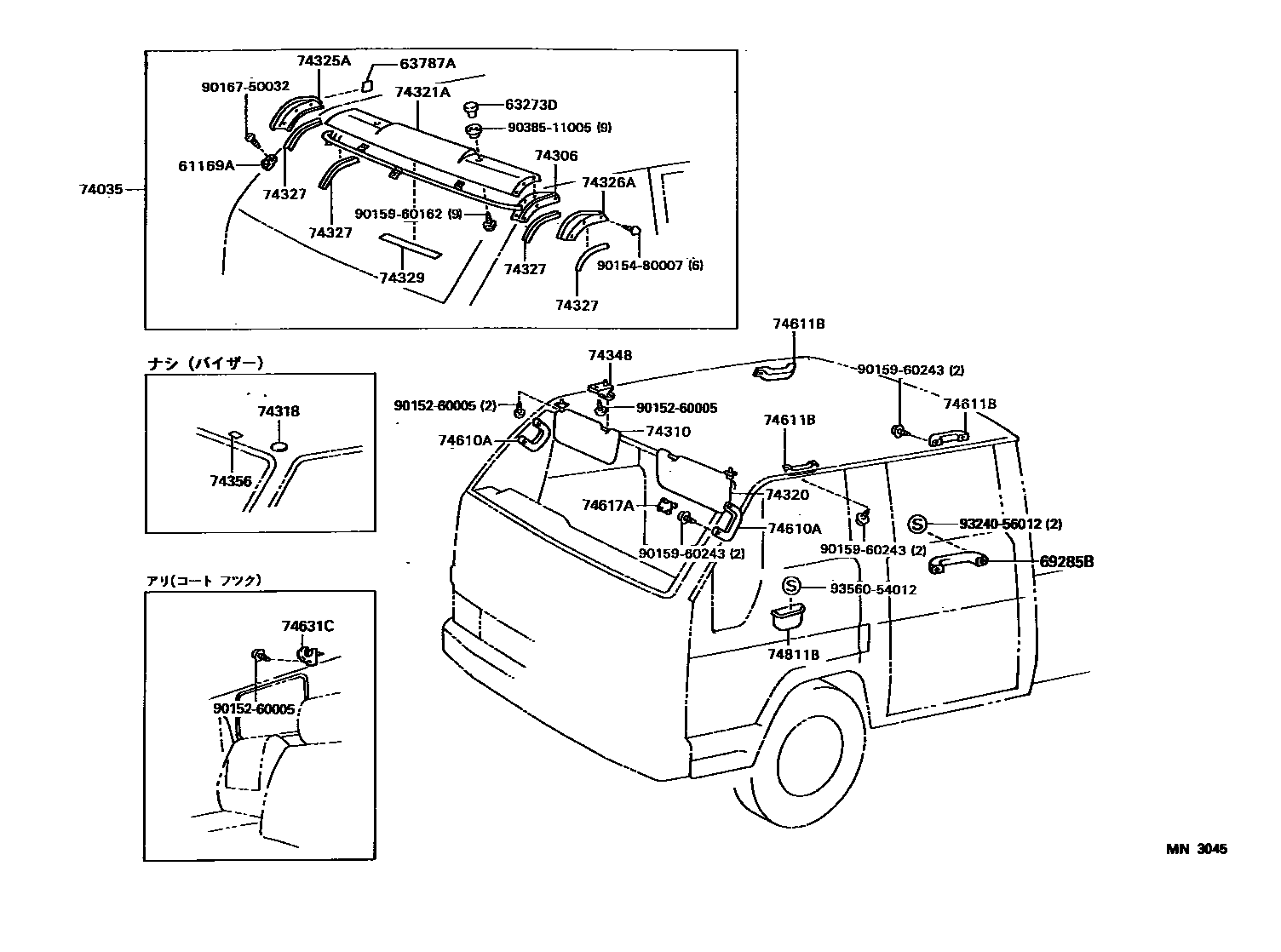

29 parts on this diagram · 1 diagram in section
