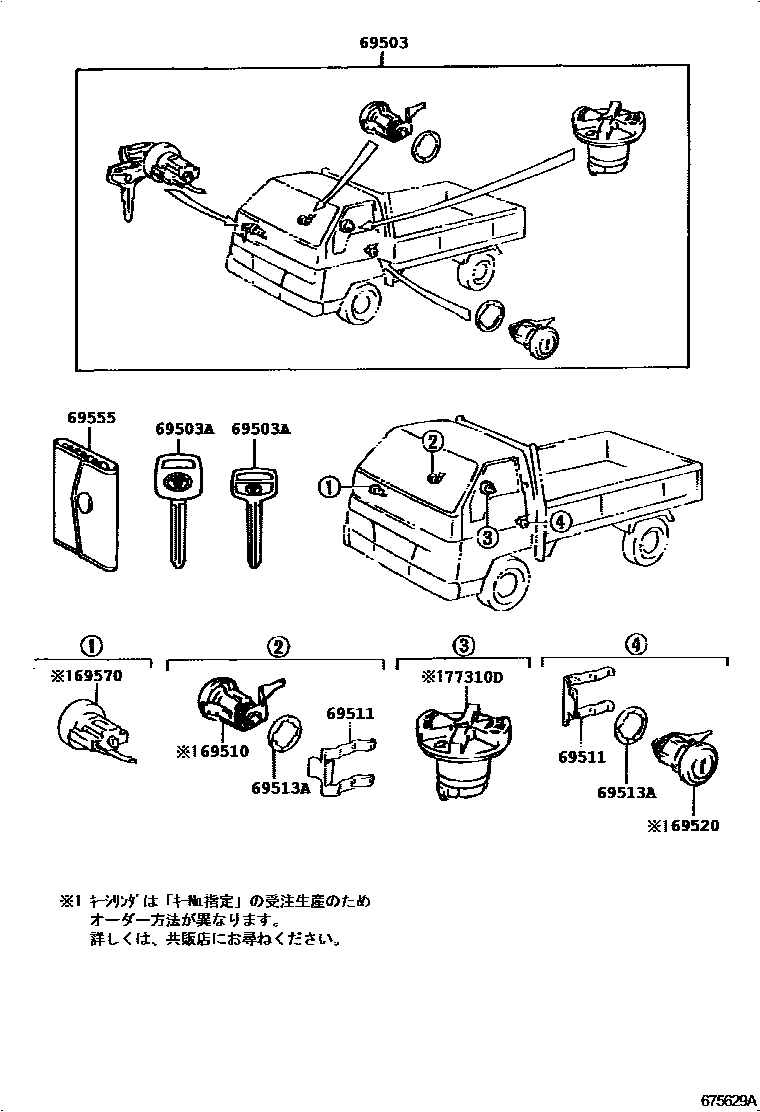

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69503-37020iLY101,111,151,161199505-199610

sub69503-37130

main69503-37050iYY101199505-199610

sub69503-37150

69503AKEY, BLANK

main90999-00185iLY101,111,151,161,YY101199505-199610

main90999-00186iLY101,111,151,161,YY101199505-199610

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-37010iLY101,111,151,161,YY101199505-199610

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-95400iLY101,111,151,161,YY101199505-199610

69513APAD, DOOR CYLINDER

main69513-32010iLY101,111,151,161,YY101199505-199610

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-37010iLY101,111,151,161,YY101199505-199610

69555COVER, KEY

main69555-20010iLY101,111,151,161,YY101199505-199610

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-37010iLY101,111,151,161,YY101199505-199610

sub69570-36011

77310DCAP ASSY, FUEL TANK

main77310-37010iYY101199505-199610

main77310-37020iLY101,111,151,161199505-199610

9 parts on this diagram · 1 diagram in section
