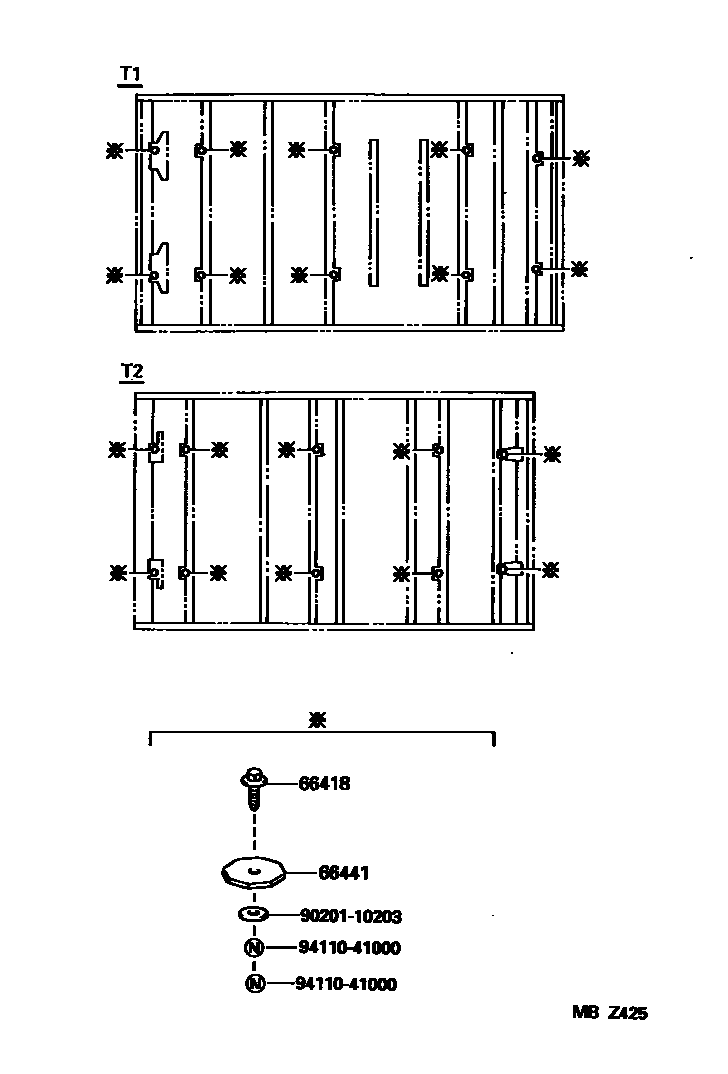

REAR BODY MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

66418BOLT, MOUNTING

main90109-10156iLY101,111,151..TB199505-199610

main90119-10102iLY101,YY101..TW2199505-199610

main90119-10102iLY111..T2..TS..MTM..CBU;LY101,YY101..T2..TS..CBU199512-199610

main90119-10490iLY151,161..(T2,T3)..TS..CBU;LY101,111,YY101..T3..TS..CBU199505-199610

main90119-10490iLY151,161..T2..TS..CBU199512-199610

66441SHIM, MOUNTING, NO.1

main90564-12013iLY151,161..T2..TS..CBU199512-199610

main90564-12013iLY151,161..(T2,T3)..TS..CBU;LY101,111,YY101..T3..TS..CBU199505-199610

main90564-15142iYY101..T2..IV;LY101..T2..ATM..IV199505-199610

main90564-15142iYY101..T2..IV;LY101..T2..ATM..IV199505-199610

main90564-15142iLY151,161..T2..TS..CBU199512-199610

main90564-15142iLY151,161..T2..TS..CBU199512-199610

9020110203

main90201-10203

9411041000

main94110-41000

4 parts on this diagram · 5 diagrams in section
