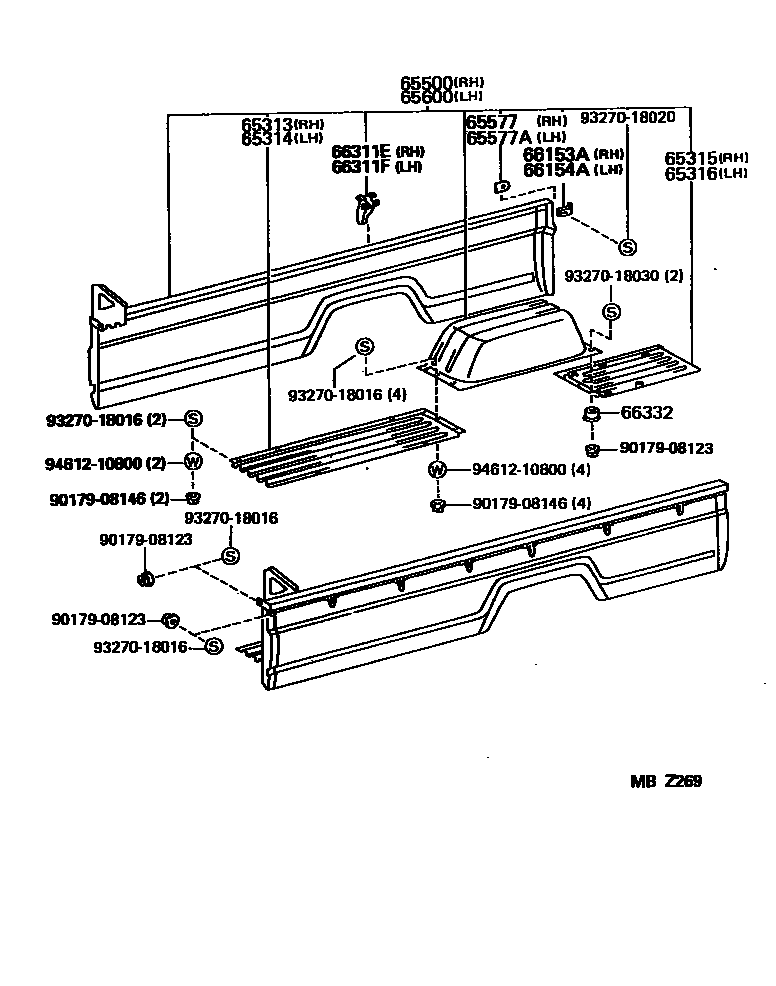

REAR BODY SIDE PANEL

0001 1 0002 1 0003 1

65313PANEL, FLOOR FRONT CORNER, RH

main65313-25020iLY101,151,YY101..TW2199505-199610

main65313-26020iLY101..T1199505-199610

65314PANEL, FLOOR FRONT CORNER, LH

main65314-25020iLY101..T1199505-199610

main65314-25030iLY101,151,YY101..TW2199505-199610

65315PANEL, FLOOR REAR CORNER, RH

main65315-25010iLY101,151,YY101..T1,TW2199505-199610

65316PANEL, FLOOR REAR CORNER, LH

main65316-25010iLY101,151,YY101..T1,TW2199505-199610

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-25050iLY101,151,YY101..(T2,T3)..TS..CBU199505-199610

sub65500-25051

main65500-25080iLY101,151,YY101..TW2199505-199610

main65500-25090iLY101..TB199505-199610

sub65500-37860

sub90950-01753

main65500-25100iLY111..TB199505-199610

sub65500-37840

sub90950-01753

main65500-25120iLY151..TB199505-199610

main65500-25130iLY101..T2..TB199505-199610

main65500-25140iLY101..T2..TB199505-199610

main65500-25150iLY111..T2..TB199505-199610

sub65500-37850

sub90950-01753

main65500-25160iLY111..T2..TB199505-199610

sub65500-37870

sub90950-01753

main65500-26050iLY111,161..TW1199505-199610

sub65500-26051

main65500-26060iLY111,161..(T2,T3)..TS..CBU199505-199610

sub65500-26061

main65500-26091iLY101..T1199505-199610

65577RETAINER, TAIL GATE LATCH FEMALE

main65577-95012iLY101,151,YY101..T1,TW2199505-199610

65577ARETAINER, TAIL GATE FEMALE

main65577-95012iLY101,151,YY101..T1,TW2199505-199610

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-25050iLY101,151,YY101..(T2,T3)..TS..CBU199505-199610

sub65600-25051

main65600-25080iLY101,151,YY101..TW2199505-199610

main65600-25090iLY101..TB199505-199610

sub65600-3V060

sub90950-01753

main65600-25100iLY111..TB199505-199610

sub65600-3V040

sub90950-01753

main65600-25120iLY151..TB199505-199610

main65600-25130iLY101..T2..TB199505-199610

main65600-25140iLY101..T2..TB199505-199610

main65600-25150iLY111..T2..TB199505-199610

sub65600-3V050

sub90950-01753

main65600-25160iLY111..T2..TB199505-199610

sub65600-3V070

sub90950-01753

main65600-26050iLY111,161..TW1199505-199610

sub65600-26051

main65600-26060iLY111,161..(T2,T3)..TS..CBU199505-199610

sub65600-26061

main65600-26090iLY101..T1199505-199610

66153ALATCH, TAIL GATE FEMALE, RH

main66153-26010iLY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU199505-199610

main66153-95012iLY101,151,YY101..T1,TW2199505-199610

66154ALATCH, TAIL GATE FEMALE, LH

main66153-95012iLY101,151,YY101..T1,TW2199505-199610

main66154-26010iLY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU199505-199610

66311EHOOK, ROPE

main66311-90K00iLY101,151,YY101..TW2199505-199610

66311FHOOK, ROPE, NO.2

main66311-90K00iLY101..T1199505-199610

66332CUSHION, RUBBER

main66332-95A00iLY101,151,YY101..T1,TW2199505-199610

9017908123

main90179-08123

9017908146

main90179-08146

9327018016

main93270-18016

9327018020

main93270-18020

9327018030

main93270-18030

9461210800

main94612-10800

19 parts on this diagram · 3 diagrams in section
