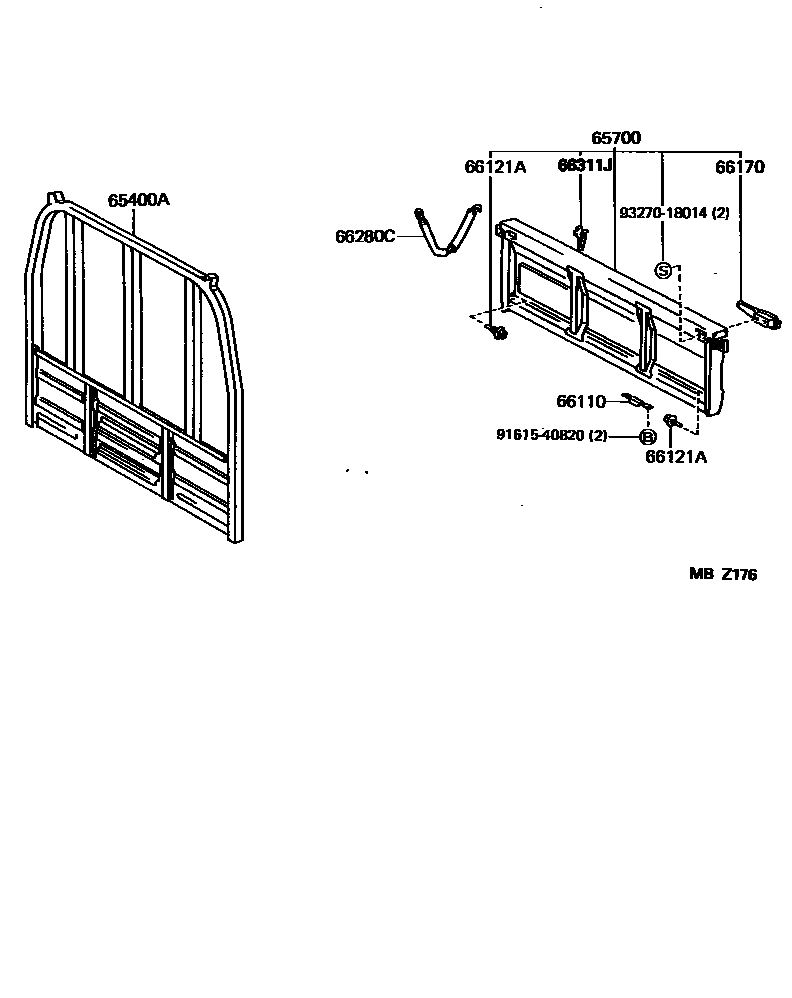

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0003 1

65400AGUARD ASSY, REAR BODY

main65400-25280iLY151..T3..TB199505-199610

main65400-25290iLY101..T2..TB199505-199610

main65400-25300iLY111..T2..TB199505-199610

main65400-25310iLY151..T2..TB199505-199610

main65400-25320iLY101..T3..TB199505-199610

main65400-25330iLY111..T3..TB199505-199610

main65400-26011iLY101,111,YY101..T2..TS..CBU199505-199610

main65400-26021iLY111..TW1199505-199610

main65400-26032iLY161..T3..CBU199505-199610

main65400-26041iLY161..TW1199505-199610

main65400-26060iLY101..T1199505-199610

main65400-26070iLY101,YY101..TW2199505-199610

main65400-26080iLY101,111,YY101..T3..TS..CBU199505-199610

main65400-26091iLY151..T3..TS..CBU199505-199610

main65400-26100iLY151..TW2199505-199610

main65400-95A15iLY151,161..T2..TS..CBU199505-199610

65700GATE ASSY, REAR BODY TAIL

main65700-25010iLY101,151,YY101..T1,TW2199505-199610

main65700-25030iLY101,111,151..TB199505-199610

sub65700-37110

main65700-26010iLY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU199505-199610

66110HINGE ASSY, TAIL GATE

main66110-26010iLY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU199505-199610

main66110-37010iLY101,111,151..TB199505-199610

sub66110-37012

main66110-95014iLY101,151,YY101..T1,TW2199505-199610

66121ABOLT, TAIL GATE MALE

main66121-95012iLY101,151,YY101..T1,TW2199505-199610

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95402iLY101,151,YY101..T1,TW2199505-199610

66280CCHAIN ASSY, TAIL GATE

main66280-25010iLY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU199505-199610

main66280-37010iLY101,151,YY101..T1,TW2199505-199610

main66280-37020iLY101,111,151..TB199505-199610

66311JHOOK, ROPE

main66311-90K00iLY101,151,YY101..T1,TW2199505-199610

9161540820

main91615-40820

9327018014

main93270-18014

9 parts on this diagram · 3 diagrams in section
