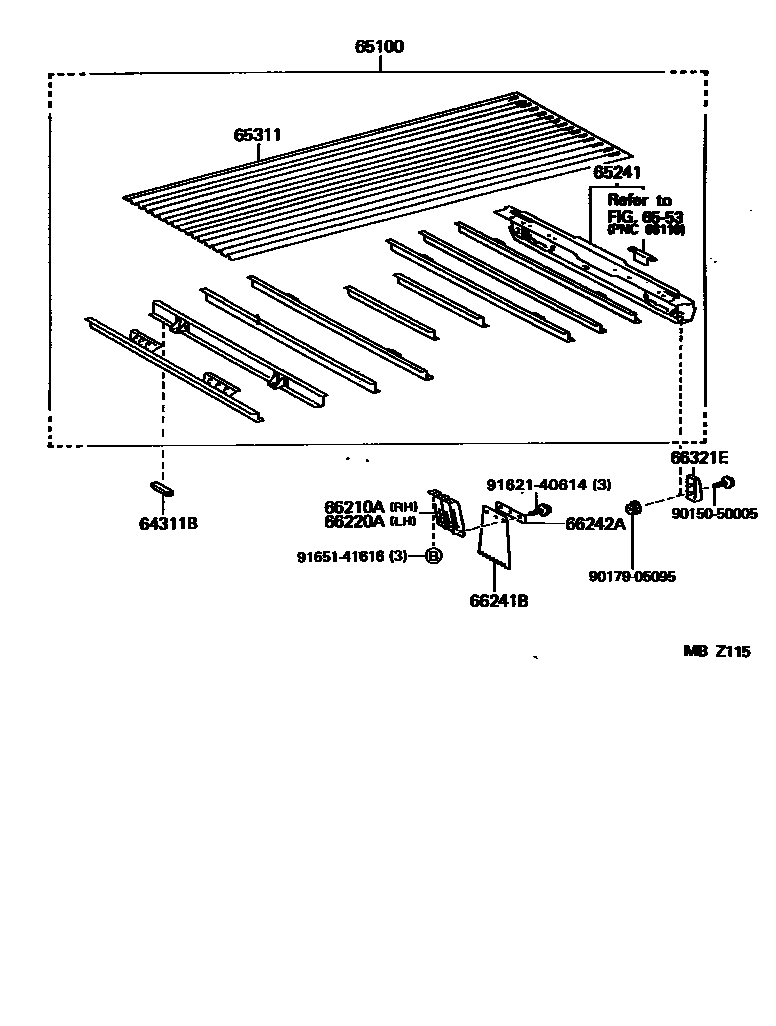

REAR BODY FLOOR & FENDER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1

64311BPROTECTOR, FUEL INLET

main58426-95700iLY101..T1199505-199610

65100FLOOR ASSY, REAR BODY

main65100-25210iLY101,YY101..T3..TS..MTM..CBU199512-199610

sub65100-2E320

main65100-25320iLY151..T3..TB199505-199610

main65100-25330iLY151..T2..TB199505-199610

main65100-25340iYY101..T2..IV;LY101..T2..ATM..IV199505-199610

main65100-25350iLY111..T2..TB199505-199610

main65100-25360iLY101..T3..TB199505-199610

main65100-25370iLY111..T3..TB199505-199610

main65100-25400iLY101..T2..TB199505-199610

main65100-25410iLY101..T2..TB199505-199610

main65100-25420iLY111..T2..TB199505-199610

main65100-25430iLY111..T2..TB199505-199610

main65100-25500iLY101,YY101..T2..TS..CBU199505-199610

main65100-25510iLY151..T2..TS..CBU199505-199610

sub65100-25770

main65100-25550iLY111..T3..TS..CBU199505-199610

main65100-25560iLY101,YY101..T2..TS..CBU199512-199610

sub65100-25500

main65100-25570iLY111..T2..TS..MTM..CBU199512-199610

sub65100-26041

main65100-25580iLY151..T2..TS..CBU199512-199610

sub65100-25770

main65100-25590iLY161..T2..CBU199512-199610

sub65100-25790

main65100-26010iLY111,161..TW1199505-199610

main65100-26020iLY161..T3..CBU199505-199610

main65100-26031iLY161..T2..CBU199505-199610

sub65100-25790

main65100-26041iLY111..T2..TS..CBU199505-199610

main65100-26090iLY101..T1199505-199610

main65100-26100iLY101,151,YY101..TW2199505-199610

main65100-95A23iLY101,151,YY101..T3..TS..CBU199505-199610

65241SILL, REAR CROSS

main65240-26010iLY101,151,YY101..T1,TW2199505-199610

main65240-95A08iLY101,111,151,161,YY101..(T3,TW1)..TS..CBU199505-199610

main65240-95A10iLY101,111,151,161,YY101..T2..TS..CBU199505-199610

65311PANEL, FLOOR, CENTER

main65311-25020iLY101,151,YY101..TW2199505-199610

main65311-26010iLY101..T1199505-199610

6553

66210AFENDER ASSY, REAR NO.1 RH

main66205-95A01iLY101,151,YY101..T1,TW2199505-199610

sub66205-25010

main66210-25020iYY101..T2..IV;LY101..T2..ATM..IV199505-199610

main66210-95A02iLY101,111,151,161,YY101..(T3,TW1)..TS..CBU199505-199610

sub66210-25050

main66210-95A03iLY101,111,151,161,YY101..T2..TS..CBU199505-199610

66220AFENDER ASSY, REAR NO.1 LH

main66205-95A01iLY101,151,YY101..T1,TW2199505-199610

sub66205-25010

main66220-25020iLY101,111,151..TB199505-199610

main66220-95A02iLY101,111,151,161,YY101..(T3,TW1)..TS..CBU199505-199610

sub66220-25050

main66220-95A03iLY101,111,151,161,YY101..T2..TS..CBU199505-199610

66241BBAFFLE, RUBBER

main66241-25040iYY101..T2..IV;LY101..T2..ATM..IV199505-199610

sub66241-25041

main66241-25040iLY101,111,151..TB199505-199610

sub66241-25041

main66241-37090iLY101,111,151..T3..TB199505-199508

main76625-25010iLY101,111,151,161,YY101..T2..TS..CBU199505-199610

sub76625-25011

main76625-37010iLY101,111,151,161,YY101..(T1,T3,TW1,TW2)..TS..CBU199505-199610

sub76625-25030

66242APLATE, BAFFLE RUBBER

main66242-37070iLY101,111,151..TB199505-199610

main66242-95012iLY101,111,151,161,YY101..(T1,T3,TW1,TW2)..TS..CBU199505-199610

main66242-95A00iLY101,111,151,161,YY101..T2..TS..CBU199505-199610

66321BUMPER, GATE RUBBER

main66321-92803iLY101,111,151..TB199505-199610

66321EBUMPER, GATE RUBBER

main66321-25010iLY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU199505-199610

sub66321-25020

main66321-92805iLY101,111..T2..TB199505-199610

main66321-92805iLY101,111..T2..TB199505-199610

main66321-95406iLY101,151,YY101..T1,TW2199505-199610

sub66321-37010

main66331-95010iLY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU199505-199610

main66331-95010iYY101..(T2,T3)..CBU;LY111..T2..TS..MTM..CBU;LY101..T3..TS..MTM..CBU;LY101,151,161..T2..TS..CBU199512-199610

9015050005

main90150-50005

9017905095

main90179-05095

9162140614

main91621-40614

9165141616

main91651-41616

15 parts on this diagram · 7 diagrams in section
