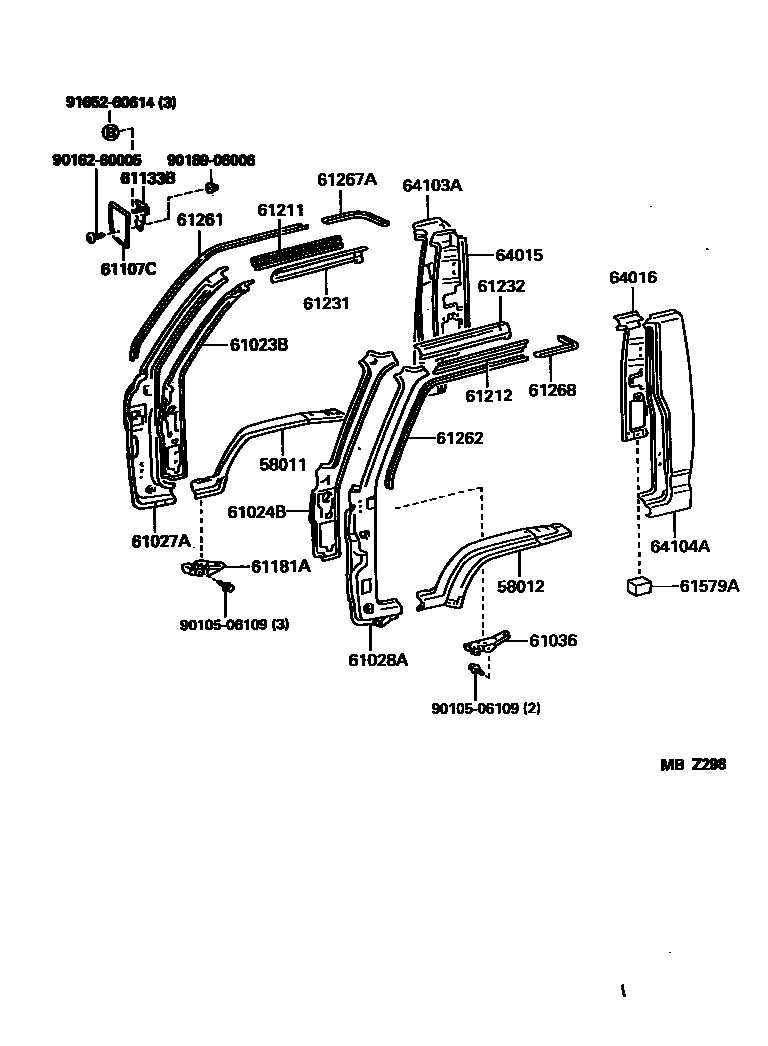

SIDE MEMBER

0001 1 0002 1

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58011-25010iLY101,111,151,161,YY101..T1,T2,T3199505-199610

sub58011-25020

main58011-37030iLY101,111,151,161,YY101..TW1,TW2199505-199610

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58012-25010iYY101..T2,T3199505-199610

sub58012-37030

main58012-25020iLY101,111,151,161..T1,T2,T3199505-199610

sub58012-25030

main58012-37040iLY101,111,151,161,YY101..TW1,TW2199505-199610

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-37010iLY101,111,151,161,YY101199505-199610

sub61023-37011

sub61181-37011

sub91643-80820

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-37030iLY101,111,151,161,YY101199505-199610

sub61024-37031

sub61036-37011

sub61036-37021

sub91643-80820

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-37031iLY101,111,151,161,YY101199505-199610

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-37031iLY101,111,151,161,YY101199505-199610

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-37010iLY101,111,151,161,YY101199505-199610

61107CCOVER SUB-ASSY, FRONT PILLAR DOOR HINGE, RH

main61107-37010iLY101,111,151,161,YY101199505-199610

61133BBRACKET, FRONT BODY PILLAR ,OUTER RH

main61133-37010iLY101,111,151,161,YY101199505-199610

61181ABRACKET, INSTRUMENT SIDE, RH

main61181-37010iLY101,111,151,161,YY101199505-199610

61211RAIL, ROOF SIDE, OUTER RH

main61211-95403iLY101,111,151,161,YY101..T1,T2,T3199505-199610

main61211-95404iLY101,111,151,161,YY101..TW1,TW2199505-199610

61212RAIL, ROOF SIDE, OUTER LH

main61212-95403iLY101,111,151,161,YY101..T1,T2,T3199505-199610

main61212-95404iLY101,111,151,161,YY101..TW1,TW2199505-199610

61231RAIL, ROOF SIDE, INNER RH

main61203-37020iLY101,111,151,161,YY101..TW1,TW2199505-199610

main61231-37010iLY101,111,151,161,YY101..T1,T2,T3199505-199610

sub61231-37020

61232RAIL, ROOF SIDE, INNER LH

main61204-37020iLY101,111,151,161,YY101..TW1,TW2199505-199610

main61232-37010iLY101,111,151,161,YY101..T1,T2,T3199505-199610

sub61232-37020

61261CHANNEL, ROOF DRIP, RH

main61261-37020iLY101,111,151,161,YY101199505-199610

61262CHANNEL, ROOF DRIP, LH

main61262-37020iLY101,111,151,161,YY101199505-199610

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-95400iLY101,111,151,161,YY101..T1,T2,T3199505-199610

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-95400iLY101,111,151,161,YY101..T1,T2,T3199505-199610

61579ASILENCER, CAB REAR PILLAR

main61579-37010iLY101,111,151,161,YY101..T1,T2,T3199505-199610

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main64015-37050iLY101,111,151,161,YY101..T1,T2,T3199505-199610

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main64016-37050iLY101,111,151,161,YY101..T1,T2,T3199505-199610

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main64103-37011iLY101,111,151,161,YY101..TW1,TW2199505-199610

main64103-95403iLY101,111,151,161,YY101..T1,T2,T3199505-199610

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main64104-37011iLY101,111,151,161,YY101..TW1,TW2199505-199610

main64104-95403iLY101,111,151,161,YY101..T1,T2,T3199505-199610

9010506109

main90105-06109

9016260005

main90162-60005

9018906006

main90189-06006

9165260614

main91652-60614

27 parts on this diagram · 2 diagrams in section
