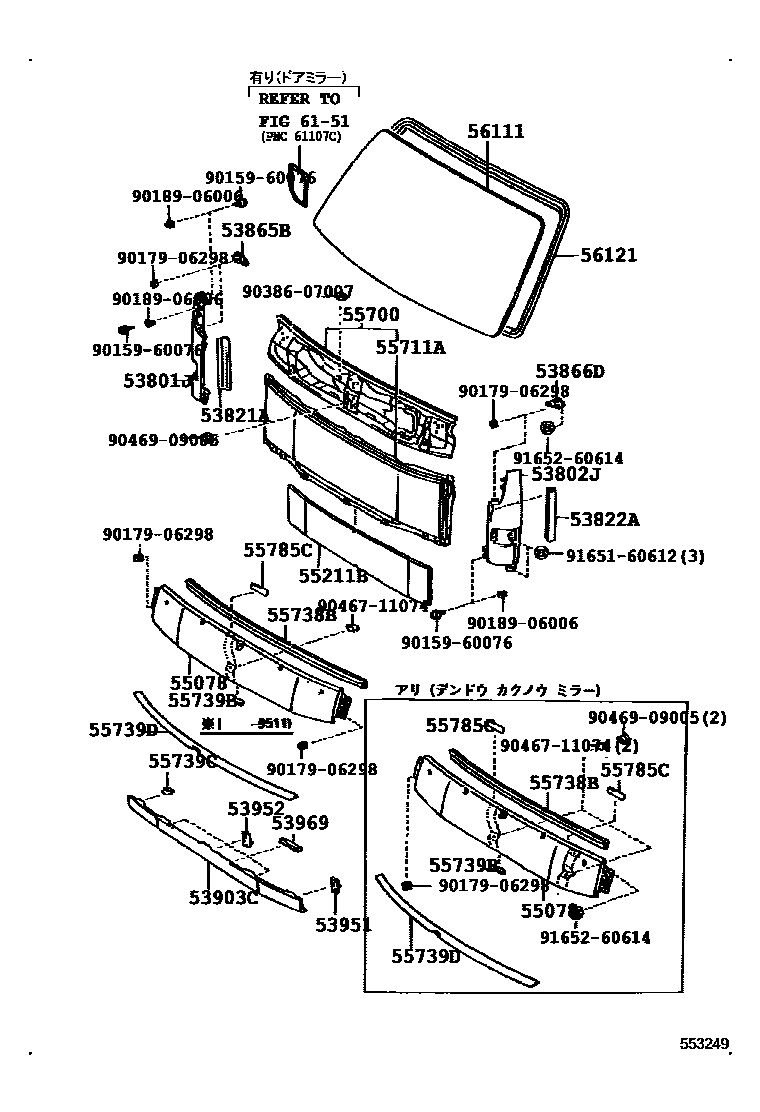

FRONT PANEL & WINDSHIELD GLASS

53801JPANEL SUB-ASSY, FRONT SIDE, RH

main53801-37010iLY101,111,151,161,YY101199505-199610

53802JPANEL SUB-ASSY, FRONT SIDE, LH

main53802-37010iLY101,111,151,161,YY101199505-199610

53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-37020iLY101,111,151,161,YY101199505-199610

53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53821-37020iLY101,111,151,161,YY101199505-199610

53865BPLATE, FRONT FENDER EXTENSION, RH

main53865-37010iLY101,111,151,161,YY101199505-199610

53866DPLATE, FRONT FENDER EXTENSION, LH

main53866-37010iLY101,111,151,161,YY101199505-199610

53903CGARNISH SUB-ASSY, FRONT PANEL, LOWER

main53903-37010iLY101,111,151,161,YY101199505-199610

53951SUPPORT, FRONT END PANEL, UPPER

main53951-37010iLY101,111,151,161,YY101199505-199610

53952SUPPORT, FRONT END PANEL, LOWER

main53952-37010iLY101,111,151,161,YY101199505-199610

53969PACKING, AIR CLEANER INLET, NO.4

main53969-37010iLY101,111,151,161,YY101199505-199610

55078COVER SUB-ASSY, FRONT PANEL

main55078-37010iLY101,111,151,161,YY101199505-199610

main55078-37030iLY101,111,151,161,YY101199505-199610

55211BSILENCER, FRONT PANEL

main55211-37010iLY101,111,151,161,YY101199505-199610

55700PANEL ASSY, FRONT

main55700-37011iLY101,111,151,161,YY101199505-199610

main55700-37030iLY101,111,151,161,YY101199505-199610

55711APANEL, FRONT, LOWER

main55711-37030iLY101,111,151,161,YY101199505-199610

55738BPROTECTOR, FRONT PANEL COVER, NO.1

main55738-37010iLY101,111,151,161,YY101199505-199610

main55738-37020iLY101,111,151,161,YY101199505-199610

55739BPROTECTOR, FRONT PANEL COVER, NO.2

main55739-37010iLY101,111,151,161,YY101199505-199511

55739CPROTECTER, FRONT PANEL COVER, NO.2

main55739-37010iLY101,111,151,161,YY101199505-199610

55739DPROTECTOR, FRONT PANEL COVER, NO.2

main55739-37020iLY101,111,151,161,YY101199505-199610

main55739-37030iLY101,111,151,161,YY101199505-199610

55785CPAD, FRONT PANEL COVER

main55785-37010iLY101,111,151,161,YY101199505-199603

main82712-37010iLY101,111,151,161,YY101199603-199610

56111GLASS, WINDSHIELD

main56111-37011iLY101,111,151,161,YY101199505-199610

main56111-37021iLY101,111,151,161,YY101..T1,T2,T3199505-199610

56121WEATHERSTRIP, WINDSHIELD

main56121-37010iLY101,111,151,161,YY101199505-199610

6151SIDE MEMBER

→ Go to FIG 61-51

9015960076

main90159-60076

9017906298

main90179-06298

9018906006

main90189-06006

9038607007

main90386-07007

9046711074

main90467-11074

9046909005

main90469-09005

9165160612

main91651-60612

9165260614

main91652-60614

30 parts on this diagram · 1 diagram in section
