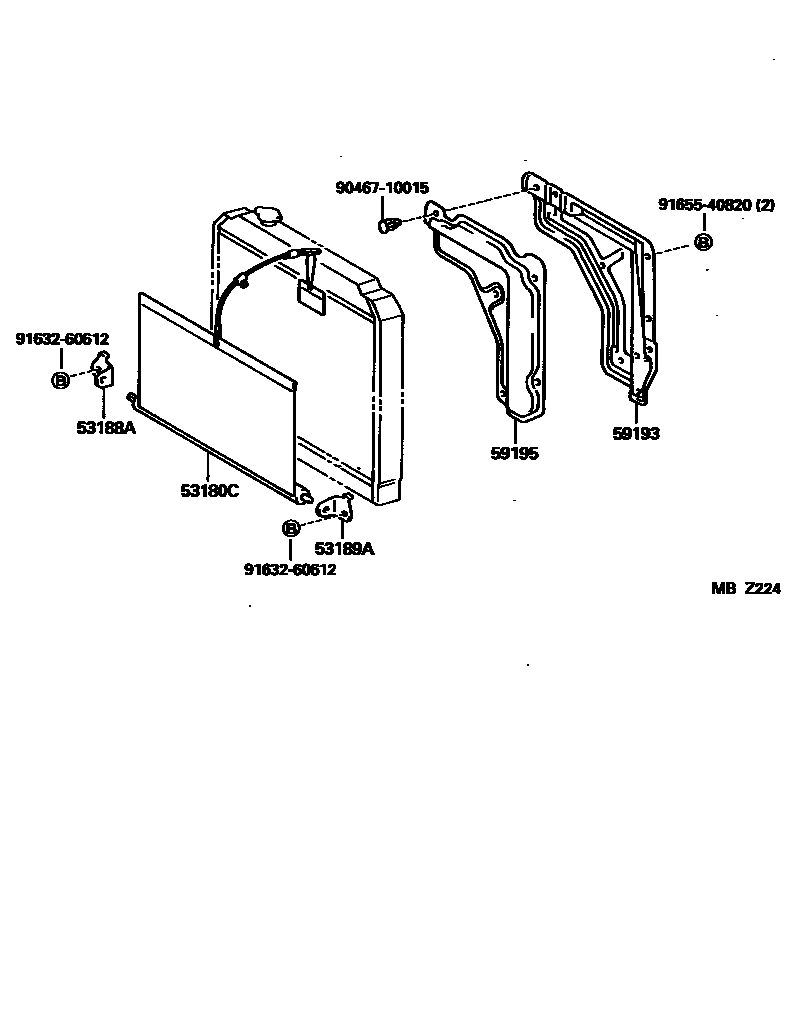

RADIATOR SUPPORT & WIND GUIDE

53180CSHUTTER ASSY, RADIATOR

main53180-25010iLY101,111,151,161199505-199610

53188ABRACKET, RADIATOR SHUTTER SUPPORT, RH

main53188-37010iLY101,111,151,161199505-199610

53189ABRACKET, RADIATOR SHUTTER SUPPORT, LH

main53189-37010iLY101,111,151,161199505-199610

59193GUARD, NOISE SHUTTER

main59193-25010iLY101,111,151,161..T1,T2,T3199505-199606

sub59193-25030

main59193-25030iLY101,111,151,161..T1,T2,T3199606-199610

59195INSULATOR, NOISE SHUTTER

main59195-25030iLY101,111,151,161..T1,T2,T3199606-199610

main59195-95A00iLY101,111,151,161..T1,T2,T3199505-199606

sub59195-25030

9046710015

main90467-10015

9163260612

main91632-60612

9165540820

main91655-40820

8 parts on this diagram · 1 diagram in section
