FRAME

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

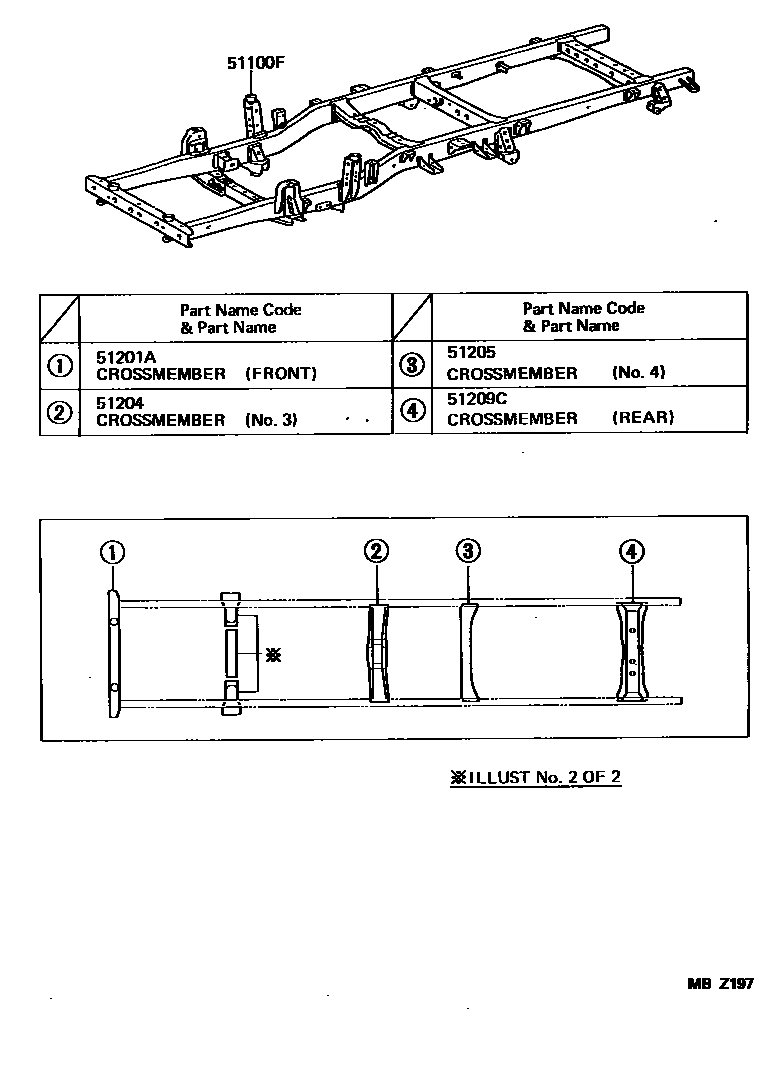

51100FFRAME SUB-ASSY

main51001-26293iYY101..T3199505-199610

main51001-26303iLY101..T1,T3199505-199610

main51001-26333iYY101..TW2199505-199610

main51001-26343iLY101..TW2199505-199610

main51001-26373iYY101..T2199505-199610

main51001-26383iLY101..T2199505-199610

main51001-26502iLY151..T2,T3199505-199610

main51001-26512iLY151..TW2199505-199610

main51001-26541iLY111..T2199505-199610

main51001-26561iLY111..TW1199505-199610

main51001-26571iLY161..T2,T3199505-199610

main51001-26581iLY161..TW1199505-199610

main51002-25870iLY111..T3199505-199610

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-25090iLY101,111,YY101199505-199610

main51201-25100iLY151,161199505-199610

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-26120iLY101,111,YY101199505-199610

main51203-26131iLY151,161199505-199610

sub51203-26132

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-26030iLY101,111,151,161,YY101199505-199606

sub51204-26031

main51204-26031iLY101,111,151,161,YY101199606-199610

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-26030iLY101,111,151,161,YY101199505-199610

5 parts on this diagram · 6 diagrams in section
