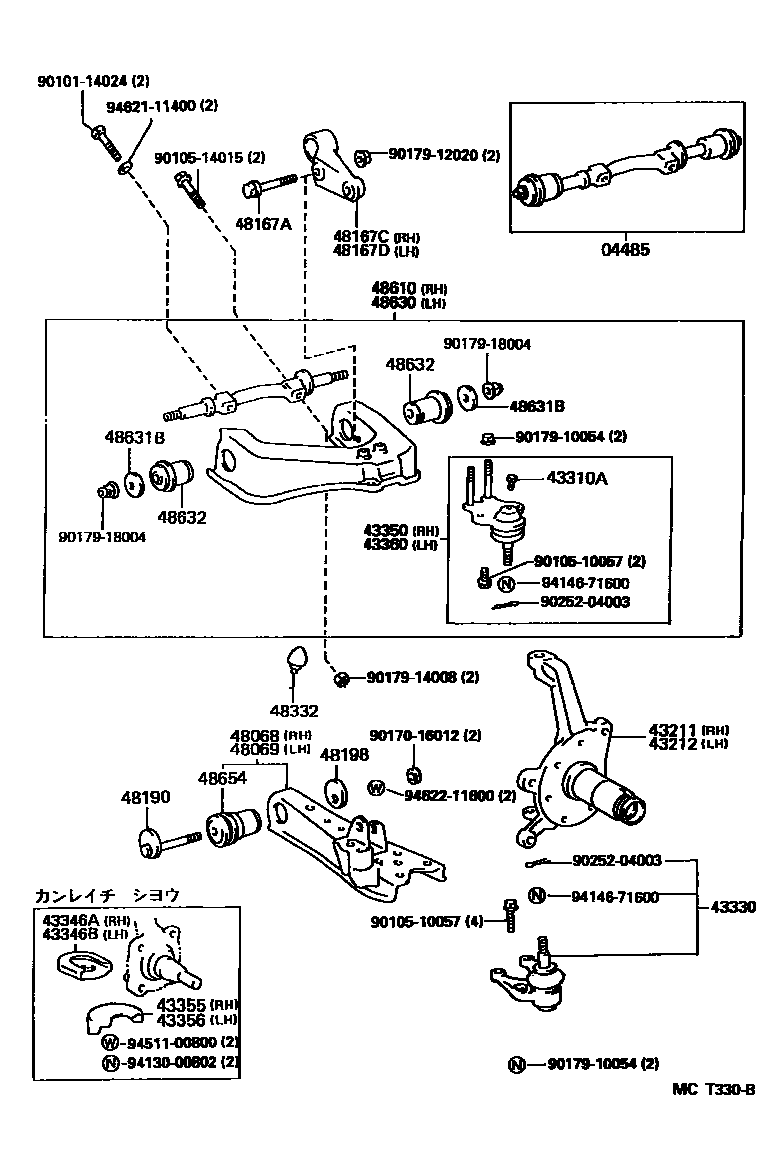

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-26050iLY101,111,YY101199505-199610

sub04485-26120

43211KNUCKLE, STEERING, RH

main43201-26030iLY151,161199505-199610

sub43201-26031

sub90304-76005

main43211-26051iLY101,111,YY101199505-199610

43212KNUCKLE, STEERING, LH

main43202-26030iLY151,161199505-199610

sub43202-26031

sub90304-76005

main43212-26021iLY101,111,YY101199505-199610

43310APLUG (FOR BALL JOINT)

main90345-06014iLY101,111,151,161,YY101199505-199610

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29295iLY101,111,YY101199505-199610

sub43330-29515

main43330-29335iLY151,161199505-199610

43346APROTECTOR, FRONT LOWER BALL JOINT DUST COVER, RH

main43346-26010iLY101,111,YY101199505-199610

43346BPROTECTOR, FRONT LOWER BALL JOINT DUST COVER, LH

main43346-26010iLY101,111,YY101199505-199610

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-29105iLY101,111,YY101199505-199508

43355DEFLECTOR, LOWER ARM ICE, RH

main43355-26010iLY101,111,YY101199505-199610

43356DEFLECTOR, LOWER ARM ICE, LH

main43355-26010iLY101,111,YY101199505-199610

43360JOINT ASSY, FRONT UPPER BALL, LH

main43350-29105iLY101,111,YY101199505-199508

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-26022iLY101,111,YY101199505-199610

main48068-26080iLY151,161199505-199610

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-26022iLY101,111,YY101199505-199610

main48069-26080iLY151,161199505-199610

48167ABOLT(FOR TORQUE ARM SETTING)

main90105-12200iLY151,161199505-199610

main90105-12284iLY101,111,YY101199505-199610

main90105-12285iLY101,111,YY101199505-199610

48167CARM, FRONT SUSPENSION TORQUE, RH

main48106-25010iLY151,161199505-199610

sub48106-25020

main48106-26050iLY101,111,YY101199505-199610

48167DARM, FRONT SUSPENSION TORQUE, LH

main48106-25010iLY151,161199505-199610

sub48106-25020

main48106-26050iLY101,111,YY101199505-199610

48190CAM ASSY, CAMBER ADJUST

main48190-26020iLY101,111,YY101199505-199610

48198CAM, CAMBER ADJUST, NO.2

main48198-26010iLY101,111,YY101199505-199610

48332BUMPER, FRONT SPRING, NO.2

main48332-26020iLY151,161199505-199610

main48332-35020iLY101,111,YY101199505-199610

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-29105iLY101,111,YY101199505-199508

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-29095iLY101,111,YY101199505-199508

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02142iLY101,111,YY101199505-199610

REAR

main90948-02143iLY101,111,YY101199505-199610

FRONT

48632BUSH, UPPER ARM

main48632-26010iLY101,111,YY101199505-199610

FRONT

main48635-26010iLY101,111,YY101199505-199610

REAR

48654BUSH, LOWER ARM

main48061-26010iLY101,111,YY101199505-199610

main48061-26020iLY151,161199505-199610

9010114024

main90101-14024

9010510057

main90105-10057

9010514015

main90105-14015

9017016012

main90170-16012

9017910054

main90179-10054

9017912020

main90179-12020

9017914008

main90179-14008

9017918004

main90179-18004

9025204003

main90252-04003

9413000802

main94130-00802

9414671600

main94146-71600

9451100800

main94511-00800

9462111400

main94621-11400

9462211600

main94622-11600

38 parts on this diagram · 3 diagrams in section
