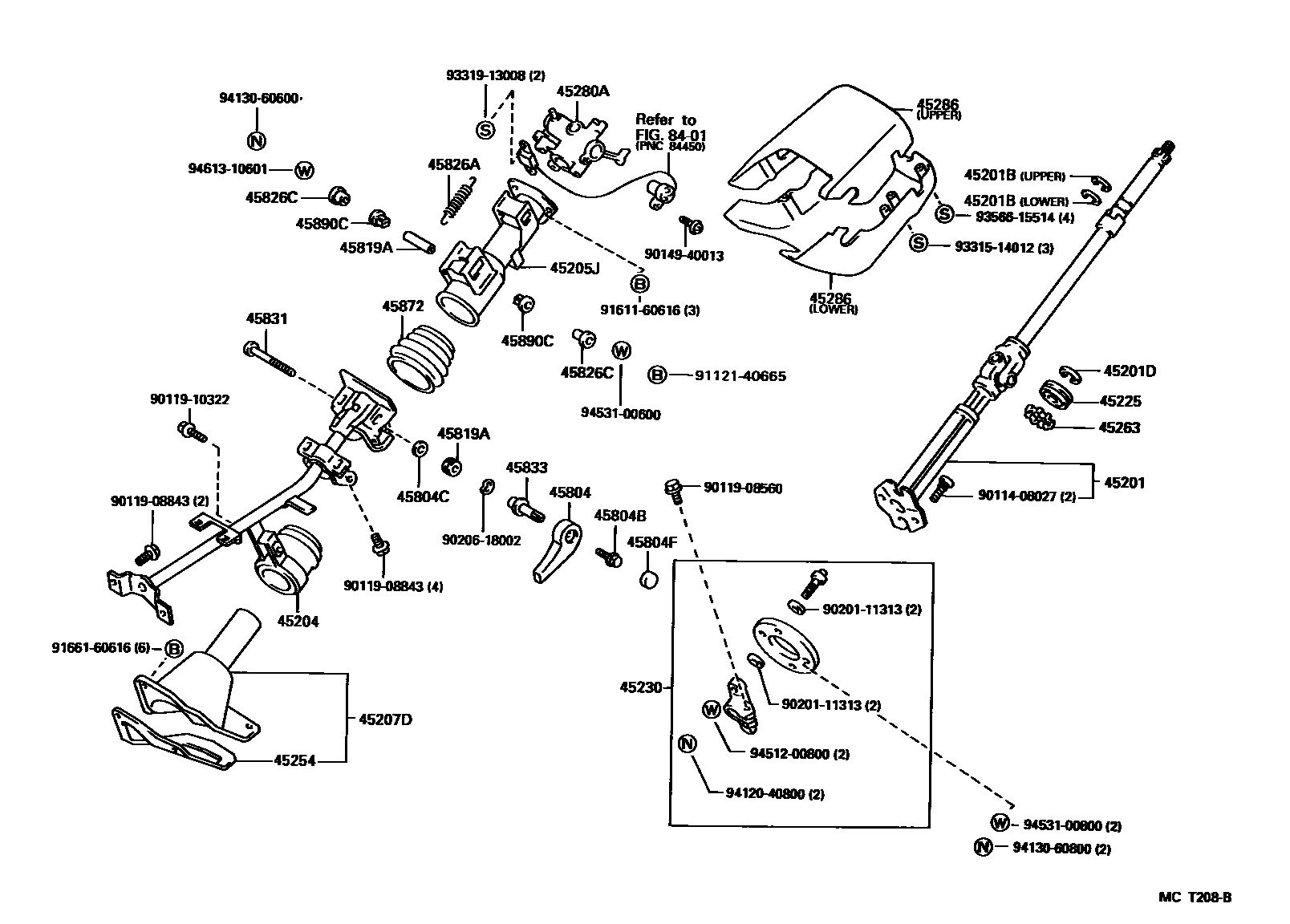

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-25010iLY101,111,151,161,YY101199505-199610

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iLY101,111,151,161,YY101199505-199610

main90520-17269iLY101,111,151,161,YY101199505-199610

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iLY101,111,151,161,YY101199505-199610

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-25010iLY101,111,151,161,YY101199505-199610

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-37030iLY101,111,151,161,YY101199505-199610

45207DCOVER SUB-ASSY, MAIN SHAFT JOINT

main45207-25050iLY101,111,151,161,YY101199505-199610

45225BLOCK, BEARING

main45225-26010iLY101,111,151,161,YY101199505-199610

45230COUPLING ASSY, FLEXIBLE

main45230-25022iLY101,111,YY101199505-199610

main45230-26070iLY151,161199505-199610

NO.1

main45230-27080iLY151,161199505-199610

NO.2

45254SHIELD, STEERING COLUMN HOLE

main45254-36090iLY101,111,151,161,YY101199505-199610

45263RING, STEERING COLUMN, NO.1

main45263-32010iLY101,111,151,161,YY101199505-199610

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45307-37010iLY101,111..ATM199505-199610

main45307-37020iLY101,111,151,161,YY101..MTM199505-199610

45286COVER, STEERING COLUMN

main45286-37040-B0iLY101,111,151,161,YY101199505-199610

BLUISH GRAY,TRIM1#,UPPER

sub45286-37040

main45287-37030-B0iLY101,111,151,161,YY101199505-199610

BLUISH GRAY,TRIM1#,LOWER

45804LEVER SUB-ASSY, STEERING TILT

main45804-36010-B0iLY101,111,151,161,YY101199505-199610

GRAY,TRIM1#

sub45804-36010

45804BBOLT(FOR STEERING TILT LEVER)

main90105-10204iLY101,111,151,161,YY101199505-199610

45804CWASHER, PLATE(FOR STEERING TILT LEVER)

main90201-10489iLY101,111,151,161,YY101199505-199610

45804FPLUG(FOR STEERING TILT LEVER)

main90339-28001-B0iLY101,111,151,161,YY101199505-199610

GRAY,TRIM1#

45819ACOLLAR(FOR TILT LEVER RETAINER)

main90386-19004iLY101,111,151,161,YY101199505-199610

main90387-06037iLY101,111,151,161,YY101199505-199610

L=47.5

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90507-18018iLY101,111,151,161,YY101199505-199610

45826CBUSH(FOR STEERING TILT LEVER)

main90386-10024iLY101,111,151,161,YY101199505-199610

45831BOLT, TILT LEVER LOCK, NO.1

main45831-36010iLY101,111,151,161,YY101199505-199610

45833NUT, TILT STEERING ADJUSTING, NO.1

main45833-36010iLY101,111,151,161,YY101199505-199610

45872COVER, STEERING COLUMN TUBE

main45872-36040iLY101,111,151,161,YY101199505-199610

45890CCOLLAR(FOR TILT STEERING PAWL)

main90389-12009iLY101,111,151,161,YY101199505-199610

8401

9011408027

main90114-08027

9011908560

main90119-08560

9011908843

main90119-08843

9011910322

main90119-10322

9014940013

main90149-40013

9020111313

main90201-11313

9020618002

main90206-18002

9112140665

main91121-40665

9161160616

main91611-60616

9166160616

main91661-60616

9331514012

main93315-14012

9331913008

main93319-13008

9356615514

main93566-15514

9412040800

main94120-40800

9413060600

main94130-60600

9413060800

main94130-60800

9451200800

main94512-00800

9453100600

main94531-00600

9453100800

main94531-00800

9461310601

main94613-10601

44 parts on this diagram · 3 diagrams in section
