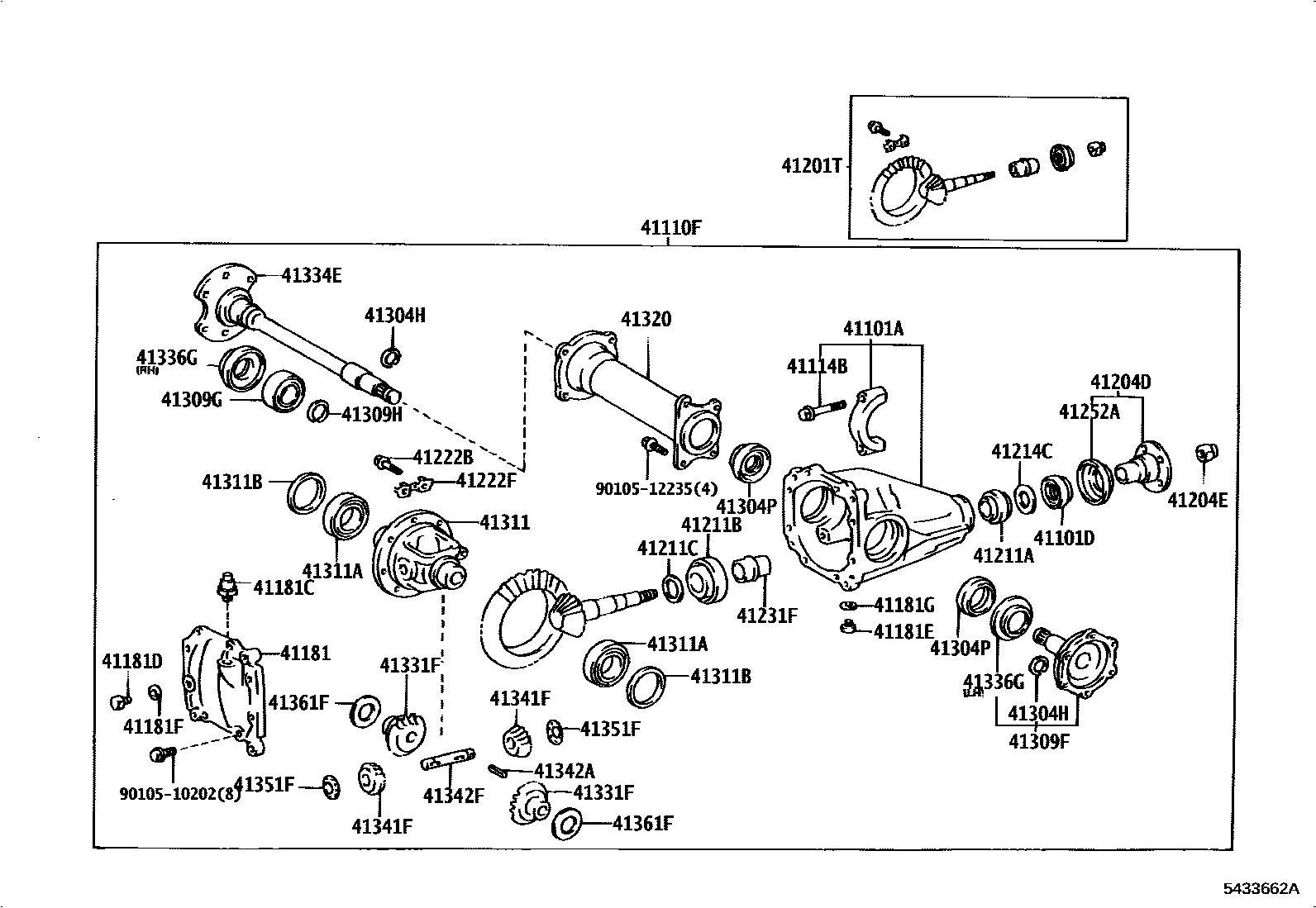

FRONT AXLE HOUSING & DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
41114BBOLT, FRONT DIFFERENTIAL BEARING CAP
41181COVER, FRONT DIFFERENTIAL CARRIER
41181CPLUG, BREATHER (FOR FRONT DIFFERENTIAL CARRIER COVER)
41181DPLUG (FOR FRONT DIFFERENTIAL FILLER)
41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)
41181FGASKET (FOR FRONT DIFFERENTIAL FILLER PLUG)
41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211CGEAR, DIFFERENTIAL RING
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41304PSEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41309FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH
41309GBEARING (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41309HRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41311CASE, FRONT DIFFERENTIAL
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
41320TUBE ASSY, FRONT DIFFERENTIAL
41331FGEAR, FRONT DIFFERENTIAL SIDE
41334ESHAFT, FRONT DIFFERENTIAL SIDE GEAR
41336GCOVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT)
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
9010510202
9010512235
40 parts on this diagram · 1 diagram in section
