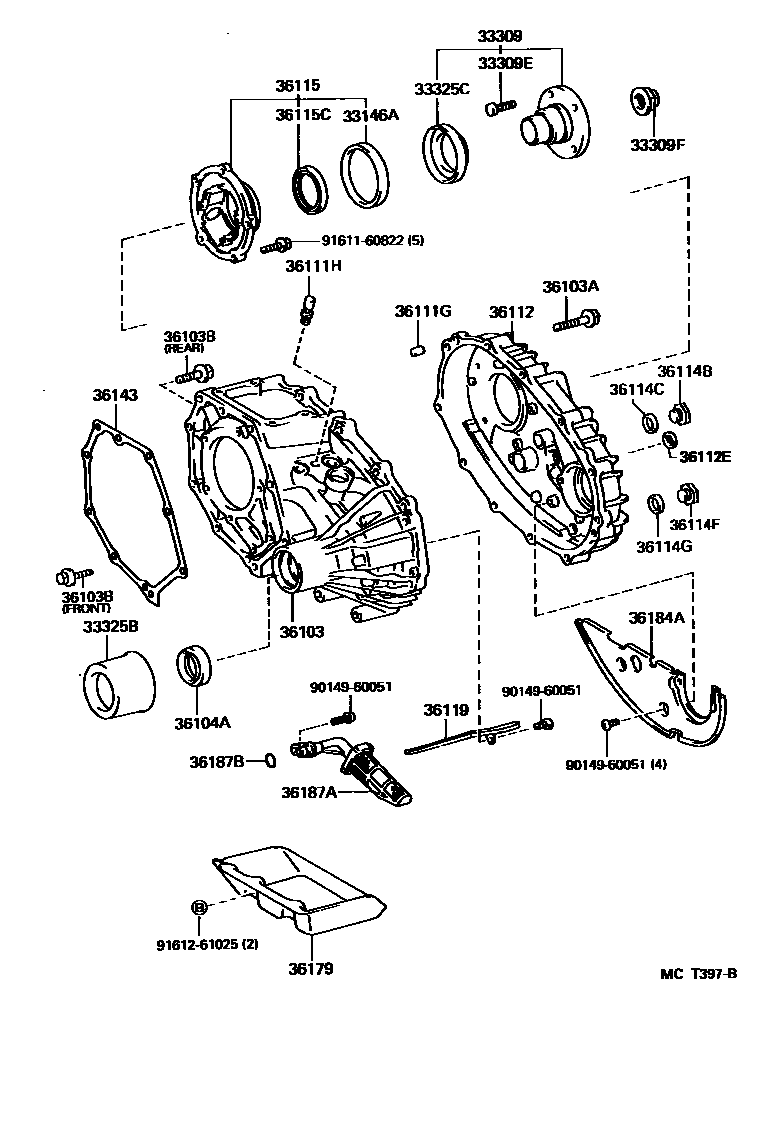

TRANSFER CASE & EXTENSION HOUSING
33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33309EBOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33309FNUT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33325BDEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING)
33325CDEFLECTOR, DUST (FOR TRANSFER EXTENSION REAR HOUSING)
36103CASE SUB-ASSY, TRANSFER
36103ABOLT (FOR TRANSFER CASE)
36104ASEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT)
sub90311-37003
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36112CASE, TRANSFER, REAR
36112ESEAL, OIL (FOR TRANSFER REAR CASE)
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36115HOUSING, TRANSFER EXTENSION
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
sub90311-52021
36119RECEIVER, TRANSFER OIL, NO.1
36143GASKET, TRANSFER CASE, FRONT
36179PROTECTOR, TRANSFER CASE LOWER
36184ASEPARATOR, TRANSFER OIL
36187ASTRAINR, TRANSFER OIL, NO.1
36187BRING, O (FOR TRANSFER OIL STRAINER)
9014960051
main90149-60051
9161160822
main91611-60822
9161261025
main91612-61025
29 parts on this diagram · 1 diagram in section
