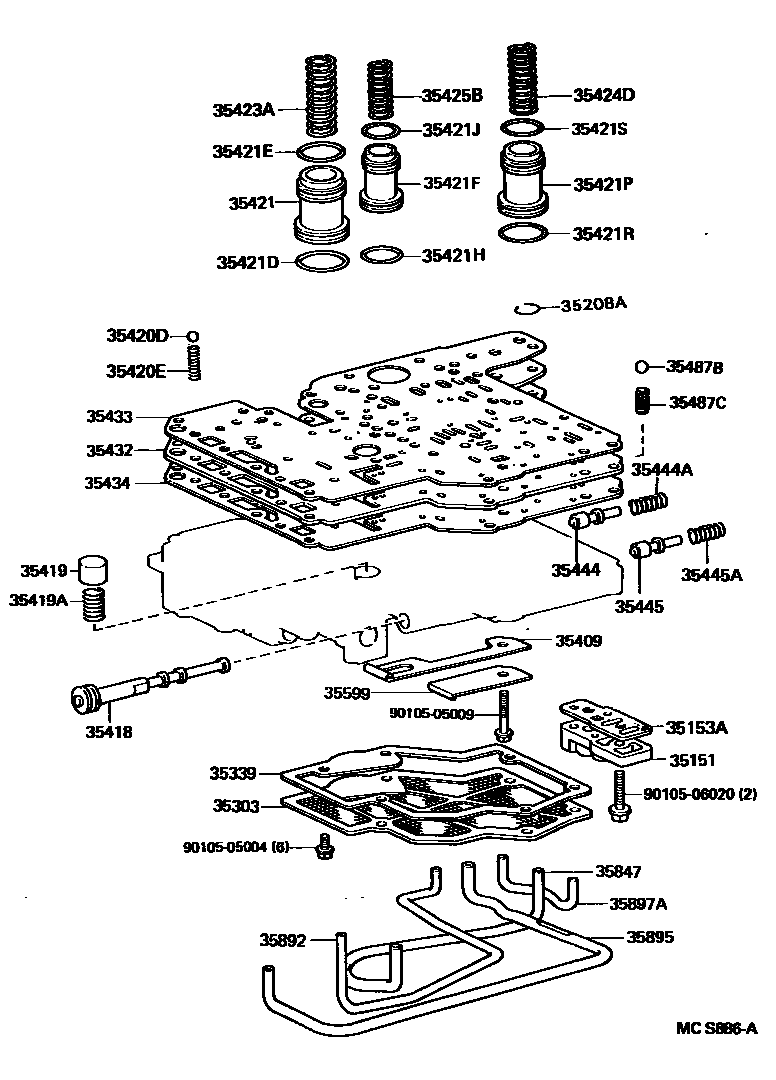

VALVE BODY & OIL STRAINER (ATM)
35151COVER, TRANSMISSION CASE, LOWER
35153AGASKET, TRANSMISSION CASE LOWER COVER
35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
35303STRAINER SUB-ASSY, OIL
35339GASKET, OIL STRAINER
35409SPRING SUB-ASSY, MANUAL DETENT
35418VALVE, MANUAL
35419VALVE, CHECK, NO.1
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
35420BODY ASSY, LOWER VALVE
35420DBALL (FOR LOWER VALVE BODY)
35420ESPRING (FOR LOWER VALVE BODY)
35421PISTON, ACCUMULATOR, NO.1
35421DRING (FOR ACCUMULATOR PISTON NO.1)
35421ERING (FOR ACCUMULATOR PISTON NO.1)
35421FPISTON, ACCUMULATOR, NO.2
35421HRING (FOR ACCUMULATOR PISTON NO.2)
35421JRING (FOR ACCUMULATOR PISTON NO.2)
35421PPISTON, ACCUMULATOR, NO.3
35421RRING (FOR ACCUMULATOR PISTON NO.3)
35421SRING (FOR ACCUMULATOR PISTON NO.3)
35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35425SEAT, PRESSURE REGULATOR VALVE SLEEVE
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35432PLATE, VALVE BODY, NO.1
35433GASKET, VALVE BODY, NO.1
35434GASKET, VALVE BODY, NO.2
35444VALVE, INTERMEDIATE MODULATOR
35444ASPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)
35445VALVE, LOW MODULATOR
35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)
35487BBALL, CHECK, NO.4
35487CSPRING, COMPRESSION (FOR CHECK BALL)
35599COVER, MANUAL DETENT SPRING
35847TUBE, TRANSMISSION LUBE APPLY
35892TUBE, OVERDRIVE BRAKE
35895TUBE, FRONT CLUTCH APPLY
35897ATUBE, 1ST & REVERSE BRAKE, NO.1
9010505004
9010505009
9010506020
42 parts on this diagram · 3 diagrams in section
