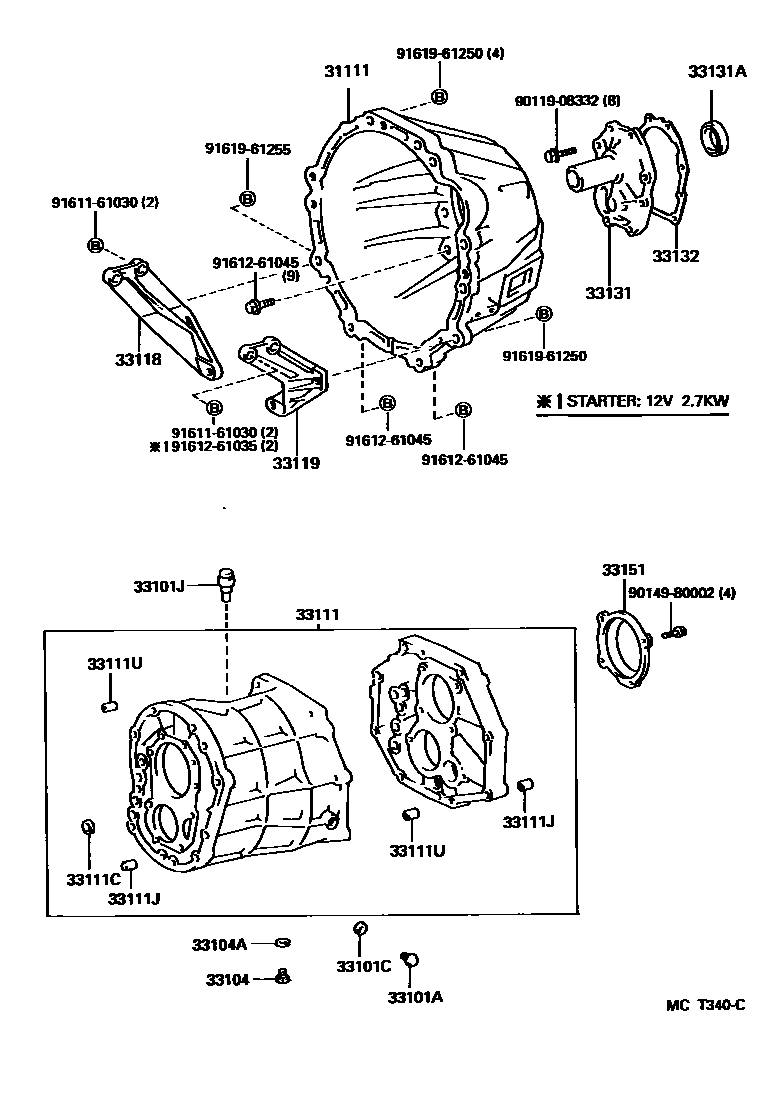

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1

31111HOUSING, CLUTCH

main31111-22114iLY101,111..MTM199505-199610

main31111-26020iLY151,161199505-199610

main31111-30190iYY101199505-199610

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iLY101,111,151,161,YY101..MTM199505-199610

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iLY101,111,151,161,YY101..MTM199505-199610

33101JPLUG, BREATHER

main90930-03085iLY101,111,151,161,YY101..MTM199505-199610

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iLY101,111,151,161,YY101..MTM199505-199610

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iLY101,111,151,161,YY101..MTM199505-199610

33111CASE, MANUAL TRANSMISSION

main33101-26040iLY151,161199505-199610

sub33101-26041

main33101-28020iLY101,111,YY101..MTM199505-199610

sub33101-35060

sub90341-18032

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iLY151,161199505-199610

main96411-41800iLY151,161199505-199610

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iLY151,161199505-199610

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iLY101,111,151,161,YY101..MTM199505-199610

main90253-15001iLY101,111,YY101..MTM199505-199610

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLY101,111,151,161199505-199610

main33118-36031iYY101199505-199610

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLY101,111199505-199610

main33119-26010iLY151,161199505-199610

sub33119-25060

main33119-36030iYY101199505-199610

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iLY101,111,YY101..MTM199505-199610

main33131-35031iLY151,161199505-199610

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iLY101,111,YY101..MTM199505-199610

main90311-32012iLY151,161199505-199610

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLY101,111,YY101..MTM199505-199610

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35020iLY151,161199505-199610

main33151-35030iLY101,111,YY101..MTM199505-199610

9011908332

main90119-08332

9014980002

main90149-80002

9161161030

main91611-61030

9161261035

main91612-61035

9161261045

main91612-61045

9161961250

main91619-61250

9161961255

main91619-61255

23 parts on this diagram · 3 diagrams in section
