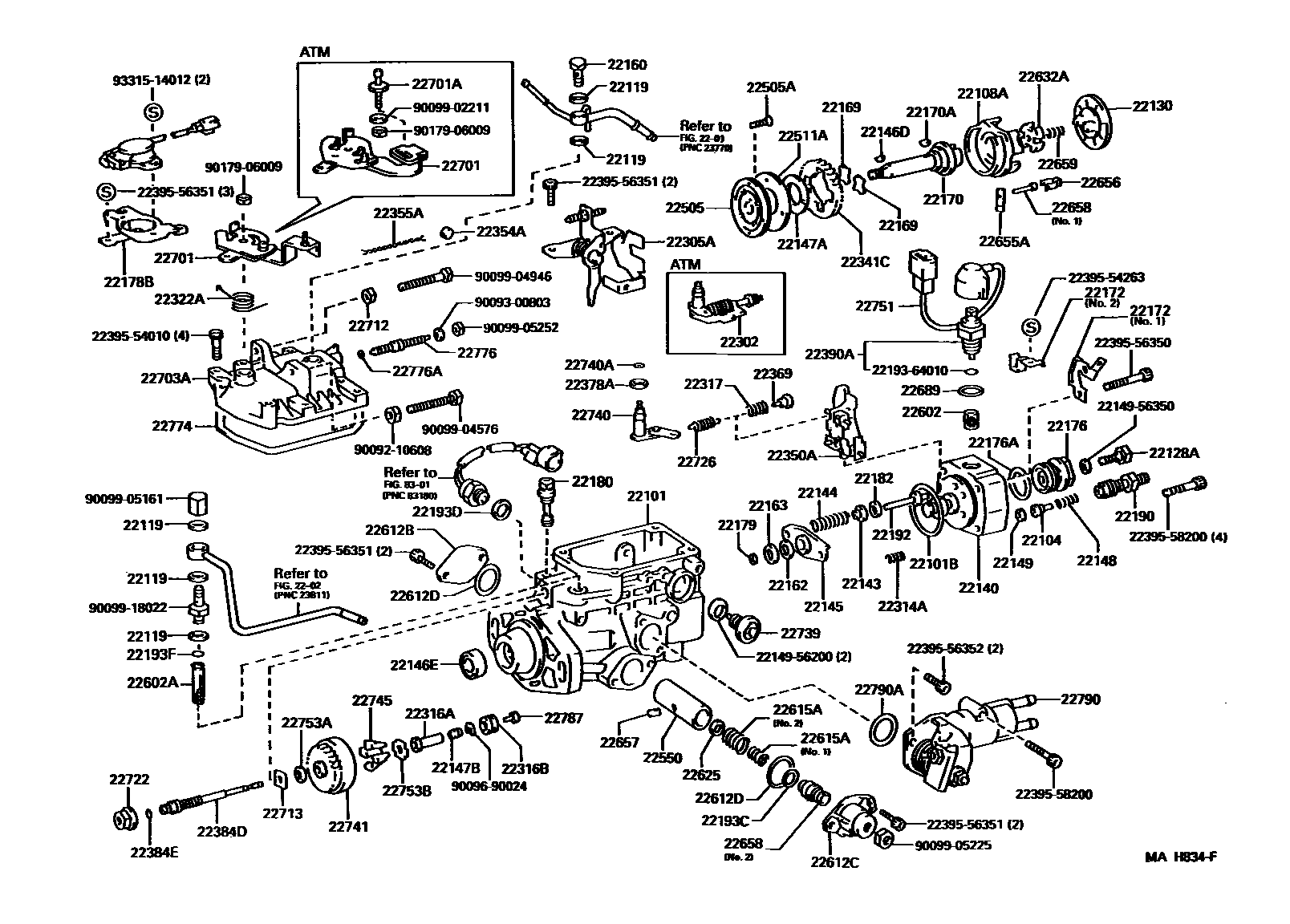

INJECTION PUMP BODY

2201

2202

22101HOUSING SUB-ASSY, INJECTION PUMP

main22101-64020i3L..LY101,111..ATM199505-199610

main22101-64260i3L..LY101,111,151,161..MTM199505-199610

22101BRING, O(FOR INJECTION PUMP HOUSING)

main90099-14053i3L..LY101,111,151,161199505-199610

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-56300×4i3L..LY101,111,151,161199505-199610

22108ARING SUB-ASSY, ROLLER

main22108-54180i3L..LY101,111,151,161199505-199610

22119WASHER, AIR BLEEDER NIPPLE

main90201-12109×5i3L..LY101,111,151,161199505-199610

22128ABOLT, DISTRIBUTIVE HEAD

main22128-54010i3L..LY101,111,151,161199505-199610

22130CAMPLATE SUB-ASSY, FACE

main22130-5B370i3L..LY101,111,151,161199505-199610

22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP

main22140-5B370i3L..LY101,111,151,161199505-199610

22143SEAT, SPRING UPPER

main22143-54010×2i3L..LY101,111,151,161199505-199610

22144SPRING, PUMP PLUNGER

main22144-54190×2i3L..LY101,111,151,161199505-199610

22145SEAT, SPRING, LOWER

main22145-54010i3L..LY101,111,151,161199505-199610

22146DKEY(FOR DRIVE GEAR)

main90099-13018i3L..LY101,111,151,161199505-199610

22146ESEAL(FOR DRIVE SHAFT)

main22544-64740i3L..LY101,111,151,161199505-199610

22147AWASHER, DRIVE SHAFT

main22161-54010i3L..LY101,111,151,161199505-199610

22147BRING, GOVERNOR SLEEVE

main22147-54290i3L..LY101,111,151,161199505-199610

22148SPRING, DELIVERY VALVE

main22148-54010×4i3L..LY101,111,151,161199505-199610

22149GASKET, DELIVERY VALVE

main22149-56351×4i3L..LY101,111,151,161199505-199610

22160SCREW SUB-ASSY, OVERFLOW

main22160-64010i3L..LY101,111,151,161199505-199610

22162PLATE, PLUNGER UPPER

main22162-54010i3L..LY101,111,151,161199505-199610

22163PLATE, PLUNGER LOWER

main22163-54010i3L..LY101,111,151,161199505-199610

22169JOINT, RUBBER

main22169-54180×2i3L..LY101,111,151,161199505-199610

22170SHAFT SUB-ASSY, DRIVE

main22170-6A510i3L..LY101,111,151,161199505-199610

22170AKEY(FOR DRIVE SHAFT)

main90099-13017i3L..LY101,111,151,161199505-199610

22172CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-54263i3L..LY101,111,151,161199505-199610

main22172-54264i3L..LY101,111,151,161199505-199610

22176PLUG, DISTRIBUTIVE HEAD

main22176-54020i3L..LY101,111,151,161199505-199610

22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)

main22193-54772i3L..LY101,111,151,161199608-199610

main90099-14052i3L..LY101,111,151,161199505-199608

sub22193-54772

22178BBRACKET(FOR INJECTION PUMP ASSY)

main22178-5B390i3L..LY101,111..ATM199505-199610

22179SHIM, PLUNGER ADJUSTING

main22179-54010i3L..LY101,111,151,161199505-199610

main22179-54011i3L..LY101,111,151,161199505-199610

main22179-54012i3L..LY101,111,151,161199505-199610

main22179-54013i3L..LY101,111,151,161199505-199610

main22179-54014i3L..LY101,111,151,161199505-199610

main22179-54015i3L..LY101,111,151,161199505-199610

main22179-54016i3L..LY101,111,151,161199505-199610

main22179-54017i3L..LY101,111,151,161199505-199610

main22179-54018i3L..LY101,111,151,161199505-199610

main22179-54019i3L..LY101,111,151,161199505-199610

main22179-54020i3L..LY101,111,151,161199505-199610

22180VALVE SUB-ASSY, REGULATOR

main22180-55050i3L..LY101,111,151,161199505-199610

22182PLATE, TAPPET ADJUSTING SHIM

main22182-54010×2i3L..LY101,111,151,161199505-199610

main22183-54010×2i3L..LY101,111,151,161199505-199610

main22184-54010×2i3L..LY101,111,151,161199505-199610

main22185-54010×2i3L..LY101,111,151,161199505-199610

main22186-54010×2i3L..LY101,111,151,161199505-199610

main22187-54010×2i3L..LY101,111,151,161199505-199610

main22188-54010×2i3L..LY101,111,151,161199505-199610

22190VALVE SUB-ASSY, SNUBBER

main22190-6A680×4i3L..LY101,111,151,161199505-199610

22192GUIDE SUB-ASSY, PLUNGER SPRING

main22192-54010×2i3L..LY101,111,151,161199505-199610

22193CRING, O(FOR TIMER COVER STOPPER)

main22193-17020i3L..LY101,111,151,161199505-199610

22193DRING, O(FOR REVOLUTION DETECTOR)

main22193-64750i3L..LY101,111,151,161199505-199610

22193FRING, O(FOR FUEL INJECTION PUMP FILTER)

main22193-5B320i3L..LY101,111,151,161199609-199610

22302SHAFT SUB-ASSY, SPEED CONTROL

main22302-5B390i3L..LY101,111..ATM199505-199610

22305AIDLE-UP SUB-ASSY

main22305-54730i3L..LY101,111,151,161199505-199610

22314ASPRING, LEVER SUPPORT

main22314-54010×2i3L..LY101,111,151,161199505-199610

22316ASLEEVE, GOVERNOR

main22316-54630i3L..LY101,111,151,161199505-199610

main22316-54750i3L..LY101,111,151,161199505-199610

main22316-5B060i3L..LY101,111,151,161199505-199610

main22316-6A680i3L..LY101,111,151,161199505-199610

22316BBEARING, BALL(FOR GOVERNOR SLEEVE)

main90099-10148i3L..LY101,111,151,161199505-199610

22317SPRING, GOVERNOR DOMPER

main22317-54730i3L..LY101,111,151,161..MTM199505-199610

22322ASPRING, RETURN

main22322-54630i3L..LY101,111..ATM199505-199610

main22322-54730i3L..LY101,111,151,161..MTM199505-199610

22341CGEAR, GOVERNOR DRIVE

main22341-54010i3L..LY101,111,151,161199505-199610

22350AGOVERNOR ASSY, TORQUE CONTROL

main22350-54060i3L..LY101,111,151,161..MTM199505-199610

main22350-54080i3L..LY101,111..ATM199505-199610

22354ASEAL, ROD

main22354-77050i3L..LY101,111,151,161199505-199610

22355AWIRE, GOVERNOR HOUSING SEAL

main22355-78030i3L..LY101,111,151,161199505-199610

22369SEAT, GOVERNOR SPRING

main22369-54010i3L..LY101,111,151,161..MTM199505-199610

22378AWASHER, GOVERNOR THRUST

main22378-64010i3L..LY101,111,151,161199505-199610

22384DSHAFT, GOVERNOR

main22380-54020i3L..LY101,111,151,161199505-199610

22384ERING, O(FOR GOVERNOR MAIN SHAFT)

main90099-14049i3L..LY101,111,151,161199505-199610

22390ASOLENOID ASSY, FUEL CUT

main22390-6A510i3L..LY101,111,151,161199505-199610

sub22390-6A511

22505PUMP SUB-ASSY, FUEL FEED

main22505-54010i3L..LY101,111,151,161199505-199610

22505ASCREW(FOR FUEL FEED PUMP)

main90099-00723×2i3L..LY101,111,151,161199505-199610

22511ACOVER, FEED PUMP

main22511-54020i3L..LY101,111,151,161199505-199610

22550PISTON ASSY, TIMER

main22550-17020i3L..LY101,111,151,161199505-199610

sub22582-5C400

22602FILTER SUB-ASSY, FUEL INJECTION PUMP

main22602-56350i3L..LY101,111,151,161199505-199610

22602AFILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2

main22602-5B320i3L..LY101,111,151,161199609-199610

22612BCOVER, TIMER

main22612-56350i3L..LY101,111,151,161199505-199610

22612CCOVER, TIMER

main22612-17020i3L..LY101,111,151,161199505-199610

22612DRING, O(FOR TIMER COVER)

main90099-14105×2i3L..LY101,111,151,161199505-199610

sub22193-17840

22615ASPRING, TIMER OUTER

main22615-17030i3L..LY101,111,151,161199505-199610

main22615-5B370i3L..LY101,111,151,161199505-199610

main22615-5B371i3L..LY101,111,151,161199505-199610

main22615-5B372i3L..LY101,111,151,161199505-199610

main22615-5B373i3L..LY101,111,151,161199505-199610

main22615-5B374i3L..LY101,111,151,161199505-199610

22625WASHER, TIMER SENSOR ADJUSTING

main22625-17020i3L..LY101,111,151,161199505-199610

22632ACOUPLING, INJECTION PUMP

main22632-54010i3L..LY101,111,151,161199505-199610

22655APIN, TIMER SLIDE

main22655-54010i3L..LY101,111,151,161199505-199610

22656CLIP, TIMER

main22656-54010i3L..LY101,111,151,161199505-199610

sub22656-17840

22657CLIP, TIMER

main22657-54010i3L..LY101,111,151,161199505-199610

22658STOPPER, TIMER

main22658-17020i3L..LY101,111,151,161199505-199610

main22658-54010i3L..LY101,111,151,161199505-199610

sub22658-17840

22659SPRING, COUPLING

main22659-64150i3L..LY101,111,151,161199505-199610

22689WASHER(FOR SWIVEL NIPPLE)

main22689-56350i3L..LY101,111,151,161199505-199610

22701LEVER SUB-ASSY, ADJUSTING

main22701-54451i3L..LY101,111,151,161..MTM199505-199610

MARK 130

main22701-54452i3L..LY101,111,151,161..MTM199505-199610

MARK 131

main22701-5B020i3L..LY101,111..ATM199505-199610

main22701-5B021i3L..LY101,111..ATM199505-199610

22701AJOINT, BALL(FOR ADJUSTING LEVER)

main26126-54390i3L..LY101,111..ATM199505-199610

22703ACOVER SUB-ASSY, GOVERNOR

main22703-17080i3L..LY101,111,151,161..MTM199505-199610

main22703-6A361i3L..LY101,111..ATM199505-199610

22712NUT, ROCK

main22775-77121i3L..LY101,111,151,161199505-199610

22713WASHER, GOVERNOR GEAR ADJUSTING

main22713-54010i3L..LY101,111,151,161199505-199610

main22714-54010i3L..LY101,111,151,161199505-199610

main22715-54010i3L..LY101,111,151,161199505-199610

main22716-54010i3L..LY101,111,151,161199505-199610

main22717-54010i3L..LY101,111,151,161199505-199610

22722NUT, GOVERNOR SHAFT ROCK

main22722-54470i3L..LY101,111,151,161199505-199610

22726SPRING, SPEED CONTROL

main22726-5B370i3L..LY101,111,151,161..MTM199505-199610

22739BOLT, GOVERNOR LINK SUPPORT

main22739-54020×2i3L..LY101,111,151,161199505-199610

22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING

main22740-55050i3L..LY101,111,151,161..MTM199505-199610

22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)

main22193-54770i3L..LY101,111,151,161199505-199610

22741HOLDER SUB-ASSY, FLYWEIGHT

main22741-54020i3L..LY101,111,151,161199505-199610

22745FLYWEIGHT, DISTRIBUTIVE PUMP

main22745-54010×4i3L..LY101,111,151,161199505-199610

22751WIRE SUB-ASSY, FUEL CUT SOLENOID

main22751-6A220i3L..LY101,111,151,161199505-199610

22753AWASHER, FLYWEIGHT, NO.1

main22753-54010i3L..LY101,111,151,161199505-199610

22753BWASHER, FLYWEIGHT, NO.2

main22753-54020i3L..LY101,111,151,161199505-199610

22774GASKET, GOVERNOR COVER

main22774-54270i3L..LY101,111,151,161199505-199610

22776SCREW, SMOKE SET ADJUSTING

main22776-54110i3L..LY101,111,151,161199505-199610

22776ARING, O(FOR SMOKE SET SCREW)

main22193-54771i3L..LY101,111,151,161199608-199610

main90099-14047i3L..LY101,111,151,161199505-199608

sub22193-54771

22787PLUG, GOVERNOR SLEEVE

main22787-54027i3L..LY101,111,151,161199505-199610

main22787-54029i3L..LY101,111,151,161199505-199610

main22787-54031i3L..LY101,111,151,161199505-199610

main22787-54033i3L..LY101,111,151,161199505-199610

main22787-64640i3L..LY101,111,151,161199505-199610

main22787-64641i3L..LY101,111,151,161199505-199610

main22787-64643i3L..LY101,111,151,161199505-199610

main22787-64680i3L..LY101,111,151,161199505-199610

22790COVER SUB-ASSY, TIMER

main22790-5B370i3L..LY101,111,151,161199505-199610

22790ARING, O(FOR TIMER COVER)

main90099-14105i3L..LY101,111,151,161199505-199610

sub22193-17840

8301

2214956200GASKET, DELIVERY VALVE

main22149-56200

2214956350GASKET, DELIVERY VALVE

main22149-56350

2219364010RING, O(FOR LEVER CONNECTING PIN)

main22193-64010

2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-54010

2239554263BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-54263

2239556350BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56350

2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56351

2239556352BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56352

2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-58200

9009210608

main90092-10608

9009300803

main90093-00803

9009690024

main90096-90024

9009902211

main90099-02211

9009904576

main90099-04576

9009904946

main90099-04946

9009905161

main90099-05161

9009905225

main90099-05225

9009905252

main90099-05252

9009918022

main90099-18022

9017906009

main90179-06009

9331514012

main93315-14012
