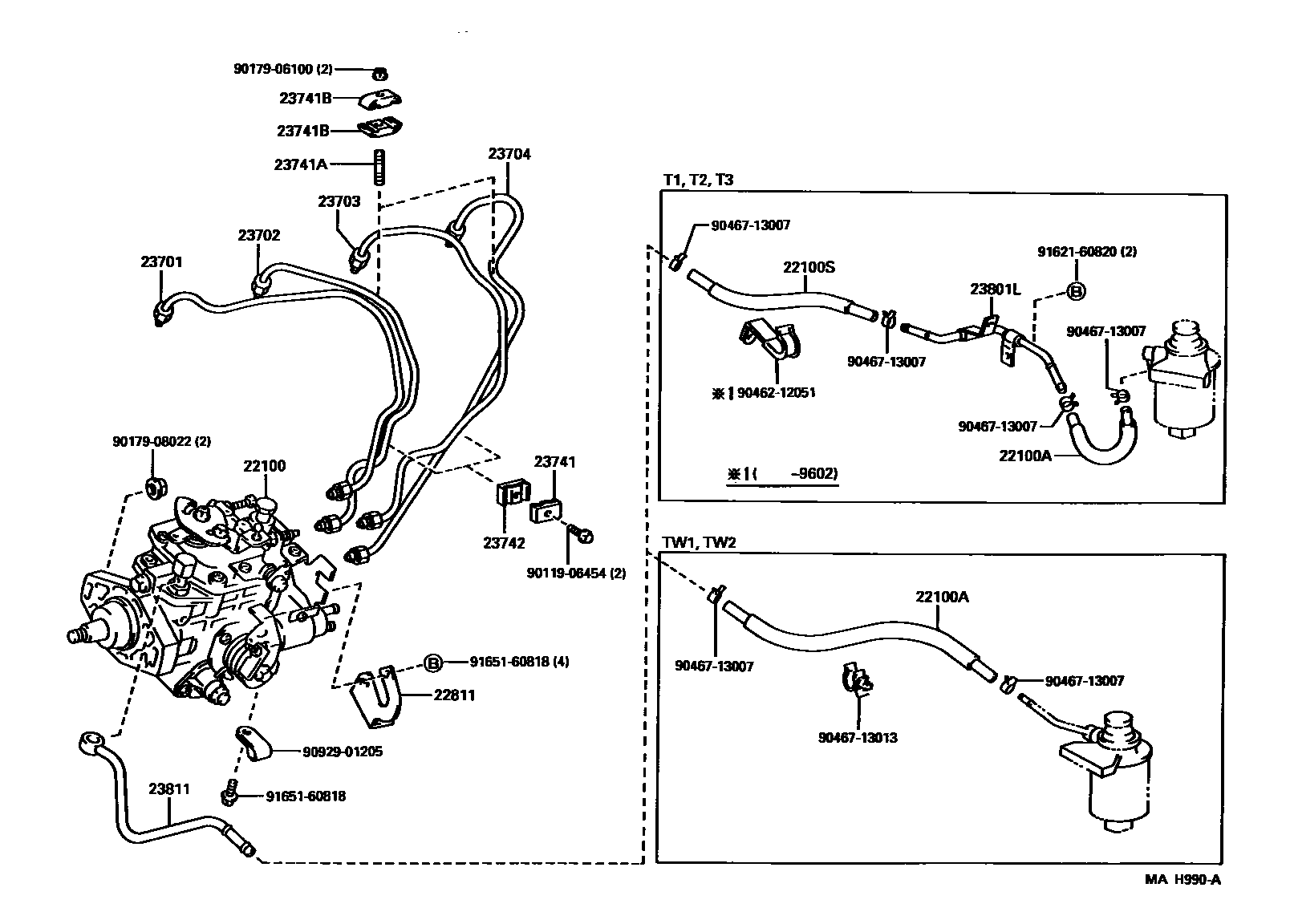

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-5B400i3L..LY101,111,151,161..MTM199505-199610

main22100-5B410i3L..LY101,111..ATM199505-199610

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main90447-14023i3L..LY101,111,151,161..T1,T2,T3199505-199610

main90447-14060i3L..LY101,111,151,161..TW1,TW2199505-199610

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main90447-14059i3L..LY101,111,151,161..T1,T2,T3199505-199610

22811STAY, INJECTION PUMP, NO.1

main22811-54041i3L..LY101,111,151,161199505-199610

sub22811-54042

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54140i3L..LY101,111,151,161199505-199610

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54140i3L..LY101,111,151,161199505-199610

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54100i3L..LY101,111,151,161199505-199610

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54100i3L..LY101,111,151,161199505-199610

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010i3L..LY101,111,151,161199505-199607

main23741-54030i3L..LY101,111,151,161199607-199610

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06095i3L..LY101,111,151,161199505-199610

23741BCLAMP, INJECTION PIPE

main23741-56010i3L..LY101,111,151,161199505-199610

23742CLAMP, INJECTION PIPE, NO.2

main23742-05010i3L..LY101,111,151,161199607-199610

main23742-54010i3L..LY101,111,151,161199505-199607

23801LPIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23801-54050i3L..LY101,111,151,161..T1,T2,T3199505-199610

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54160i3L..LY101,111,151,161199505-199610

9011906454

main90119-06454

9017906100

main90179-06100

9017908022

main90179-08022

9046212051

main90462-12051

9046713007

main90467-13007

9046713013

main90467-13013

9092901205

main90929-01205

9162160820

main91621-60820

9165160818

main91651-60818

23 parts on this diagram · 1 diagram in section
