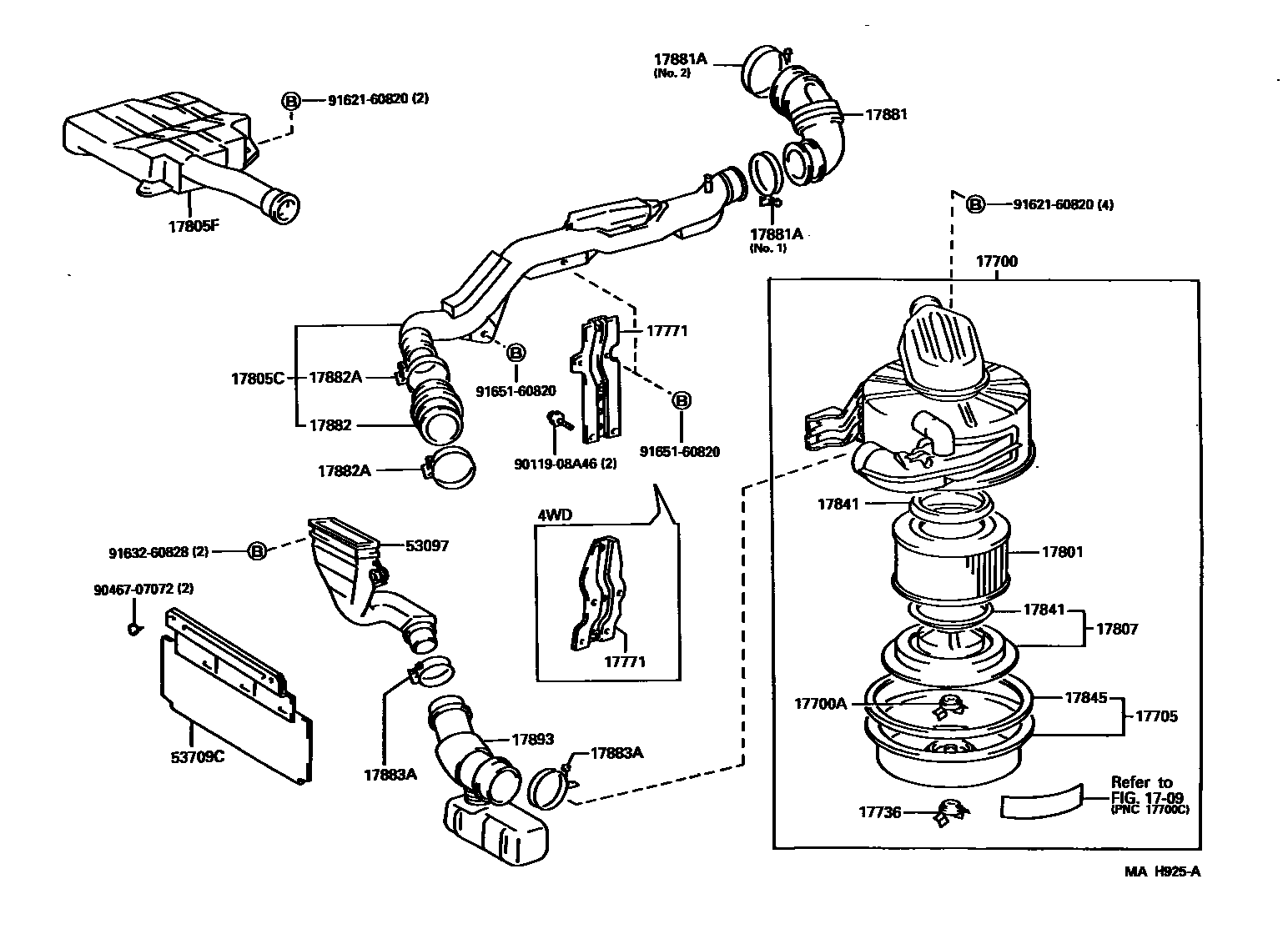

AIR CLEANER
1709
17700ANUT, WING(FOR AIR CLEANER)
17705CAP SUB-ASSY, AIR CLEANER
17736NUT, AIR CLEANER CASE
17771BRACKET, AIR CLEANER INLET DUCT
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17805CONNECTOR SUB-ASSY, INTAKE AIR
17805CPIPE SUB-ASSY, AIR CLEANER, NO.1
17805FRESONATOR SUB-ASSY, INTAKE AIR
17807PLATE SUB-ASSY, AIR CLEANER FILTER SET
17841GASKET, FILTER ELEMENT
17845GASKET, AIR CLEANER CAP
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
CONNECTOR SIDE
CARBURETOR SIDE
INTAKE MANIFOLD SIDE
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17883HOSE, AIR CLEANER, NO.3
17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)
INLET SIDE
AIR CLEANER SIDE
17893RESONATOR, INTAKE AIR
53097INLET SUB-ASSY
53709CCOVER SUB-ASSY, AIR CLEANER INLET
9011908A46
main90119-08A46
9046707072
main90467-07072
9162160820
main91621-60820
9163260828
main91632-60828
9165160820
main91651-60820
27 parts on this diagram · 2 diagrams in section
