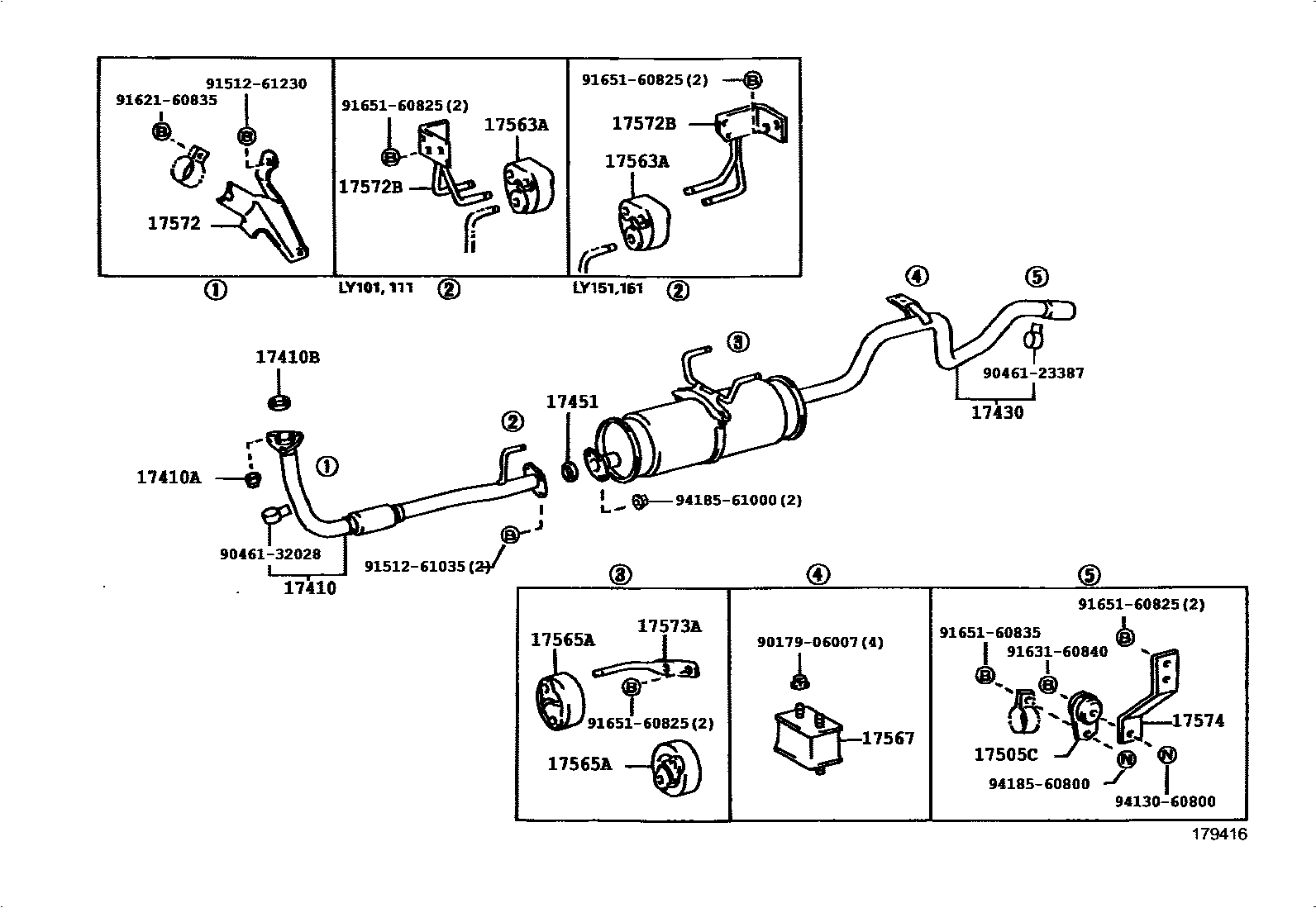

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-5B140i3L..LY101,111199505-199610

main17410-5B230i3L..LY151,161199505-199610

main17410-73590i3Y..YY101199505-199610

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i3L,3Y..LY101,111,151,161,YY101199505-199610

17410BGASKET, EXHAUST PIPE

main90917-06064i3Y..YY101199505-199610

main90917-06066i3L..LY101,111,151,161199505-199610

17430PIPE ASSY, EXHAUST, TAIL

main17430-5B540i3L..LY101199505-199610

sub17430-5B660

main17430-5B640i3L..LY111199505-199610

sub17430-5B641

main17430-5B670i3L..LY151199505-199610

sub17430-5B671

main17430-5B680i3L..LY161199505-199610

sub17430-5B681

main17430-73450i3Y..YY101199505-199610

sub17430-73451

17451GASKET, EXHAUST PIPE

main90917-06045i3L..LY101,111,151,161199505-199610

17505CCUSHION, EXHAUST PIPE(FOR HEAT INSULATOR)

main90917-08009i3L,3Y..LY101,111,151,161,YY101199505-199610

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-54030i3L..LY101,111,151,161199505-199610

main17565-63030i3Y..YY101199505-199610

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-63030i3L,3Y..LY101,111,151,161,YY101199505-199610

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-61010i3L,3Y..LY101,111,151,161,YY101199505-199610

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17571-54270i3L..LY101,111,151,161199505-199610

main17571-71040i3Y..YY101199505-199610

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17562-72111i3Y..YY101199505-199610

PIPE SIDE

main17572-54200i3L..LY101,111199505-199610

main17572-54210i3L..LY151,161199505-199610

main17572-72030i3Y..YY101199505-199610

BODY SIDE

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

main17575-71050i3L,3Y..LY101,111,151,161,YY101199505-199610

17574BRACKET, EXHAUST PIPE SUPPORT, NO.4

main17574-54060i3L,3Y..LY101,111,151,161,YY101199505-199610

9017906007

main90179-06007

9046123387

main90461-23387

9046132028

main90461-32028

9151261035

main91512-61035

9151261230

main91512-61230

9162160835

main91621-60835

9163160840

main91631-60840

9165160825

main91651-60825

9165160835

main91651-60835

9413060800

main94130-60800

9418560800

main94185-60800

9418561000

main94185-61000

25 parts on this diagram · 2 diagrams in section
