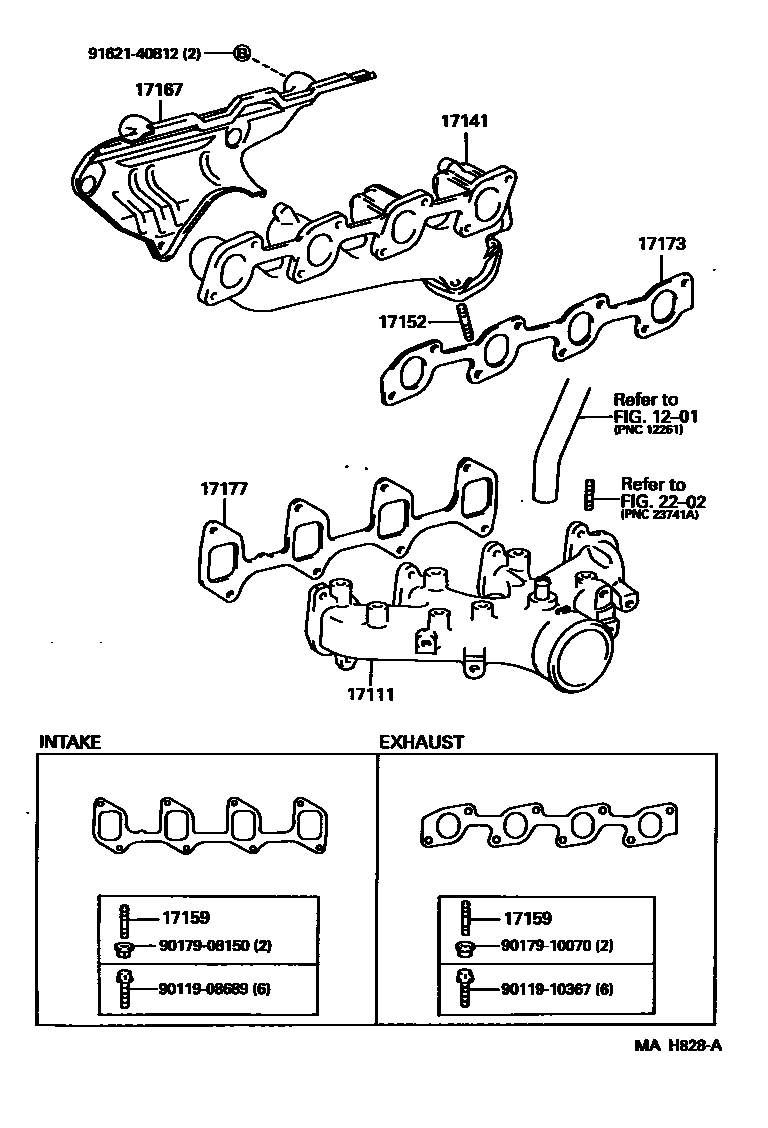

MANIFOLD

0001 1 0002 1

1201

17111MANIFOLD, INTAKE

main17101-54110i3L..LY101,111,151,161199505-199610

main17111-71010i3Y..YY101199505-199610

17141MANIFOLD, EXHAUST

main17141-54110i3L..LY101,111,151,161199505-199602

main17141-54111i3L..LY101,111,151,161199603-199610

main17141-71010i3Y..YY101199505-199610

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10088i3L..LY101,111,151,161199505-199610

main90116-10146i3Y..YY101199505-199610

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08220i3L..LY101,111,151,161199505-199610

INTAKE MANIFOLD

main90116-10063i3Y..YY101199505-199610

main90116-10141i3L..LY101,111,151,161199505-199610

EXHAUST MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-54110i3L..LY101,111,151,161199505-199610

main17167-71020i3Y..YY101199505-199610

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-54030i3L..LY101,111,151,161199505-199610

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-54020i3L..LY101,111,151,161199505-199507

sub17177-54021

main17177-54021i3L..LY101,111,151,161199507-199610

2202

9011908689

main90119-08689

9011910367

main90119-10367

9017908150

main90179-08150

9017910070

main90179-10070

9162140812

main91621-40812

14 parts on this diagram · 2 diagrams in section
