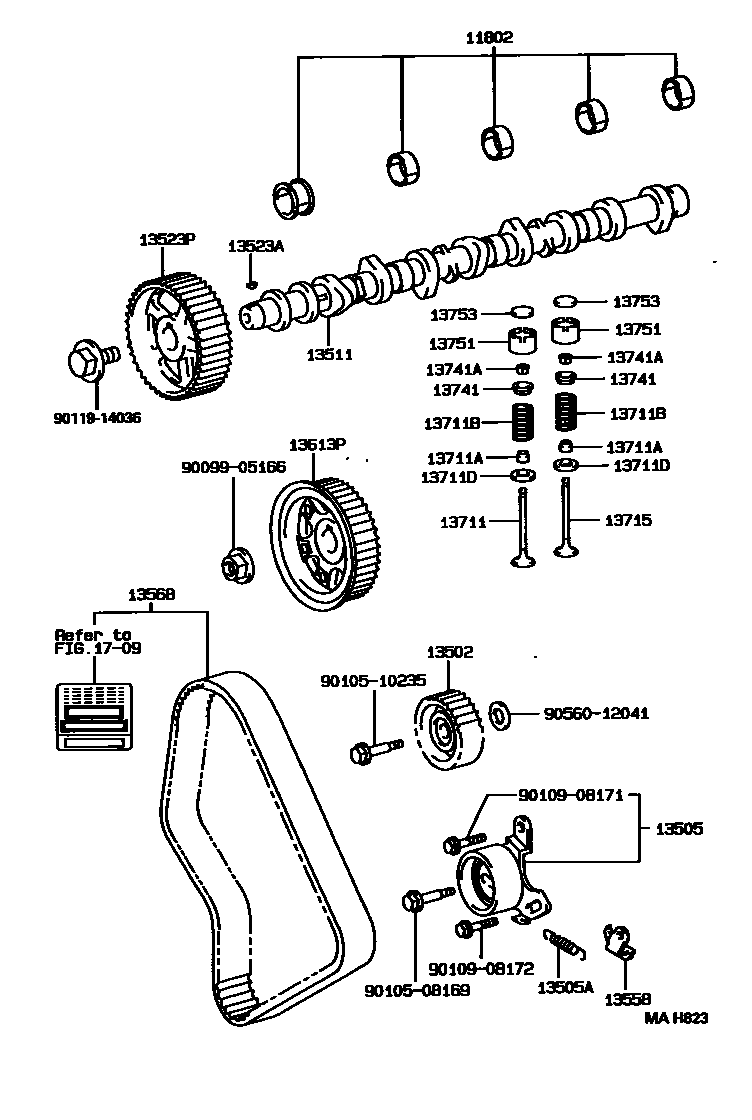

CAMSHAFT & VALVE

0001 1 0002 1

11802BEARING SET, CAMSHAFT

main11802-54020i3L..LY101,111,151,161199505-199605

sub11802-54021

main11802-54020i3L..LY101,111,151,161199605-199610

sub11802-54021

main11802-71010i3Y..YY101199505-199610

sub11802-73010

main11803-54020i3L..LY101,111,151,161199605-199610

sub11803-54021

main11803-54020i3L..LY101,111,151,161199505-199605

sub11803-54021

main11804-54020i3L..LY101,111,151,161199505-199605

sub11804-54021

main11804-54020i3L..LY101,111,151,161199605-199610

sub11804-54021

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-54030i3L..LY101,111,151,161199505-199610

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-54021i3L..LY101,111,151,161199505-199610

13505ASPRING, TENSION(FOR IDLER)

main90506-18060i3L..LY101,111,151,161199505-199610

13511CAMSHAFT

main13501-54070i3L..LY101,111,151,161199505

main13511-73902i3Y..YY101199505-199610

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13522-33010i3Y..YY101199505-199610

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05004i3L..LY101,111,151,161199505-199610

main90280-05005i3Y..YY101199505-199610

13523PPULLEY, CAMSHAFT TIMING

main13523-54040i3L..LY101,111,151,161199505-199610

13558BRACKET, SPRING(FOR IDLER)

main13558-54020i3L..LY101,111,151,161199505-199610

13568BELT, TIMING

main13568-59065i3L..LY101,111,151,161199505-199512

sub13568-59066

main13568-59066i3L..LY101,111,151,161199512-199610

sub13568-59067

sub13568-59106

13613PPULLEY, INJECTION PUMP DRIVE

main13603-54030i3L..LY101,111,151,161199505-199610

13711VALVE, INTAKE

main13711-17010i3L..LY101,111,151,161199505-199610

main13711-71010i3Y..YY101199505-199610

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02053i3L..LY101,111,151,161199505-199601

sub90913-02110

main90913-02094i3Y..YY101199609-199610

main90913-02098i3Y..YY101199505-199609

sub90913-02094

main90913-02110i3L..LY101,111,151,161199601-199610

13711BSPRING, COMPRESSION(FOR INNER)

main90501-46001i3Y..YY101199505-199610

main90504-49001i3L..LY101,111,151,161199505-199610

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-21002i3Y..YY101199505-199610

main90201-23003i3L..LY101,111,151,161199505-199610

13715VALVE, EXHAUST

main13715-17010i3L..LY101,111,151,161199505-199610

main13715-71010i3Y..YY101199505-199610

13741RETAINER, VALVE SPRING

main13741-54020i3L..LY101,111,151,161199505-199610

main13741-63010i3Y..YY101199505-199610

13741ALOCK, VALVE SPRING RETAINER

main90913-03014i3Y..YY101199505-199610

13751LIFTER, VALVE

main13750-71010i3Y..YY101199505-199608

sub13750-71020

main13750-71020i3Y..YY101199608-199610

main13751-54010i3L..LY101,111,151,161199505-199610

13753SHIM, VALVE ADJUSTING

main13753-54010i3L..LY101,111,151,161199505-199610

main13753-54060i3L..LY101,111,151,161199505-199610

main13753-54110i3L..LY101,111,151,161199505-199610

main13753-54160i3L..LY101,111,151,161199505-199610

main13753-54210i3L..LY101,111,151,161199505-199610

main13753-54260i3L..LY101,111,151,161199505-199610

main13753-54310i3L..LY101,111,151,161199505-199610

main13753-54360i3L..LY101,111,151,161199505-199610

main13753-54410i3L..LY101,111,151,161199505-199610

main13753-54420i3L..LY101,111,151,161199505-199610

main13753-54430i3L..LY101,111,151,161199505-199610

main13753-54440i3L..LY101,111,151,161199505-199610

main13753-54450i3L..LY101,111,151,161199505-199610

main13753-54460i3L..LY101,111,151,161199505-199610

main13753-54470i3L..LY101,111,151,161199505-199610

main13753-54480i3L..LY101,111,151,161199505-199610

main13753-54490i3L..LY101,111,151,161199505-199610

1709

9009905166

main90099-05166

9010508169

main90105-08169

9010510235

main90105-10235

9010908171

main90109-08171

9010908172

main90109-08172

9011914036

main90119-14036

9056012041

main90560-12041

28 parts on this diagram · 2 diagrams in section
