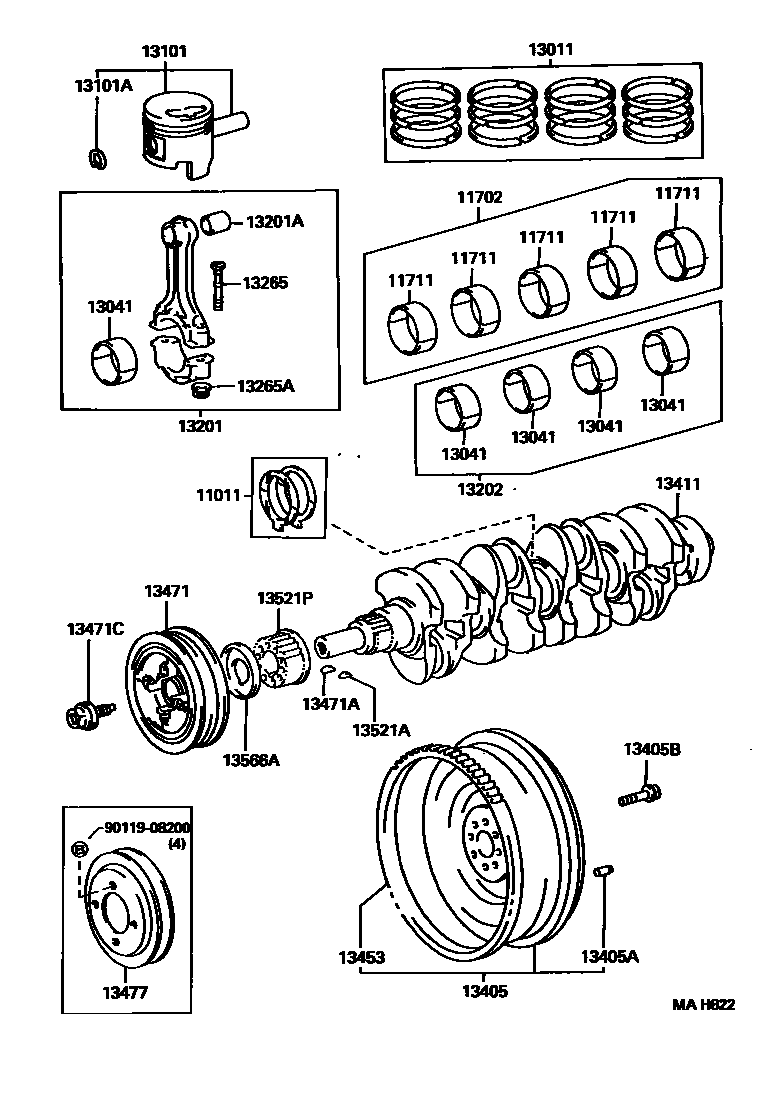

CRANKSHAFT & PISTON

0001 1 0002 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-25010i3Y..YY101199505-199610

main11011-54020i3L..LY101,111,151,161199505-199610

main11012-54020i3L..LY101,111,151,161199505-199610

main11013-54020i3L..LY101,111,151,161199505-199610

11702BEARING SET, CRANKSHAFT

main11704-54061i3L..LY101,111,151,161199505-199610

sub11704-54080

main11704-71020i3Y..YY101199505-199512

main11704-71030i3Y..YY101199512-199610

sub11704-73010

main11705-54061i3L..LY101,111,151,161199505-199610

sub11705-54080

11711BEARING, CRANKSHAFT

main11071-71010-01i3Y..YY101199512-199610

sub11071-73010

main11071-71010-02i3Y..YY101199512-199610

sub11071-73010

main11071-71010-03i3Y..YY101199512-199610

sub11071-73010

main11701-54061-01i3L..LY101,111,151,161199505-199610

MARK 1

sub11701-54080

main11701-54061-02i3L..LY101,111,151,161199505-199610

MARK 2

sub11701-54080

main11701-54061-03i3L..LY101,111,151,161199505-199610

MARK 3

sub11701-54080

main11701-71020-01i3Y..YY101199505-199512

MARK 1

main11701-71020-02i3Y..YY101199505-199512

MARK 2

main11701-71020-03i3Y..YY101199505-199512

MARK 3

main11701-71030-01i3Y..YY101199512-199610

sub11701-73010

main11701-71030-02i3Y..YY101199512-199610

sub11701-73010

main11701-71030-03i3Y..YY101199512-199610

sub11701-73010

13011RING SET, PISTON

main13011-54120i3L..LY101,111,151,161199505-199610

main13011-71012i3Y..YY101199605-199610

main13011-71021i3Y..YY101199505-199605

sub13011-71012

main13013-54120i3L..LY101,111,151,161199505-199610

main13013-71021i3Y..YY101199505-199610

main13014-71021i3Y..YY101199505-199610

main13015-71021i3Y..YY101199505-199610

13041BEARING, CONNECTING ROD

main13041-54041-01i3L..LY101,111,151,161199505-199610

MARK 1

sub13041-54042

main13041-54041-02i3L..LY101,111,151,161199505-199610

MARK 2

sub13041-54042

main13041-54041-03i3L..LY101,111,151,161199505-199610

MARK 3

sub13041-54042

main13041-71011-06i3Y..YY101199505-199610

MARK 6

sub13041-73010

main13041-71011-07i3Y..YY101199505-199610

MARK 7

sub13041-73010

main13041-71011-08i3Y..YY101199505-199610

MARK 8

sub13041-73010

13101PISTON SUB-ASSY, W/PIN

main13101-54101-01i3L..LY101,111,151,161199505-199610

main13101-54101-02i3L..LY101,111,151,161199505-199610

main13101-54101-03i3L..LY101,111,151,161199505-199610

main13101-73010-01i3Y..YY101199505-199610

sub13101-73010

main13101-73010-02i3Y..YY101199505-199610

sub13101-73010

main13101-73010-03i3Y..YY101199505-199610

sub13101-73010

main13103-54101i3L..LY101,111,151,161199505-199610

main13103-73010i3Y..YY101199505-199610

main13104-73010i3Y..YY101199505-199610

main13105-73010i3Y..YY101199505-199610

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-31001i3L..LY101,111,151,161199505-199610

13201ROD SUB-ASSY, CONNECTING

main13201-59105i3L..LY101,111,151,161199505-199610

sub13201-59106

main13201-79045i3Y..YY101199505-199610

sub13201-79046

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73115i3L..LY101,111,151,161199505-199610

13202BEARING SET, CONNECTING ROD

main13204-54041i3L..LY101,111,151,161199505-199610

sub13204-54042

main13204-71011i3Y..YY101199505-199610

sub13204-73010

main13205-54041i3L..LY101,111,151,161199505-199610

sub13205-54042

13265BOLT, CONNECTING ROD

main13265-29025i3Y..YY101199505-199610

main13265-54020i3L..LY101,111,151,161199505-199610

sub13265-54021

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90170-09001i3Y..YY101199505-199610

main90179-10123i3L..LY101,111,151,161199505-199610

13405FLYWHEEL SUB-ASSY

main13405-54080i3L..LY101,111,151,161..MTM199505-199610

main13405-72011i3Y..YY101199505-199610

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054i3Y..YY101199505-199610

13405BBOLT, FLYWHEEL SETTING

main90105-10042i3Y..YY101199505-199610

main90105-12109i3L..LY101,111,151,161..MTM199505-199610

13411CRANKSHAFT

main13401-54060i3L..LY101,111,151,161199505-199608

sub13401-54061

main13401-54061i3L..LY101,111,151,161199608-199610

sub13401-54100

main13411-73010i3Y..YY101199505-199610

sub13411-73900

13453GEAR, FLYWHEEL RING

main13453-20010i3Y..YY101199505-199610

main13453-54010i3L..LY101,111,151,161..MTM199505-199610

13471PULLEY, CRANKSHAFT

main13408-54080i3L..LY101,111,151,161199505-199608

sub13408-54090

main13408-54090i3L..LY101,111,151,161199608-199610

main13408-73010i3Y..YY101199505-199610

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i3Y..YY101199505-199610

main95161-30622i3L..LY101,111,151,161199505-199610

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-14069i3Y..YY101199505-199610

main90901-19028i3L..LY101,111,151,161199505-199610

13477PULLEY, CRANKSHAFT, NO.2

main88451-20110i3Y..YY101199505-199610

main88451-35030i3L..LY101,111,151,161199505-199610

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-33010i3Y..YY101199505-199610

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05005i3Y..YY101199505-199610

main95161-30622i3L..LY101,111,151,161199505-199610

13521PPULLEY, CRANKSHAFT TIMING

main13521-54030i3L..LY101,111,151,161199505-199610

13566AGUIDE, TIMING BELT

main13566-54040i3L..LY101,111,151,161199505-199610

9011908200

main90119-08200
