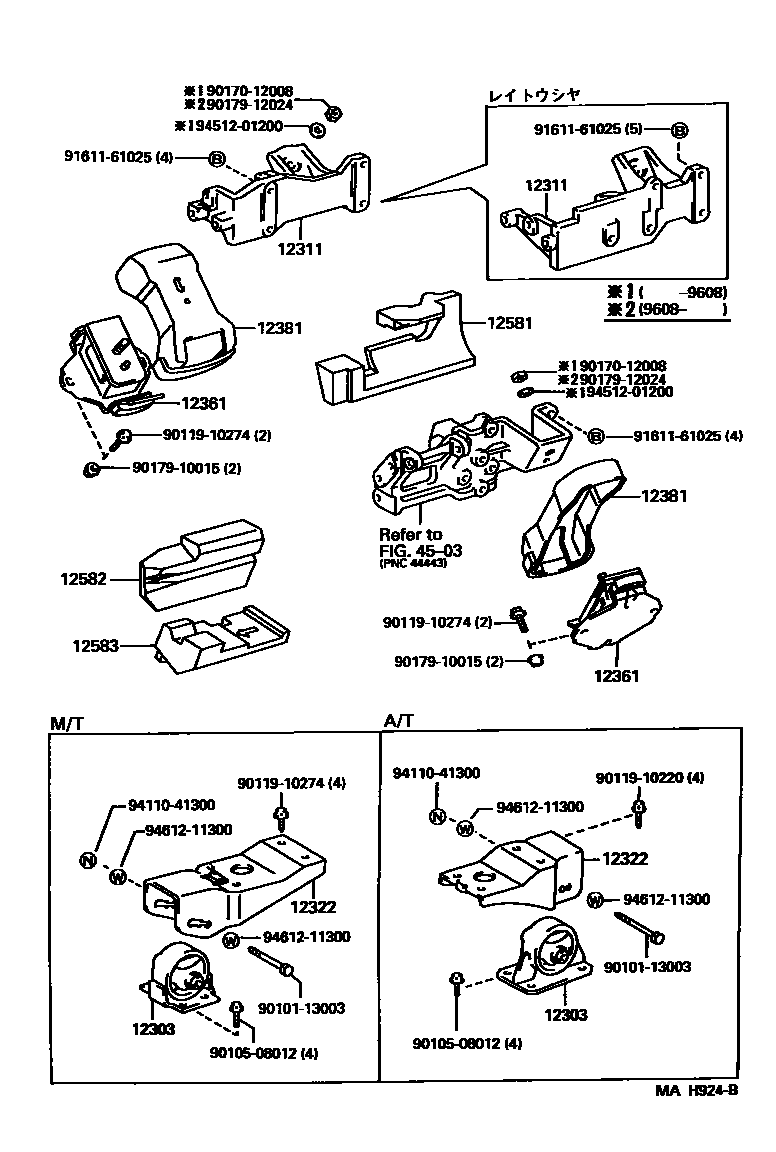

MOUNTING

0001 1 0002 1 0003 1

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-54040i3L..LY151,161199505-199512

sub12303-54041

main12303-54041i3L..LY151,161199512-199610

main12303-67020i3Y..YY101199505-199512

sub12303-67021

main12303-67021i3L..LY101,111..MTM199512-199610

main12303-67030i3L..LY101,111..ATM199505-199512

sub12303-67031

main12303-67031i3L..LY101,111..ATM199512-199610

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-54091i3L..LY101,111199505-199610

main12311-54102i3L..LY101..MTM..IV199505-199610

main12311-54170i3L..LY151,161199505-199610

main12311-71010i3Y..YY101199505-199610

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-54050i3Y..YY101199505-199610

main12322-54060i3L..LY101,111..ATM199505-199610

main12322-54080i3L..LY151,161199505-199610

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-54171i3L..LY151,161199505-199610

main12361-54200i3L..LY101,111199505-199610

main12361-71020i3Y..YY101199505-199610

12381STABILIZER, ENGINE MOUNTING

main12381-54050i3L..LY101,111,151,161199505-199610

sub12381-54051

main12381-71030i3Y..YY101199505-199610

12581INSULATOR, CYLINDER BLOCK, NO.1

main12581-54010i3L..LY101,111,151,161199505-199610

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-54020i3L..LY101,111,151,161199505-199509

sub12582-54021

main12582-54021i3L..LY101,111,151,161199509-199610

12583INSULATOR, CYLINDER BLOCK, NO.3

main12583-54030i3L..LY101,111,151,161199505-199610

4503

9010113003

main90101-13003

9010508012

main90105-08012

9011910220

main90119-10220

9011910274

main90119-10274

9017012008

main90170-12008

9017910015

main90179-10015

9017912024

main90179-12024

9161161025

main91611-61025

9411041300

main94110-41300

9451201200

main94512-01200

9461211300

main94612-11300

20 parts on this diagram · 3 diagrams in section
