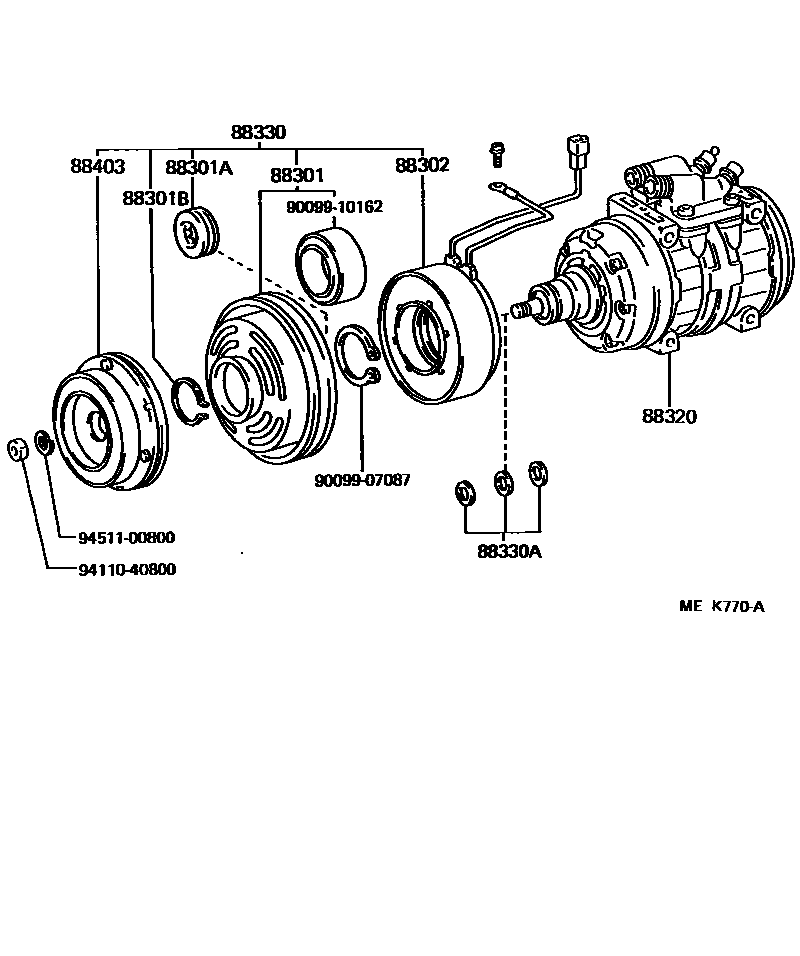

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1W/TRUCK FREZZER 0004 1W/TRUCK FREZZER 0005 1W/TRUCK FREZZER

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22030iYH81198708-199309

main88412-25020iLH80..IV198808-199505

main88412-27010iLH80..CBU198808-199309

sub88412-30430

main88412-27010iLH80..IV198808-199309

sub88412-30430

88301ABEARING (FOR MAGNET CLUTCH)

main90099-10133iLH80,YH81198708-199309

88301BRING, SNAP (FOR MAGNET CLUTCH)

main90099-07114iLH80,YH81198708-199309

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iLH80,YH81198708-199309

main88411-25030iLH80..IV198808-199505

main88411-30510iLH85,95198908-199309

sub88411-35070

main88411-60020iLH80..IV198808-199309

sub88411-95J00

88320COMPRESSOR ASSY, COOLER

main88320-25060iLH80..IV199309-199505

sub88320-27H90

main88320-26210iYH81198708-199309

main88320-26290iLH80..IV198808-199309

main88320-26290iLH85198710-198808

main88320-26300iLH80..CBU198708-198808

main88320-26330iLH80..IV198708-199301

main88320-26470iYH81199309-199505

sub88320-27H91

main88320-26480iLH85,9#;LH80..CBU199309-199505

sub88320-35H92

main88320-36210iLH80..IV199301-199309

88330CLUTCH ASSY, MAGNET

main88410-22080iYH81;LH80..CBU198708-198808

sub88410-60140

main88410-22080iYH81198808-199102

sub88410-60140

main88410-25040iLH80..CBU198808-199102

sub88410-25060

main88410-25050iLH80..IV198708-199309

main88410-25060iLH80..CBU199102-199309

sub88410-25070

main88410-25070iLH90;LH80..CBU199309-199505

main88410-25080iLH80..IV199309-199505

main88410-26050iLH85198710-198908

main88410-26130iLH85,95199309-199505

sub88410-38020

main88410-27020iLH85,95198908-199309

main88410-36390iYH81199309-199505

main88410-60140iYH81199102-199309

sub88410-36390

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iLH8#,9#198710-199309

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iYH81198708-199309

sub88403-12030

main88403-16011iLH80..IV198808-199309

main88403-16011iLH85,9#;LH80..CBU198808-199309

main88403-36030iLH80..IV198808-199505

9009907087

main90099-07087

9009910162

main90099-10162

9411040800

main94110-40800

9451100800

main94511-00800

12 parts on this diagram · 5 diagrams in section
