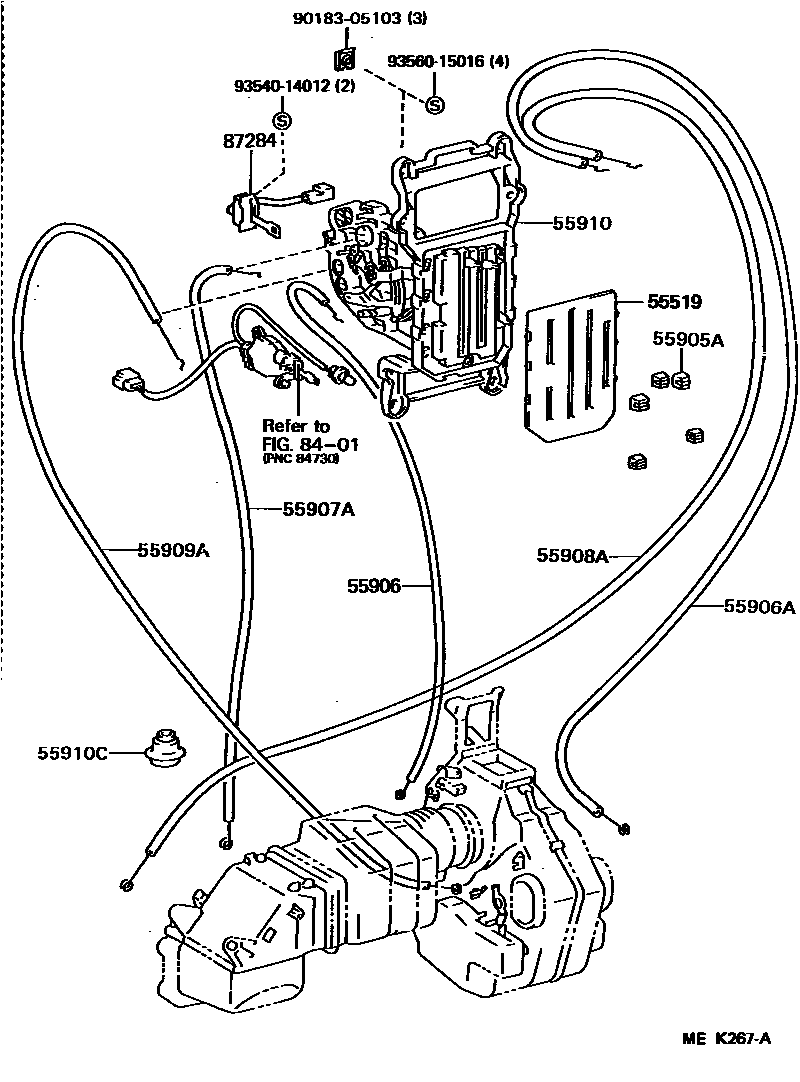

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1

55519PLATE, HEATER CONTROL NAME

main55519-95405iLH8#,9#,YH81198708-199505

55905AKNOB, HEATER CONTROL

main55905-10110iLH8#,9#,YH81198708-199505

main55905-95707iLH8#,9#,YH81198708-199505

55906CABLE SUB-ASSY, HEATER CONTROL

main55905-36010iLH8#,9#,YH81199110-199505

main55905-95401iLH8#,9#,YH81198708-199110

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-36030iLH8#,9#,YH81199110-199505

main55906-95404iLH8#,9#,YH81198708-199110

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-36010iLH8#,9#,YH81199110-199505

main55907-95404iLH8#,9#,YH81198708-199110

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-95402iLH8#,9#,YH81198708-199505

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-95404iLH8#,9#,YH81198708-199505

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-36070iLH8#,9#,YH81199110-199505

main55910-95407iLH8#,9#,YH81198708-199110

sub55910-36070

sub55905-26010

sub55905-36010

sub55905-36020

sub55905-37020

sub55906-26020

sub55906-36030

sub55906-36040

sub55906-37010

sub55907-26020

sub55907-36010

sub55907-36020

sub55907-37010

55910CGROMMET(FOR HEATER CONTROL CABLE)

main90480-24215iLH8#,9#,YH81198708-199505

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88032-95400iLH80..IV198708-199505

9018305103

main90183-05103

9354014012

main93540-14012

9356015016

main93560-15016

14 parts on this diagram · 3 diagrams in section
