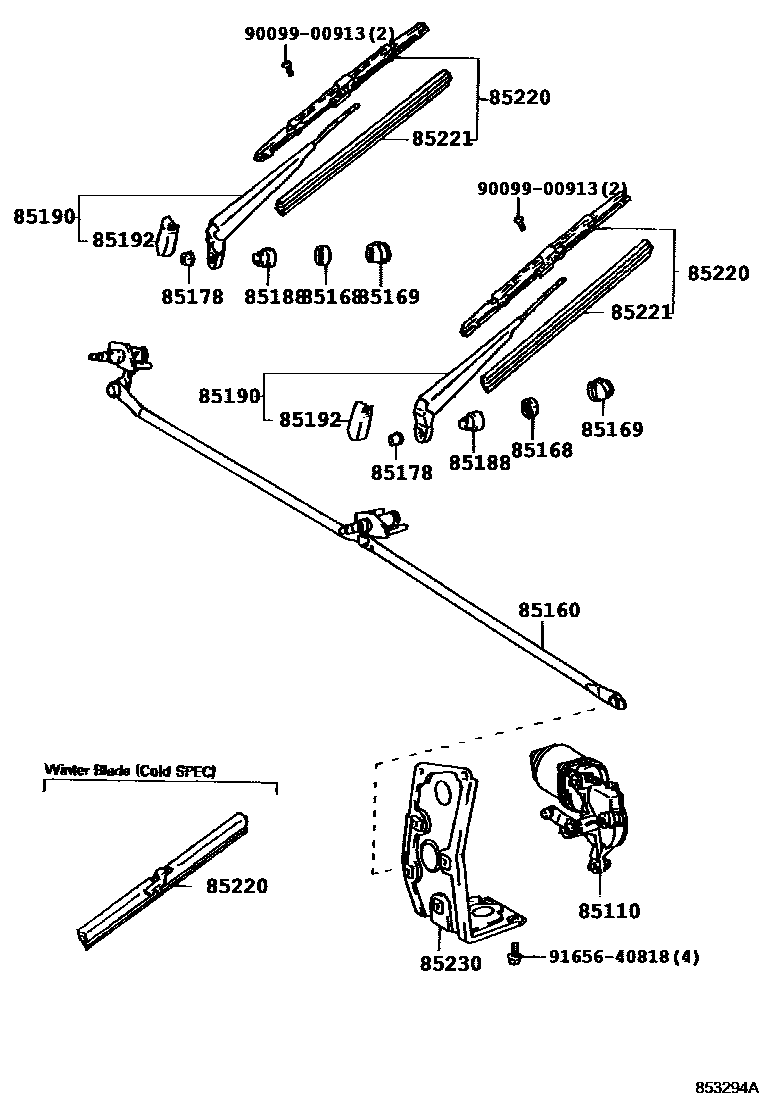

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-95441iLH8#,9#,YH81198708-199505

main85110-95445iLH8#,YH81198708-198808

main85110-95445iLH8#,9#,YH81198808-199505

85160LINK ASSY, WINDSHIELD WIPER

main85160-95409iLH8#,9#,YH81198708-199505

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95700iLH8#,9#,YH81198708-199505

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85179-95400iLH8#,9#,YH81198708-199505

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08123iLH8#,9#,YH81198708-199312

main90179-08209iLH8#,9#,YH81199312-199505

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85135-95700iLH8#,9#,YH81198708-199505

85190ARM ASSY, WINDSHIELD WIPER

main85190-95417iLH8#,9#,YH81198708-199505

main85210-95402iLH8#,9#,YH81198708-199505

85192COVER, WINDSHIELD WIPER ARM

main85195-95J00iLH8#,9#,YH81198708-199505

85220BLADE ASSY, WINDSHIELD WIPER

main85212-37010iLH8#,9#,YH81199002-199505

sub85220-12651

main85220-12560iLH8#,YH81198708-199002

sub85220-12561

main85220-12561iLH8#,9#,YH81199002-199505

sub85222-10220

main85220-12570iLH8#,YH81198708-199002

sub85212-37010

main85220-14170iLH8#,YH81198708-199003

sub85291-14010

main85291-14010iLH8#,9#,YH81199003-199505

sub85291-28H00

85221BLADE, WINDSHIELD WIPER

main85221-12230iLH8#,9#,YH81198708-199505

sub85214-12H90

85230BRACKET ASSY, WINDSHIELD WIPER

main85269-95400iLH8#,9#,YH81198708-199505

9009900913

main90099-00913

9165640818

main91656-40818

13 parts on this diagram · 1 diagram in section
