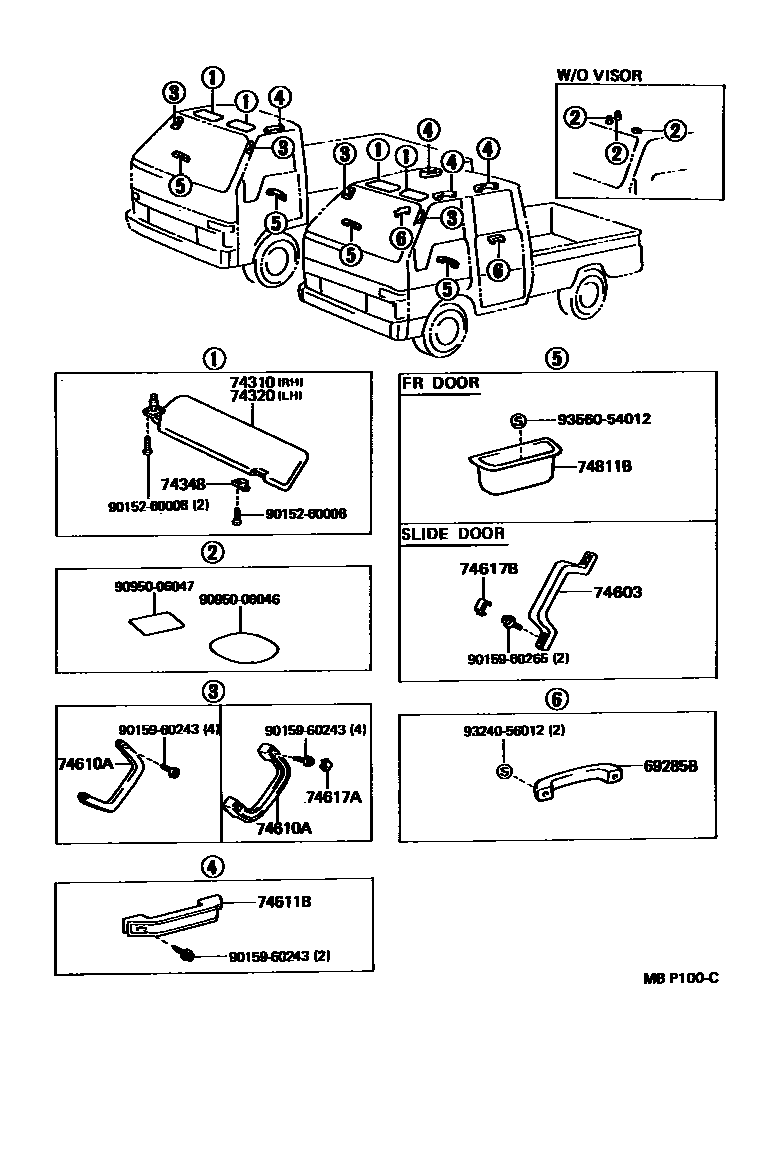

ARMREST & VISOR

0001 1 0002 1

69285BHANDLE, PULL

main69285-95404-01iLH8#,YH81..TW198708-199109

BLACK,TRIM8#

sub69285-95404

main69285-95700-B0iLH8#,9#,YH81..TW199109-199505

GRAY,TRIM1#

sub69285-95404

sub69285-95700

74310VISOR ASSY, RH

main74310-95430-03iLH80,YH81;LH85..T2,T3198708-199109

main74310-95430-03iLH80,90,YH81;LH85,95..T2,T3199109-199505

main74310-95439-03iLH8#,YH81198708-199109

GRAY,TRIM8#

sub74310-95439

main74310-95439-03iLH80..TB..ST;LH85,YH81..T2,T3;LH80,YH81..T1..IV;LH80..TS..(T2,T3)199109-199505

sub74310-95439

main74310-95439-03iLH8#,9#,YH81199109-199505

GRAY,TRIM1#

sub74310-95439

main74310-95442-03iLH80..4FC..ST199109-199505

main74310-95442-03iLH80,YH81..T2,T3;LH80,YH81..T1..IV198708-199109

main74310-95442-03iLH80..4FC..WT;LH90,YH81..T2,T3;LH80..5F..(T2,T3);LH80,YH81..T1..IV199109-199505

main74310-95A27-03iLH85..T2..IV199109-199505

main74310-95A27-03iLH95..T2,T3;LH85..T3..IV;LH85..(T2,T3)..CBU199109-199505

main74310-95A27-03iLH85..T2,T3198710-199109

74320VISOR ASSY, LH

main74320-95418-03iLH80,YH81;LH85..T2,T3198708-199109

main74320-95418-03iLH80,YH81..(T1,TW)..CBU199109-199505

main74320-95418-03iLH9#..T2,T3;LH80..TB..WT199109-199505

main74320-95418-03iLH9#..T2,T3;LH80..TB..WT199109-199505

main74320-95425-03iLH8#,YH81..T1,T2,T3198708-199109

GRAY,TRIM8#

sub74320-95425

main74320-95425-03iLH80,YH81..(T1,TW)..CBU199109-199505

sub74320-95425

main74320-95425-03iLH80..TB..ST;LH85,YH81..T2,T3;LH80,YH81..T1..IV;LH80..TS..(T2,T3)199109-199505

GRAY,TRIM1#

sub74320-95425

main74320-95428-03iLH80..4FC..WT;LH9#,YH81..T2,T3;LH80..5F..(T2,T3);LH85..(T2,T3)..CBU;LH8#,YH81..(T1,T3)..IV199109-199505

main74320-95428-03iLH85..T2,T3198710-199109

main74320-95428-03iLH85..T2..IV;LH80..4FC..ST199109-199505

74348HOLDER, VISOR

main74348-12010-23iLH80..TB..ST;LH80..4FC..WT;LH85..(T2,T3)..CBU;LH8#,YH81..(T1,T3)..IV;LH80,YH81..5F..TS..(T2,T3)199109-199505

sub74348-12010

sub74348-30010

main74348-12010-23iLH8#,YH81198708-199109

GRAY,TRIM8#

sub74348-12010

sub74348-30010

main74348-12010-23iLH8#,YH81198708-199109

sub74348-12010

sub74348-30010

main74348-12010-23iLH8#,9#,YH81199109-199505

GRAY,TRIM1#

sub74348-12010

sub74348-30010

main74348-12010-23iLH8#,9#,YH81199109-199505

sub74348-12010

sub74348-30010

main74348-12010-23iLH8#,9#,YH81199109-199505

sub74348-12010

sub74348-30010

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-12030-04iLH80..T1,T2,T3198708-199109

BLUE,TRIM8#

sub74610-12030

sub74610-16010

sub74603-16010

main74610-12030-B0iLH80,90..T1,T2,T3199109-199309

GRAY,TRIM1#

sub74610-12030

sub74610-16010

sub74603-16010

74610AGRIP SUB-ASSY, ASSIST

main74610-20030-44iLH8#,YH81..T2,T3;LH80,YH81..T1..IV198708-199109

sub74610-20030

main74610-20030-B0iLH85..T2..IV;LH80..4FC..ST199109-199505

sub74610-20030

main74610-20030-B0iLH80..4FC..WT;LH9#,YH81..T2,T3;LH80..5F..(T2,T3);LH85..(T2,T3)..CBU;LH8#,YH81..(T1,T3)..IV199109-199505

sub74610-20030

main74610-95403-04iLH8#,YH81198708-199109

BLUE,TRIM8#

sub74610-95403

sub74620-87001

main74610-95403-04iLH8#,YH81198708-199109

sub74610-95403

sub74620-87001

main74610-95404-04iLH80..T2,T3;LH80..T1..IV198708-199109

sub74610-95404

sub74610-95405

main74610-95404-04iLH80..T1,T2,T3198708-199109

sub74610-95404

sub74610-95405

main74610-95404-B0iLH80,90..T1,T2,T3199109-199309

sub74610-95404

sub74610-95405

main74620-87001-B0iLH8#,9#,YH81199109-199505

GRAY,TRIM1#

sub74620-87001

main74620-87001-B0iLH8#,9#,YH81199109-199505

sub74620-87001

main74620-87001-B0iLH80..4FC..WT;LH9#,YH81..T2,T3;LH80..5F..(T2,T3);LH85..(T2,T3)..CBU;LH8#,YH81..(T1,T3)..IV199109-199505

sub74620-87001

74611BGRIP, ASSIST

main74611-92601-04iLH8#,YH81..T1,T2,T3198708-199109

BLUE,TRIM8#

sub74611-92601

main74611-92601-B0iLH8#,9#,YH81..TW199109-199505

GRAY,TRIM1#

sub74611-92601

74617APLUG, ASSIST GRIP

main74617-14010-44iLH80..T2,T3;LH80..T1..IV198708-199109

sub74617-14010

main74617-14010-44iLH80..T2,T3;LH80..T1..IV198708-199109

sub74617-14010

main74617-14010-50iLH80..4FC..WT;LH9#,YH81..T2,T3;LH80..5F..(T2,T3);LH85..(T2,T3)..CBU;LH8#,YH81..(T1,T3)..IV199109-199505

sub74617-14010

main74617-14010-50iLH85..T2..IV;LH80..4FC..ST199109-199505

sub74617-14010

main74617-95J00-24iLH80..T2,T3;LH80..T1..IV198708-199109

sub74617-95J00

main74617-95J00-24iLH80..T1..CBU198708-199109

BLUE,TRIM8#

sub74617-95J00

main74617-95J00-B0iLH80..T1..CBU199109-199309

sub74617-95J00

main74617-95J00-B0iLH80..T1..CBU199109-199309

GRAY,TRIM1#

sub74617-95J00

74617BPLUG, DOOR ASSIST GRIP

main74617-16010-34iLH80..T1,T2,T3198708-199109

BLUE,TRIM8#

sub74617-16010

main74617-16010-B2iLH80,90..T1,T2,T3199109-199309

GRAY,TRIM1#

sub74617-16010

74811BHANDLE, DOOR PULL

main74811-87001-24iLH80..T1,T2,T3198808-199109

sub74811-87001

main74811-87001-24iLH80..T1,T2,T3198808-199109

BLUE,TRIM8#

sub74811-87001

main74811-87001-34iLH8#,YH81198708-198808

BLUE,TRIM8#

sub74811-87001

main74811-87001-34iLH8#,YH81198708-198808

sub74811-87001

main74811-87001-B0iLH8#,9#,YH81199109-199505

GRAY,TRIM1#

sub74811-87001

main74811-87001-B0iLH80,90..T1,T2,T3199109-199309

sub74811-87001

9015260008

main90152-60008

9015960243

main90159-60243

9015960265

main90159-60265

9095006046

main90950-06046

9095006047

main90950-06047

9324056012

main93240-56012

9356054012

main93560-54012

17 parts on this diagram · 2 diagrams in section
