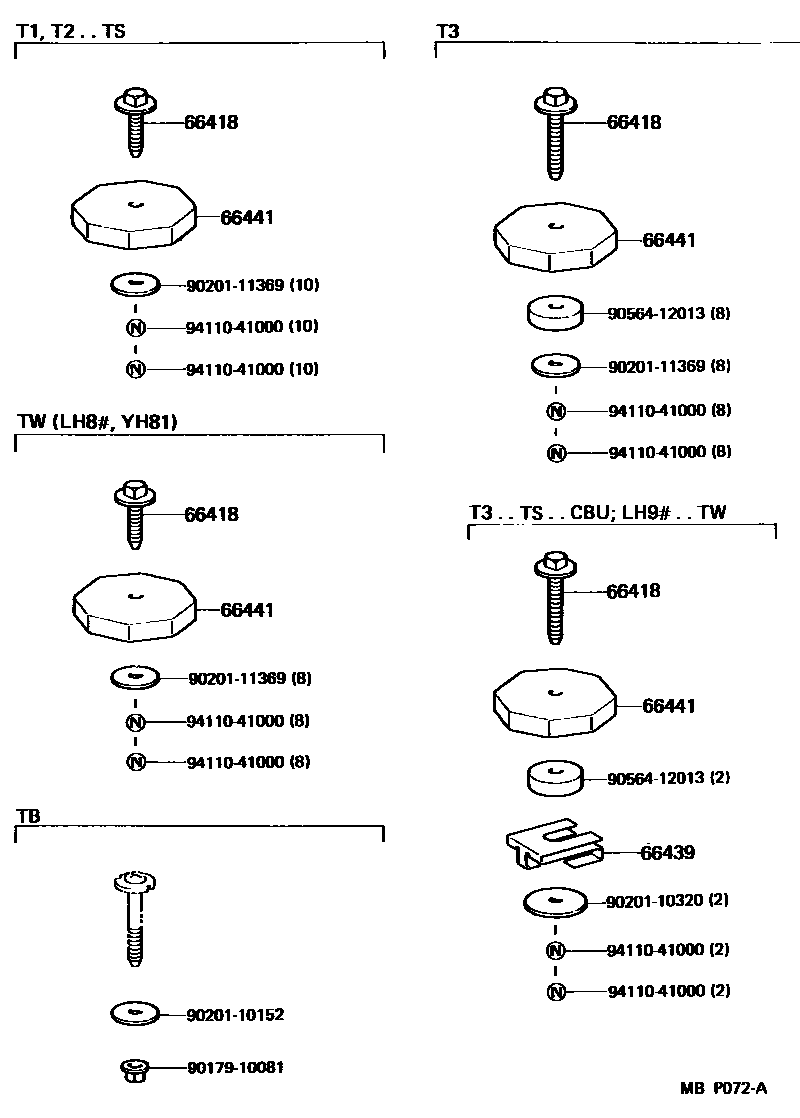

REAR BODY MOUNTING

66418BOLT, MOUNTING

main90119-10102iLH80,YH81..TW198708-199505

main90119-10490iLH80,YH81..T3;LH85,95..TS..(T2,T3)..CBU198708-199505

66439SHIM, SUPPORT

main66439-95400iLH8#,95,YH81..TS..T3..CBU198708-199505

66441SHIM, MOUNTING, NO.1

main66441-95A01iLH80,YH81..TW198708-199310

main90564-12013iLH80,YH81..T3;LH85,95..TS..(T2,T3)..CBU198708-199505

main90564-15142iLH80,YH81..TW199310-199505

9017910081

main90179-10081

9020110152

main90201-10152

9020110320

main90201-10320

9020111369

main90201-11369

9056412013

main90564-12013

9411041000

main94110-41000

9 parts on this diagram · 1 diagram in section
