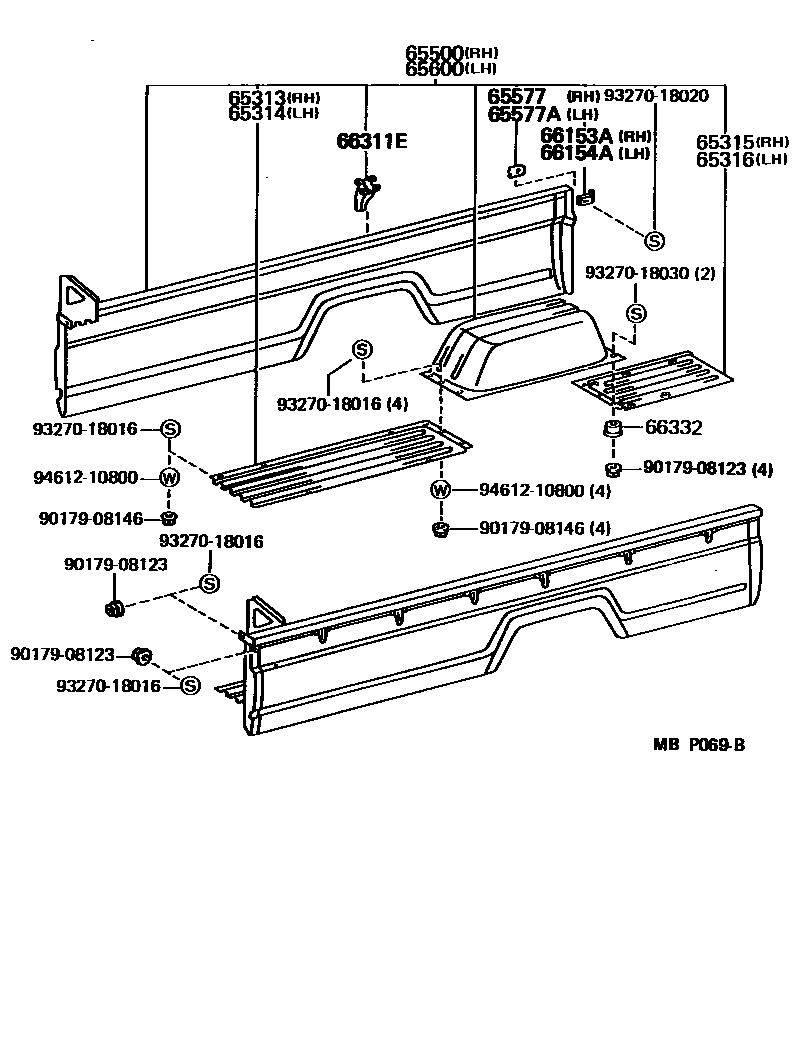

REAR BODY SIDE PANEL

0001 1 0002 1 0003 1

65313PANEL, FLOOR FRONT CORNER, RH

main65313-25020iLH8#,YH81..TW199210-199505

main65313-26020iLH80,YH81..T1..CBU199210-199505

main65313-95027iLH8#,YH81..TW198708-199210

sub65313-25020

main65313-95A04iLH80,YH81..T1..CBU198708-199210

sub65313-26020

65314PANEL, FLOOR FRONT CORNER, LH

main65314-25020iLH80,YH81..T1..CBU199210-199505

main65314-25030iLH8#,YH81..TW199210-199505

main65314-95022iLH80,YH81..T1..CBU198708-199210

sub65314-25020

main65314-95027iLH8#,YH81..TW198708-199210

sub65314-25030

65315PANEL, FLOOR REAR CORNER, RH

main65315-25010iLH8#,YH81..(T1,TW)..CBU199210-199505

main65315-95405iLH8#,YH81..(T1,TW)..CBU198708-199210

sub65315-25010

65316PANEL, FLOOR REAR CORNER, LH

main65316-25010iLH8#,YH81..(T1,TW)..CBU199210-199505

main65316-95405iLH8#,YH81..(T1,TW)..CBU198708-199210

sub65316-25010

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-25050iLH8#,YH81..TS..(T2,T3)..CBU199109-199505

sub65500-25051

main65500-25080iLH8#,YH81..TW199210-199505

main65500-26030iLH8#,YH81..TS..(T2,T3)..CBU199008-199109

sub65500-25030

main65500-26050iLH9#..TW..CBU199109-199505

sub65500-26051

main65500-26060iLH9#..TS..(T2,T3)..CBU199109-199505

sub65500-26061

main65500-26090iLH80,YH81..T1..CBU199210-199505

main65500-92219iLH90..TB199109-199505

sub65500-92731

main65500-92224iLH80..TB198708-199505

main65500-92502iLH85..TB198910-199505

main65500-92504iLH85..TB198710-198910

sub65500-92502

main65500-95070iLH8#,YH81..TW198708-199210

sub65500-25080

main65500-95A10iLH8#,YH81..TS..(T2,T3)..CBU198708-198910

sub65500-26030

main65500-95A12iLH80,YH81..T1..CBU198708-199210

sub65500-26090

main65500-95A13iLH8#,YH81..TS..(T2,T3)..CBU198910-199008

sub65500-26030

65577RETAINER, TAIL GATE LATCH FEMALE

main65577-95012iLH8#,YH81..(T1,TW)..CBU198708-199505

65577ARETAINER, TAIL GATE FEMALE

main65577-95012iLH8#,YH81..(T1,TW)..CBU198708-199505

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-25050iLH8#,YH81..TS..(T2,T3)..CBU199109-199505

sub65600-25051

main65600-25080iLH8#,YH81..TW199210-199505

main65600-26030iLH8#,YH81..TS..(T2,T3)..CBU199008-199109

sub65600-25030

main65600-26050iLH9#..TW..CBU199109-199505

sub65600-26051

main65600-26060iLH9#..TS..(T2,T3)..CBU199109-199505

sub65600-26061

main65600-26090iLH80,YH81..T1..CBU199210-199505

main65600-92219iLH90..TB199109-199505

sub65600-92731

main65600-92224iLH80..TB198708-199505

main65600-92502iLH85..TB198910-199505

main65600-92504iLH85..TB198710-198910

sub65600-92502

main65600-95072iLH8#,YH81..TW198708-199210

sub65600-25080

main65600-95A07iLH80,YH81..T1..CBU198708-199210

sub65600-26090

main65600-95A09iLH8#,YH81..TS..(T2,T3)..CBU198708-198910

sub65600-26030

main65600-95A11iLH8#,YH81..TS..(T2,T3)..CBU198910-199008

sub65600-26030

66153ALATCH, TAIL GATE FEMALE, RH

main66153-26010iLH9#..TS..CBU;LH8#,YH81..TS..(T2,T3)..CBU199109-199505

main66153-95012iLH8#,YH81..(T1,TW)..CBU198708-199505

main66153-95A01iLH8#,YH81..TS..(T2,T3)..CBU198708-199109

66154ALATCH, TAIL GATE FEMALE, LH

main66153-95012iLH8#,YH81..(T1,TW)..CBU198708-199505

main66154-26010iLH9#..TS..CBU;LH8#,YH81..TS..(T2,T3)..CBU199109-199505

main66154-95A01iLH8#,YH81..TS..(T2,T3)..CBU198708-199109

66311EHOOK, ROPE

main66311-90K00iLH8#,YH81..TW199210-199505

main66311-95010iLH8#,YH81..TW198708-199210

sub66311-90K00

66332CUSHION, RUBBER

main66332-95A00iLH8#,YH81..(T1,TW)..CBU198708-199505

9017908123

main90179-08123

9017908146

main90179-08146

9327018016

main93270-18016

9327018020

main93270-18020

9327018030

main93270-18030

9461210800

main94612-10800

18 parts on this diagram · 3 diagrams in section
