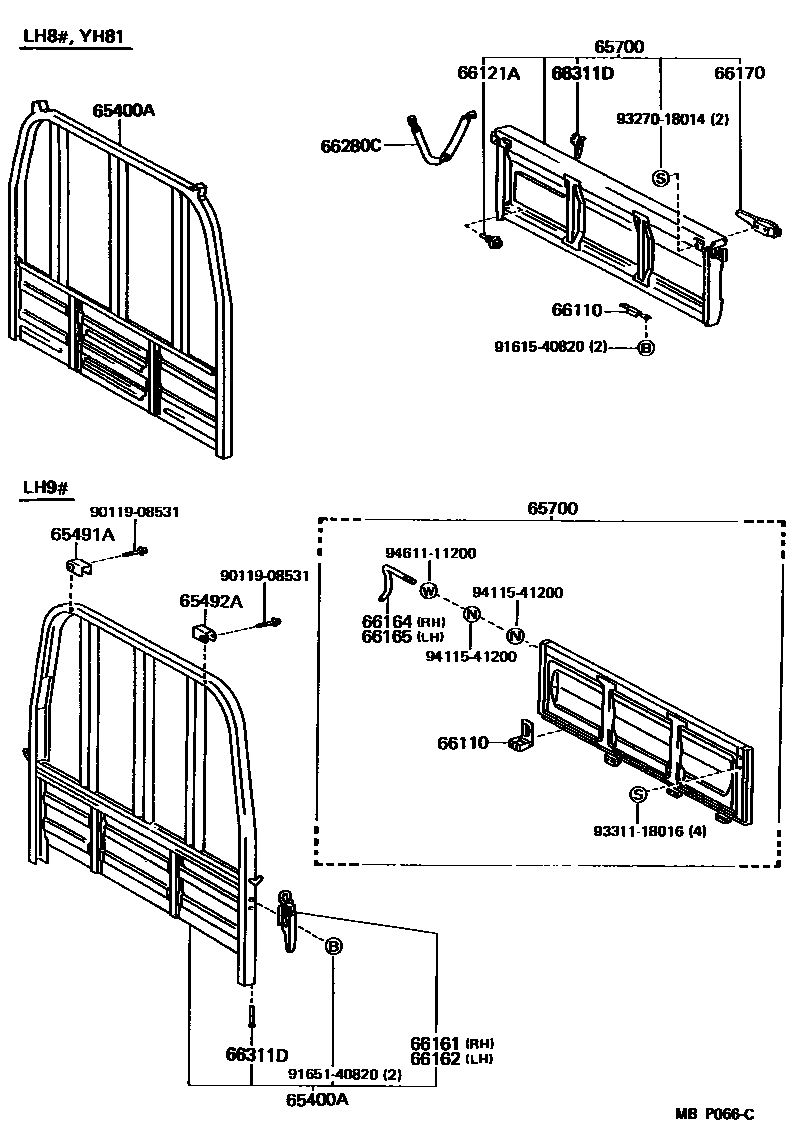

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0003 1

65400AGUARD ASSY, REAR BODY

main65400-26010iLH80,90,YH81..TS..T2..CBU199008-199210

sub65400-26011

main65400-26011iLH80,90,YH81..TS..T2..CBU199210-199505

main65400-26020iLH90..TW..CBU199109-199210

sub65400-26021

main65400-26021iLH90..TW..CBU199210-199505

main65400-26030iLH95..T3..CBU199109-199210

sub65400-26031

main65400-26031iLH95..T3..CBU199210-199305

main65400-26032iLH95..T3..CBU199305-199505

main65400-26040iLH95..TW199109-199210

sub65400-26041

main65400-26041iLH95..TW199210-199505

main65400-26050iLH90..TB199109-199309

sub65400-26140

sub66311-92701

main65400-26060iLH80,YH81..T1..CBU199210-199505

main65400-26070iLH80,YH81..TW199210-199505

main65400-26080iLH80,YH81..T3199210-199505

main65400-26090iLH85..TS..T3..CBU199210-199305

main65400-26091iLH85..TS..T3..CBU199305-199505

main65400-26100iLH85..TW199210-199505

main65400-26110iLH80..TB199309-199505

sub65400-25170

main65400-26120iLH85..TB..T3199309-199505

main65400-26130iLH85..TB..T2199309-199505

main65400-26140iLH90..TB199309-199505

main65400-92507iLH80..TB198708-199309

sub65400-26110

sub66311-92701

main65400-92508iLH85..TB..T3198910-199309

sub65400-26120

sub66311-92701

main65400-92509iLH85..TB..T2198910-199309

sub65400-26130

sub66311-92701

main65400-92510iLH85..TB..T3198710-198910

main65400-92511iLH85..TB..T2198710-198910

main65400-95A06iLH80,YH81..T3198708-198910

sub65400-95A12

main65400-95A07iLH80,YH81..TS..T2..CBU198708-198910

sub65400-95A13

main65400-95A08iLH80,YH81..T1..CBU198708-199210

sub65400-26060

main65400-95A09iLH85..TS..T3..CBU198710-198910

sub65400-95A14

main65400-95A10iLH85..TS..T2..CBU198710-198910

sub65400-95A15

main65400-95A11iLH8#,YH81..TW198708-199210

sub65400-26070

main65400-95A12iLH80,YH81..T3198910-199210

sub65400-26080

main65400-95A13iLH80,YH81..TS..T2..CBU198910-199008

main65400-95A14iLH85..TS..T3..CBU198910-199210

sub65400-26090

main65400-95A15iLH85,95..TS..T2..CBU198910-199505

65491ASTOP, GUARD FRAME LOAD SLIDE, RH

main65491-25010iLH9#..TS..CBU;LH8#,YH81..TS..(T2,T3)..CBU199008-199505

main65491-37010iLH8#,90..TB199008-199505

main65491-92702iLH8#..TB198708-199008

sub65491-37010

main65491-95A03iLH8#,YH81..TS..(T2,T3)..CBU198708-199008

sub65491-25010

65492ASTOP, GUARD FRAME LOAD SLIDE, LH

main65492-25010iLH9#..TS..CBU;LH8#,YH81..TS..(T2,T3)..CBU199008-199505

main65492-37010iLH8#,90..TB199008-199505

main65492-92700iLH8#..TB198708-199008

sub65492-37010

main65492-95A00iLH8#,YH81..TS..(T2,T3)..CBU198708-199008

sub65492-25010

65700GATE ASSY, REAR BODY TAIL

main65700-25010iLH8#,YH81..(T1,TW)..CBU199210-199505

main65700-26010iLH9#..TS..CBU;LH8#,YH81..TS..(T2,T3)..CBU199109-199505

main65700-92208iLH80,90..TB198708-199305

sub65700-92721

main65700-92500iLH85..TB198910-199505

sub65700-92723

main65700-92501iLH85..TB198710-198910

sub65700-92721

main65700-92721iLH80,90..TB199305-199505

main65700-95030iLH8#,YH81..(T1,TW)..CBU198708-199210

sub65700-25010

main65700-95031iLH8#,YH81..TS..(T2,T3)..CBU198708-198910

sub65700-95032

main65700-95032iLH8#,YH81..TS..(T2,T3)..CBU198910-199109

66110HINGE ASSY, TAIL GATE

main66110-26010iLH9#..TS..CBU;LH8#,YH81..TS..(T2,T3)..CBU199109-199505

main66110-92702iLH8#,90..TB198708-199505

main66110-95014iLH8#,YH81..(T1,TW)..CBU198708-199505

main66110-95020iLH8#,YH81..TS..(T2,T3)..CBU198708-199109

66121ABOLT, TAIL GATE MALE

main66121-95012iLH8#,YH81..(T1,TW)..CBU198708-199505

66161HANDLE, SIDE GATE LATCH, RH

main65490-92701iLH8#,YH81..TS..(T2,T3)..CBU198708-199505

66162HANDLE, SIDE GATE LATCH, LH

main65480-92700iLH85,95..TS..T2..CBU198708-199505

66164HANDLE, TAIL GATE LATCH, RH

main66264-26010iLH9#..TS..CBU;LH8#,YH81..TS..(T2,T3)..CBU199109-199505

main66264-92700iLH8#,90..TB198708-199505

sub66264-37010

sub66165-92701

main66264-95010iLH8#,YH81..TS..(T2,T3)..CBU198708-199109

66165HANDLE, TAIL GATE LATCH, LH

main66265-26010iLH9#..TS..CBU;LH8#,YH81..TS..(T2,T3)..CBU199109-199505

main66265-92700iLH8#,90..TB198708-199505

sub66265-37010

sub66165-92701

main66265-95011iLH8#,YH81..TS..(T2,T3)..CBU198708-199109

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95402iLH8#,YH81..(T1,TW)..CBU198708-199505

66280CCHAIN ASSY, TAIL GATE

main66280-25010iLH9#..TS..CBU;LH8#,YH81..TS..(T2,T3)..CBU198910-199505

main66280-37010iLH8#,YH81..(T1,TW)..CBU198910-199505

main66280-92702iLH8#,90..TB198708-199505

main66280-95016iLH8#,YH81..TS..(T2,T3)..CBU198708-198910

sub66280-25010

main66280-95403iLH8#,YH81..(T1,TW)..CBU198708-198910

sub66280-37010

66311DHOOK, ROPE

main66311-90K00iLH8#,YH81..(T1,TW)..CBU199210-199505

main66311-92701iLH8#,90..TB198708-199309

main66311-95010iLH8#,YH81..(T1,TW)..CBU198708-199210

sub66311-90K00

main66312-26010iLH9#..TW..CBU199109-199505

sub66312-26011

main66312-95A01iLH9#..TW..CBU199109-199505

main66312-95A01iLH8#,9#,YH81..TS..(T2,T3)..CBU198708-199505

9011908531

main90119-08531

9161540820

main91615-40820

9165140820

main91651-40820

9327018014

main93270-18014

9331118016

main93311-18016

9411541200

main94115-41200

9461111200

main94611-11200

20 parts on this diagram · 3 diagrams in section
