INSIDE TRIM BOARD

62211GARNISH, FRONT PILLAR, RH

main62211-95400-03iLH80..4FC..WT;LH9#,YH81..T2,T3;LH80..5F..(T2,T3);LH85..(T2,T3)..CBU;LH8#,YH81..(T1,T3)..IV199109-199505

GRAY,TRIM1#

main62211-95400-03iLH8#,YH81..T2,T3;LH80,YH81..T1..IV198708-199109

GRAY,TRIM8#

62212GARNISH, FRONT PILLAR, LH

main62212-95400-03iLH8#,YH81..T2,T3;LH80,YH81..T1..IV198708-199109

GRAY,TRIM8#

main62212-95400-03iLH80..4FC..WT;LH9#,YH81..T2,T3;LH80..5F..(T2,T3);LH85..(T2,T3)..CBU;LH8#,YH81..(T1,T3)..IV199109-199505

GRAY,TRIM1#

62213PAD, FRONT PILLAR GARNISH

main62213-95400iLH8#,YH81..T2,T3;LH80,YH81..T1..IV198708-199505

62313DTRIM, FRONT DOOR OPENING, RH

main62313-95404-04iLH8#,YH81198708-199109

BLUE,TRIM8#

sub62333-95400

main62313-95404-B0iLH8#,9#,YH81199109-199505

GRAY,TRIM1#

sub62333-95400

main62313-95406-04iLH8#,YH81..T2,T3;LH80,YH81..T1..IV198708-199109

sub62313-37020

main62313-95406-B0iLH85..T2..IV;LH80..4FC..ST199109-199505

sub62313-37020

main62313-95406-B0iLH85..T3..IV;LH80..4FC..WT;LH85..(T2,T3)..CBU;LH9#,YH81..T1,T2,T3;LH80..5F..(T1,T2,T3)199109-199505

sub62313-37020

62314DTRIM, FRONT DOOR OPENING, LH

main62313-95404-04iLH8#,YH81198708-199109

BLUE,TRIM8#

sub62333-95400

main62313-95404-B0iLH8#,9#,YH81199109-199505

GRAY,TRIM1#

sub62333-95400

main62313-95406-04iLH8#,YH81..T2,T3;LH80,YH81..T1..IV198708-199109

sub62313-37020

main62313-95406-B0iLH85..T2..IV;LH80..4FC..ST199109-199505

sub62313-37020

main62313-95406-B0iLH80..4FC..WT;LH9#,YH81..T2,T3;LH80..5F..(T2,T3);LH85..(T2,T3)..CBU;LH8#,YH81..(T1,T3)..IV199109-199505

sub62313-37020

main62314-95405-04iLH80..T2,T3;LH80..T1..IV198708-199109

sub62313-95406

62333ATRIM, REAR DOOR OPENING, RH

main62333-95400-04iLH8#,YH81..TW198708-199109

BLUE,TRIM8#

sub62333-25010

main62333-95400-B0iLH8#,9#,YH81..TW199109-199505

GRAY,TRIM1#

sub62333-25010

62334ATRIM, REAR DOOR OPENING, LH

main62333-95400-04iLH8#,YH81..TW198708-199109

BLUE,TRIM8#

sub62333-25010

main62333-95400-B0iLH8#,9#,YH81..TW199109-199505

GRAY,TRIM1#

sub62333-25010

62335ACOVER, REAR DOOR OPENING TRIM

main62335-92600-04iLH8#,YH81..TW198708-199109

BLUE,TRIM8#

sub62335-92600

main62335-92600-B0iLH8#,9#,YH81..TW199109-199505

GRAY,TRIM1#

sub62335-92600

62638AGARNISH, QUARTER PILLAR, RH

main62638-95400-03iLH85..T2..IV;LH80..4FC..ST199109-199505

GRAY,TRIM1#

main62638-95400-03iLH8#,YH81..T2,T3;LH80,YH81..T1..IV198708-199109

GRAY,TRIM8#

62639AGARNISH, QUARTER PILLAR, LH

main62639-95400-03iLH8#,YH81..T2,T3;LH80,YH81..T1..IV198708-199109

main62639-95400-03iYH81..T2,T3;YH81..ST..IV199109-199505

main62639-95400-03iLH80..4FC..WT;LH9#,YH81..T2,T3;LH80..5F..(T2,T3);LH85..(T2,T3)..CBU;LH8#,YH81..(T1,T3)..IV199110-199309

main62639-95400-03iLH85..T2..IV;LH80..4FC..ST199110-199505

main62639-95401-03iLH80..T2,T3;LH80..T1..IV198708-199109

9095001266

main90950-01266

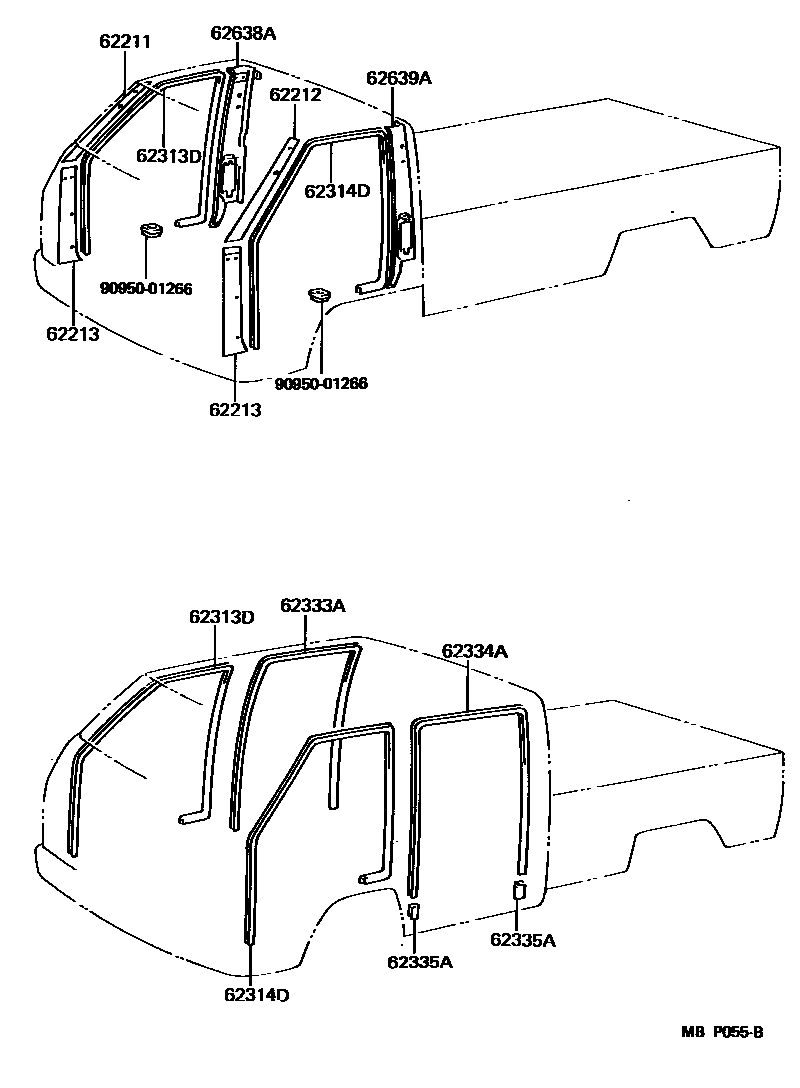

11 parts on this diagram · 1 diagram in section
