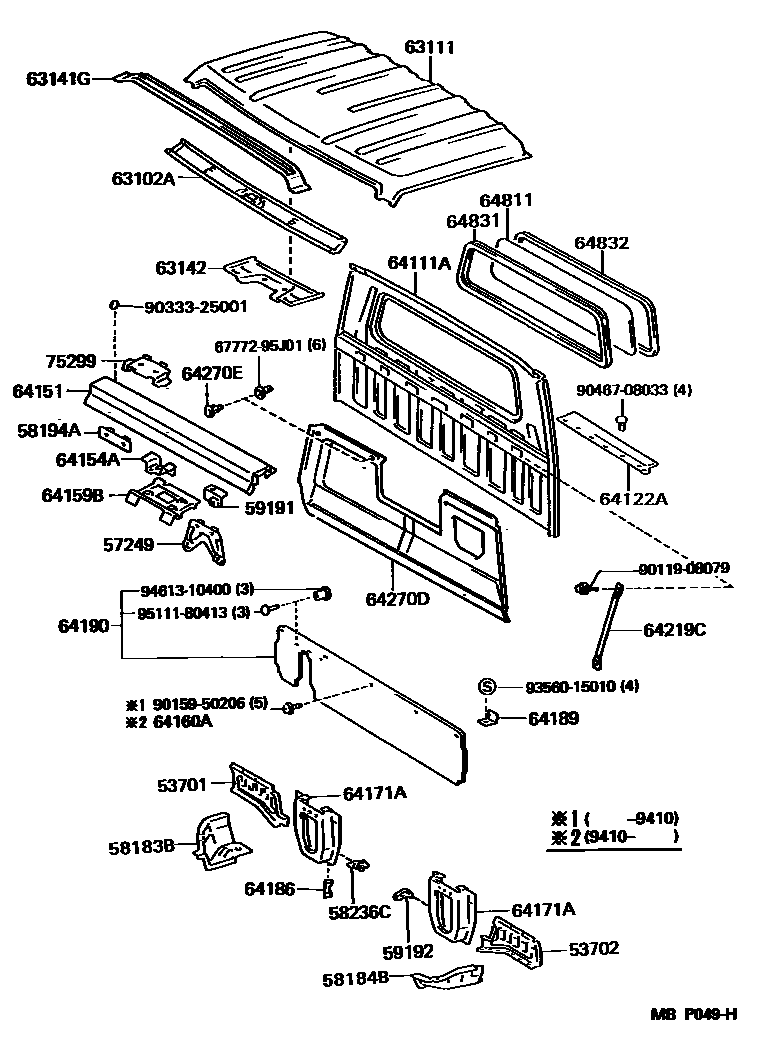

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

53701APRON SUB-ASSY, FRONT FENDER, RH

main53717-95411iLH8#,9#,YH81..TW¥2,440198708-199505

main53717-95413iLH8#,YH81..TW¥2,460198808-199008

sub53717-95411¥2,440

main53717-95A03iLH8#,YH81..T1,T2,T3¥3,510198708-199505

main53717-95A05iLH80,YH81..5F..(T1,T2,T3)¥3,540198808-199008

sub53717-95A03¥3,510

53702APRON SUB-ASSY, FRONT FENDER, LH

main53718-95412iLH8#,9#,YH81..TW¥2,440198708-199505

main53718-95414iLH8#,YH81..TW¥2,460198808-199008

sub53718-95412¥2,440

main53718-95A02iLH8#,YH81..T1,T2,T3¥3,510198708-199505

main53718-95A03iLH80,YH81..5F..(T1,T2,T3)¥3,540198808-199008

sub53718-95A02¥3,510

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-95A00iYH81¥1,070198912-199505

58183BREINFORCEMENT, REAR MOUNTING, RH

main58183-95405iLH8#,YH81¥4,120198708-199505

main58183-95406iLH85..TW;LH80,YH81..5F¥4,150198808-199008

sub58183-95405¥4,120

58184BREINFORCEMENT, REAR MOUNTING, LH

main58184-95404iLH80..4FC;LH85..T2,T3¥4,120198708-199505

main58184-95405iLH85..TW;LH80,YH81..5F¥4,150198808-199008

sub58184-95404¥4,120

58194ARETAINER, ENGINE COVER HINGE

main58194-95400iLH8#,9#¥390198912-199505

58236CBRACKET, CLUTCH TUBE

main58236-95A00iLH8#,9#,YH81..5F..(T1,T2,T3)¥940198708-199505

sub58236-25010¥860

59191BRACKET, NOISE SHUTTER

main59191-95A00iLH80,90..T1,T2,T3¥340198912-199505

59192BRACKET, NOISE SHUTTER, NO.2

main59192-95A00iLH80,90..T1,T2,T3¥330198708-199505

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63132-95418iLH8#,9#,YH81¥6,600198708-199505

sub63132-37010¥6,700

main63132-95420iLH8#,YH81..T1,T2,T3¥6,600198708-199505

sub63132-37010¥6,700

63111PANEL, ROOF

main63111-37010iLH8#,9#,YH81..T1,T2,T3¥30,500199004-199505

main63111-37020iLH8#,9#,YH81..T1,T2,T3¥30,500199004-199505

main63111-95409iLH8#,YH81..T1,T2,T3¥30,700198708-199004

sub63111-37010¥30,500

sub63141-37010¥6,100

main63111-95410iLH8#,YH81..T1,T2,T3¥30,700198708-199004

sub63111-37020¥30,500

sub63141-37010¥6,100

main63111-95416iLH80,90,YH81..TW¥60,400198808-199505

main63111-95417iLH8#,9#,YH81..TW¥60,400198708-199505

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-37010iLH8#,9#,YH81..T1,T2,T3¥6,100199004-199505

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95400iLH80,YH81..T1..CBU¥4,390198708-199505

64111APANEL, BACK

main64100-25010iYH81..T1,T2,T3¥59,900199107-199505

sub64100-25011¥59,400

main64100-25030iYH81..T1,T2,T3¥59,900199107-199505

sub64100-25031¥59,400

main64100-25040iLH80,90..T1,T2,T3¥59,900199107-199505

sub64100-25041¥59,400

main64100-25050iLH80..4FC..ST¥59,900199109-199505

sub64100-25051¥59,400

main64100-25050iLH90..T2;LH80..4FC..WT;LH80..5F..(T1,T2,T3)¥59,900199107-199505

sub64100-25051¥59,400

main64100-26010iLH85,95..T2,T3¥59,900199107-199505

sub64100-26011¥59,400

main64100-26020iLH95..T2,T3;LH85..T3..IV;LH85..(T2,T3)..CBU¥59,900199109-199505

sub64100-26021¥59,400

main64100-26020iLH85..T2,T3¥59,900199107-199505

sub64100-26021¥59,400

main64100-95039iLH80,YH81..T2,T3;LH80,YH81..T1..IV¥55,900198708-199107

sub64100-25170¥56,200

main64100-95040iLH80,YH81..T1,T2,T3¥55,900198708-199107

sub64100-25180¥56,200

main64100-95041iLH80..T1,T2,T3¥58,500198808-199107

sub64100-25190¥58,900

main64100-95042iLH80..T2,T3;LH80..T1..IV¥58,500198808-199107

sub64100-25200¥58,900

main64100-95450iLH8#,9#,YH81..TW¥59,800198708-199505

sub64111-95412¥54,100

sub63218-95402¥3,440

sub64116-95A01¥7,200

sub64117-95400¥4,770

sub64119-95A01¥370

main64100-95A08iLH85..T2,T3¥49,200198710-198808

sub64100-26070¥49,100

main64100-95A09iLH85..T2,T3¥49,200198710-198808

sub64100-26080¥49,100

main64100-95A10iLH85..T2,T3¥53,100198808-199107

sub64100-26090¥53,200

main64100-95A11iLH85..T2,T3¥49,100198808-199107

sub64100-26100¥49,200

64122ABAFFLE, DUST REAR BODY

main64122-25010iLH8#,9#,YH81..T1,T2¥6,800199210-199505

sub64122-25011¥6,800

main64122-25030iLH85..TB..T3;LH80,YH81..T3;LH85,95..T3..IV¥3,200199210-199505

main64122-37060iLH8#,9#,YH81..TW¥2,870199210-199505

sub64122-37061¥2,890

main64122-95019iLH85,95..T2..IV¥2,690198710-199210

main64122-95A03iLH8#,95,YH81..T3¥1,610198708-199210

main64122-95A04iLH80,90,YH81..TS..(T1,T2)¥1,960198708-199210

main64122-95A05iLH8#,90..TB..T2¥2,360198708-199210

main64122-95A05iYH81..T2..ST;LH80..4FC..ST¥2,360198709-199210

main64122-95A06iLH8#,9#,YH81..TW¥1,400198708-199210

main64122-95A07iLH85,95..TS..T2..CBU¥4,230198712-199210

64151FRAME, BACK

main64151-25020iLH8#,9#,YH81..T1,T2,T3¥11,300199107-199309

sub64151-25021¥11,300

sub90333-25001¥140

main64151-25021iLH8#,9#,YH81..T1,T2,T3¥11,300199309-199505

main64151-37010iLH8#,9#,YH81..TW¥11,300199107-199309

sub64151-37011¥11,300

sub90333-25001¥140

main64151-37011iLH8#,9#,YH81..TW¥11,300199309-199505

main64151-95028iLH8#,YH81..T1,T2,T3¥11,500198912-199107

main64151-95409iLH8#,YH81..TW¥11,500198912-199107

64154ARETAINER, BACK FRAME SHIFT CONTROL LINK

main64154-95A00iLH8#,9#,YH81..5F..(T1,T2,T3)¥1,130198912-199505

64159BBRACKET, BACK FRAME SHIFT CONTROL LINK

main64159-95A00iLH8#,9#,YH81..5F..(T1,T2,T3)¥1,670198912-199505

main64159-95A01iLH8#,9#,YH81..TW¥2,170198912-199505

64160ACLIP(FOR BACK PANEL UPPER SILENCER)

main90467-06171-C0iYH81..T1,T2,T3199410-199505

BLACK,TRIM1#

sub90467-06171¥110

64171ABRACKET SUB-ASSY, REAR MOUNTING

main64025-25010iLH8#,9#,YH81..T1,T2,T3¥9,400199107-199505

sub64025-25011¥7,800

main64025-25020iLH8#,9#,YH81..TW¥9,400199107-199505

main64171-95408iLH8#,YH81..T1,T2,T3¥9,100198708-199107

main64171-95410iLH8#,YH81..TW¥9,200198708-199107

64186RETAINER, REAR MOUNTING BRACKET

main64186-95A00iLH8#,9#,YH81¥370198708-199505

64189CLAMP, BACK PANEL SILENCER

main64189-95400iLH8#,9#..T1,T2,T3¥310198708-199505

main64189-95400iYH81..T2,T3;YH81..ST..IV¥310198708-199505

64190SILENCER ASSY, BACK PANEL

main64190-95014-03iLH8#,YH81..T2,T3;LH80,YH81..T1..IV198708-199109

main64190-95014-03iLH80..4FC..WT;LH9#,YH81..T2,T3;LH80..5F..(T2,T3);LH85..(T2,T3)..CBU;LH8#,YH81..(T1,T3)..IV199109-199505

main64190-95014-03iLH85..T2..IV;LH80..4FC..ST199109-199505

main64190-95015iLH8#,9#..T1,T2,T3¥14,000198708-199505

64219CSTAY, BACK PANEL

main64219-25010iLH8#,9#..T1,T2,T3¥2,360199109-199505

64270DTRIM ASSY, BACK PANEL

main64160-95401-03iLH8#,YH81..T2,T3;LH80,YH81..T1..IV198708-198711

sub64270-95400¥17,500

main64270-25010-B0iLH85..T2..IV;LH80..4FC..ST199109-199505

main64270-25010-B0iLH9#..T2,T3;LH85..T3..IV;LH80..4FC..WT;LH85..(T2,T3)..CBU;LH80..5F..(T1,T2,T3)199109-199505

main64270-95400-03iYH81..T1,T2,T3199109-199505

main64270-95400-03iLH8#,YH81..T2,T3;LH80,YH81..T1..IV198711-199109

64270ECLIP

main90467-07054-13iLH8#,YH81..T2,T3;LH80,YH81..T1..IV198708-199109

sub90467-07054¥110

main90467-07054-13iLH80..4FC..WT;LH9#,YH81..T2,T3;LH80..5F..(T2,T3);LH85..(T2,T3)..CBU;LH8#,YH81..(T1,T3)..IV199109-199505

sub90467-07054¥110

main90467-07054-13iLH85..T2..IV;LH80..4FC..ST199109-199505

sub90467-07054¥110

64811GLASS, BACK WINDOW

main64811-37010iLH8#,9#,YH81..T1,T2,T3¥5,700199109-199309

sub64811-37070¥0

main64811-37020iLH85..T3..IV;LH80..4FC..WT;LH85..(T2,T3)..CBU;LH9#,YH81..T1,T2,T3;LH80..5F..(T1,T2,T3)¥6,800199109-199505

main64811-37020iLH85..T2..IV;LH80..4FC..ST¥6,800199109-199505

main64811-37050iLH8#,9#,YH81..TW¥5,700199109-199309

main64811-95409iLH8#,9#,YH81..T1,T2,T3¥15,600198708-199505

main64812-95402iLH8#,9#,YH81..TW¥2,470198708-199505

sub64811-37050¥5,700

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95406iLH8#,9#,YH81¥4,940198708-199505

sub64831-37050¥4,930

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95010iLH8#,9#,YH81..T1,T2,T3¥1,080198708-199206

sub64832-95013¥1,030

main64832-95013iLH8#,9#,YH81..TW¥1,030198708-199505

sub64832-37040¥710

75299BASE, JACK HOLDER

main75299-95A00iLH8#,9#,YH81..T1,T2,T3¥1,080198912-199505

6777295J01WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J01¥100

9011908079

main90119-08079¥120

9015950206

main90159-50206¥120

9033325001

main90333-25001¥140

9046708033

main90467-08033¥50

9356015010

main93560-15010¥80

9461310400

main94613-10400¥160

9511180413

main95111-80413

38 parts on this diagram · 3 diagrams in section
