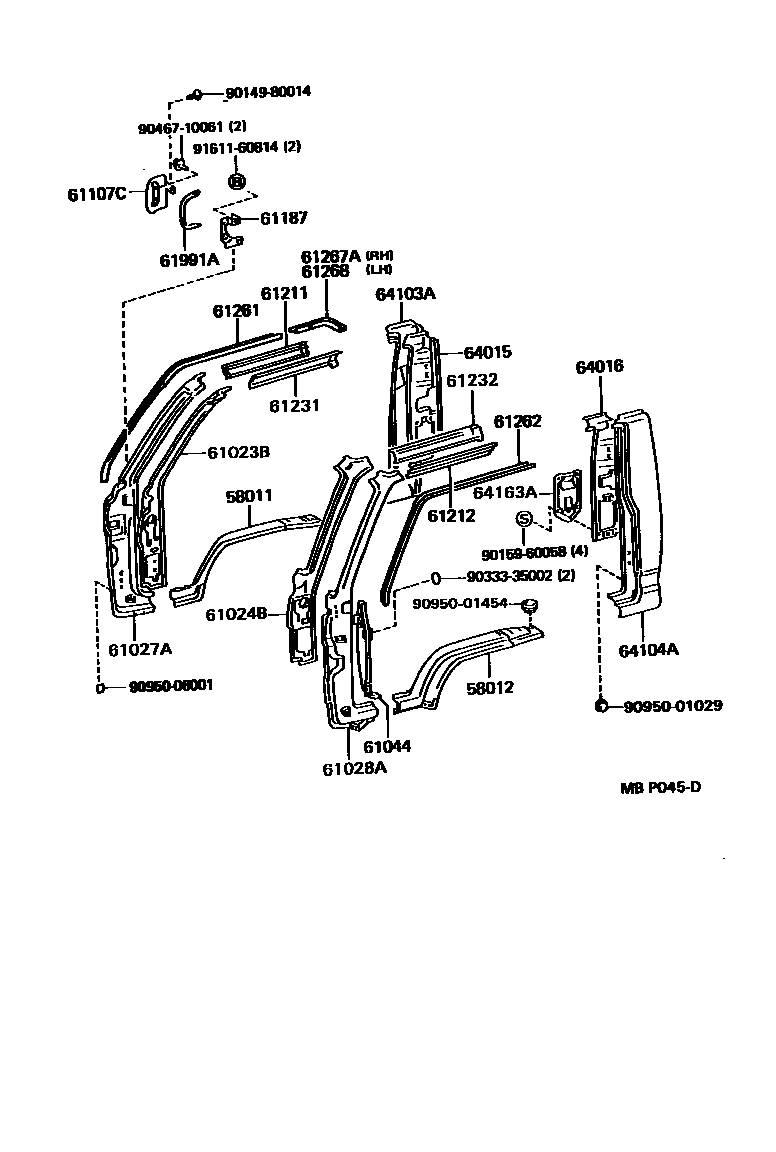

SIDE MEMBER

0001 1 0002 1

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58011-95011iLH8#,9#,YH81..T1,T2,T3198708-199505

sub58011-25010

main58011-95448iLH8#,9#,YH81..TW198708-199505

sub58011-37030

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58012-95012iLH8#,9#,YH81..T1,T2,T3198708-199505

main58012-95445iLH8#,9#,YH81..TW198708-199505

sub58012-37040

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-95400iLH8#,9#,YH81198708-199505

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-95400iLH8#,9#,YH81198708-199505

sub61024-95403

main61024-95403iLH80,90..T1,T2,T3198708-199309

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-37010iLH8#,YH81198911-199109

main61027-37030iLH8#,9#,YH81199109-199505

main61027-95400iLH8#,YH81198708-198911

sub61027-37010

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-37030iLH8#,9#,YH81199301-199505

main61028-37050iLH80,90..T1,T2,T3199301-199309

main61028-95400iLH8#,9#,YH81198708-199301

sub61028-37030

main61028-95402iLH80,90..T1,T2,T3198708-199301

sub61028-37050

61044EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH

main61044-95400iLH80,90..T1,T2,T3198708-199309

61107CCOVER SUB-ASSY, FRONT PILLAR DOOR HINGE, RH

main61107-95415iLH8#,9#,YH81198708-199505

61187BRACKET, FRONT PILLAR DOOR HINGE COVER, RH

main61187-95400iLH8#198708-199505

61211RAIL, ROOF SIDE, OUTER RH

main61211-95403iLH8#,9#,YH81..T1,T2,T3198708-199505

main61211-95404iLH8#,9#,YH81..TW198708-199505

61212RAIL, ROOF SIDE, OUTER LH

main61212-95403iLH8#,9#,YH81..T1,T2,T3198708-199505

main61212-95404iLH8#,9#,YH81..TW198708-199505

61231RAIL, ROOF SIDE, INNER RH

main61203-95401iLH8#,9#,YH81..TW198708-199505

main61203-95402iLH80..4FC..WT;LH9#,YH81..T2,T3;LH80..5F..(T2,T3);LH85..(T2,T3)..CBU;LH8#,YH81..(T1,T3)..IV198708-199505

main61203-95402iLH85..T2..IV;LH80..4FC..ST199109-199505

main61231-95405iLH8#,9#,YH81..T1,T2,T3198708-199505

61232RAIL, ROOF SIDE, INNER LH

main61204-95402iLH8#,9#,YH81..TW198708-199505

main61204-95403iLH85..T3..IV;LH80..4FC..WT;LH85..(T2,T3)..CBU;LH9#,YH81..T1,T2,T3;LH80..5F..(T1,T2,T3)198708-199505

main61204-95403iLH85..T2..IV;LH80..4FC..ST199109-199505

main61232-95406iLH8#,9#,YH81..T1,T2,T3198708-199505

61261CHANNEL, ROOF DRIP, RH

main61261-95407iLH8#,9#,YH81198708-199505

61262CHANNEL, ROOF DRIP, LH

main61262-95407iLH8#,9#,YH81198708-199505

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-95400iLH8#,9#,YH81..T1,T2,T3198808-199505

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-95400iLH8#,9#,YH81..T1,T2,T3198808-199505

61991APROTECTOR, FRONT PILLAR DOOR HINGE COVER, RH

main61991-37010iLH8#,9#,YH81199203-199505

main61991-95400iLH8#,9#,YH81198708-199203

sub61991-37010

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main64015-95401iLH8#,9#,YH81..T1,T2,T3198708-199505

sub64015-95411

main64015-95411iLH85..T2..IV;LH80..4FC..ST199109-199505

main64015-95411iLH8#,YH81..T2,T3;LH80,YH81..T1..IV198708-199505

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main64016-95401iLH8#,9#,YH81..T1,T2,T3198708-199505

sub64016-95415

main64016-95415iLH8#,YH81..T2,T3;LH80,YH81..T1..IV198708-199505

main64016-95415iLH85..T2..IV;LH80..4FC..ST199109-199505

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main64103-37010iLH8#,9#,YH81..TW199309-199505

sub64103-37011

main64103-95403iLH8#,9#,YH81..T1,T2,T3198808-199505

main64103-95408iLH8#,YH81..T1,T2,T3198708-198808

sub64103-95403

sub61267-95400

main64103-95412iLH8#,9#,YH81..TW198708-199309

sub64103-37080

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main64104-37010iLH8#,9#,YH81..TW199309-199505

sub64104-37011

main64104-95403iLH8#,9#,YH81..T1,T2,T3198808-199505

main64104-95410iLH8#,YH81..T1,T2,T3198708-198808

sub64104-95403

sub61268-95400

main64104-95414iLH8#,9#,YH81..TW198708-199309

sub64104-37080

64163ACOVER, BACK CORNER, INNER

main64163-95404iLH8#,YH81198708-198808

main64163-95410-13iLH8#,YH81198808-199109

GRAY,TRIM8#

sub64163-95901

sub64163-95410

main64163-95410-13iLH8#,9#,YH81199109-199505

GRAY,TRIM1#

sub64163-95901

sub64163-95410

9014980014

main90149-80014

9015960058

main90159-60058

9033335002

main90333-35002

9046710061

main90467-10061

9095001029

main90950-01029

9095001454

main90950-01454

9095006001

main90950-06001

9161160814

main91611-60814

31 parts on this diagram · 2 diagrams in section
