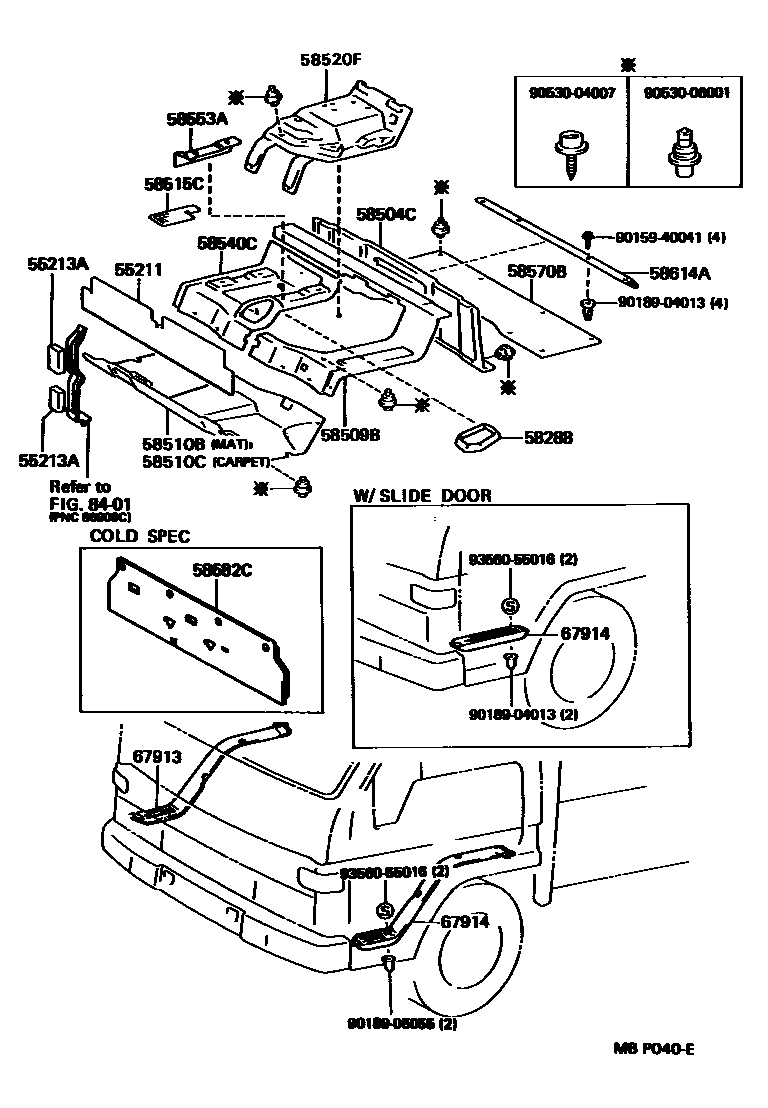

FLOOR MAT & SILENCER PAD

55211SILENCER, FRONT PANEL

main55211-95404iLH8#,9#,YH81198708-199505

55213APAD, DASH PANEL SILENCER

main55213-95400iLH8#,9#,YH81198708-199505

UPPER

main55213-95401iLH8#,9#,YH81198708-199505

LOWER

58288SEAL, SHIFT LEVER BOOT

main58285-95A01iLH80,90..4FC198808-199505

58504CMAT SUB-ASSY, HEADER

main58504-95021-04iLH8#,YH81..TW198708-199109

BLUE,TRIM8#

main58504-95021-B0iLH8#,9#,YH81..TW199109-199505

GRAY,TRIM1#

58509BMAT SUB-ASSY, SEAT FLOOR

main58509-95024-04iLH8#,YH81..TW198708-199109

BLUE,TRIM8#

main58509-95024-B0iLH8#,9#,YH81..TW199109-199505

GRAY,TRIM1#

main58509-95026-04iLH8#,YH81..T1,T2,T3198708-199109

BLUE,TRIM8#

main58509-95026-B0iLH8#,9#,YH81..T1,T2,T3199109-199505

GRAY,TRIM1#

main58509-95027-04iLH80..T1,T2,T3198708-199109

main58509-95027-B0iLH80,90..T1,T2,T3199109-199309

main58509-95028-04iLH8#,YH81..T2,T3;LH80,YH81..T1..IV198708-199109

main58509-95028-B0iLH80..4FC..WT;LH9#,YH81..T2,T3;LH80..5F..(T2,T3);LH85..(T2,T3)..CBU;LH8#,YH81..(T1,T3)..IV199109-199309

main58509-95029-04iLH80..T2,T3;LH80..T1..IV198708-199109

58510BMAT, FRONT FLOOR, FRONT

main58510-95038-04iLH80,YH81198708-198803

BLUE,TRIM8#

main58510-95A03-04iLH85198710-198803

BLUE,TRIM8#

main58510-95A09-04iLH80,YH81198803-199109

BLUE,TRIM8#

main58510-95A09-B0iLH80,90,YH81199109-199505

GRAY,TRIM1#

main58510-95A10-04iLH85198803-199109

BLUE,TRIM8#

main58510-95A10-B1iLH85,95199109-199505

GRAY,TRIM1#

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-95A05-04iLH85..T2,T3198710-199109

main58510-95A05-B1iLH95..T2,T3;LH85..T3..IV;LH85..(T2,T3)..CBU199109-199505

main58510-95A06-04iLH80,YH81..T1..IV;LH80,YH81..5F..(T2,T3)198808-199109

main58510-95A06-B1iLH80,YH81..T1..IV;LH80,90,YH81..5F..(T2,T3)199109-199309

main58510-95A07-04iLH80..T1..IV;LH80..5F..(T2,T3)198708-199109

main58510-95A08-04iLH80..4FC198708-198808

main58510-95A11-04iLH80..4FC198808-199109

main58510-95A11-B0iLH90..4FC;LH80..4FC..WT199109-199505

main58510-95A12-04iLH80..4FC198808-199109

58515CMAT, FRONT FLOOR, REAR NO.1

main58515-95404-04iLH8#,YH81198708-199109

BLUE,TRIM8#

main58515-95404-B0iLH8#,9#,YH81199109-199505

GRAY,TRIM1#

58520FMAT ASSY, ENGINE COVER

main58520-95010-04iLH8#,YH81198708-199109

BLUE,TRIM8#

main58520-95010-B0iLH8#,9#,YH81199109-199505

GRAY,TRIM1#

main58520-95017-04iLH8#,YH81..T2,T3;LH80,YH81..T1..IV198708-199109

main58520-95017-B0iLH85..T3..IV;LH80..4FC..WT;LH85..(T2,T3)..CBU;LH9#,YH81..T1,T2,T3;LH80..5F..(T1,T2,T3)199309-199505

58540CMAT ASSY, FLOOR, REAR

main58540-95017-04iLH80,YH81..5F198708-199109

BLUE,TRIM8#

main58540-95017-B0iLH80,90,YH81..5F199109-199505

GRAY,TRIM1#

main58540-95019-04iLH80,YH81..T1..IV;LH80,YH81..5F..(T2,T3)198708-199109

main58540-95019-B0iLH80,90,YH81..5F..(T1,T2,T3)199309-199505

main58540-95A18-04iLH85198710-199109

BLUE,TRIM8#

main58540-95A18-B0iLH85,95199109-199505

GRAY,TRIM1#

main58540-95A19-04iLH80..4FC198708-198808

main58540-95A20-04iLH80..4FC198708-198808

BLUE,TRIM8#

main58540-95A21-04iLH85..T2,T3198710-199109

main58540-95A21-B0iLH95..T2,T3;LH85..T3..IV;LH85..(T2,T3)..CBU199109-199505

main58540-95A22-04iLH80..4FC198808-199109

BLUE,TRIM8#

main58540-95A22-B0iLH80,90..4FC199109-199505

GRAY,TRIM1#

main58540-95A23-04iLH80..4FC198808-199109

main58540-95A23-B0iLH90..4FC;LH80..4FC..WT199109-199505

58553ACARPET, FLOOR REAR SEAT SIDE

main58553-95010-04iLH8#,YH81..T2,T3;LH80,YH81..T1..IV198708-199109

BLUE,TRIM8#

main58553-95010-B1iLH80..4FC..WT;LH9#,YH81..T2,T3;LH80..5F..(T2,T3);LH85..(T2,T3)..CBU;LH8#,YH81..(T1,T3)..IV199109-199309

GRAY,TRIM1#

58570BMAT ASSY, REAR FLOOR

main58581-95406-04iLH80,YH81..TW198708-199109

BLUE,TRIM8#

main58581-95406-B0iLH80,90,YH81..TW199109-199505

GRAY,TRIM1#

main58581-95407-04iLH80,YH81..TW198708-199109

main58581-95407-B0iLH85,95..TW199109-199505

58582CMAT, REAR FLOOR, REAR

main58582-95400-04iLH80,YH81..TW198708-199109

BLUE,TRIM8#

main58582-95400-B0iLH85,95..TW199109-199505

GRAY,TRIM1#

58614APLATE, MAT SET, NO.4

main58614-95A01-04iLH8#,YH81..TW198708-199109

BLUE,TRIM8#

main58614-95A01-B0iLH8#,9#,YH81..TW199109-199505

GRAY,TRIM1#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-95403-04iLH8#,YH81198708-199109

BLUE,TRIM8#

main67913-95403-B0iLH8#,9#,YH81199109-199505

GRAY,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-95402-04iLH80..T1,T2,T3198708-199109

main67914-95402-B0iLH80,90..T1,T2,T3199109-199309

main67914-95403-04iLH8#,YH81198708-199109

BLUE,TRIM8#

main67914-95403-B0iLH8#,9#,YH81199109-199505

GRAY,TRIM1#

8401

9015940041

main90159-40041

9018904013

main90189-04013

9018905055

main90189-05055

9053004007

main90530-04007

9053006001

main90530-06001

9356055016

main93560-55016

23 parts on this diagram · 1 diagram in section
